Engine Controls

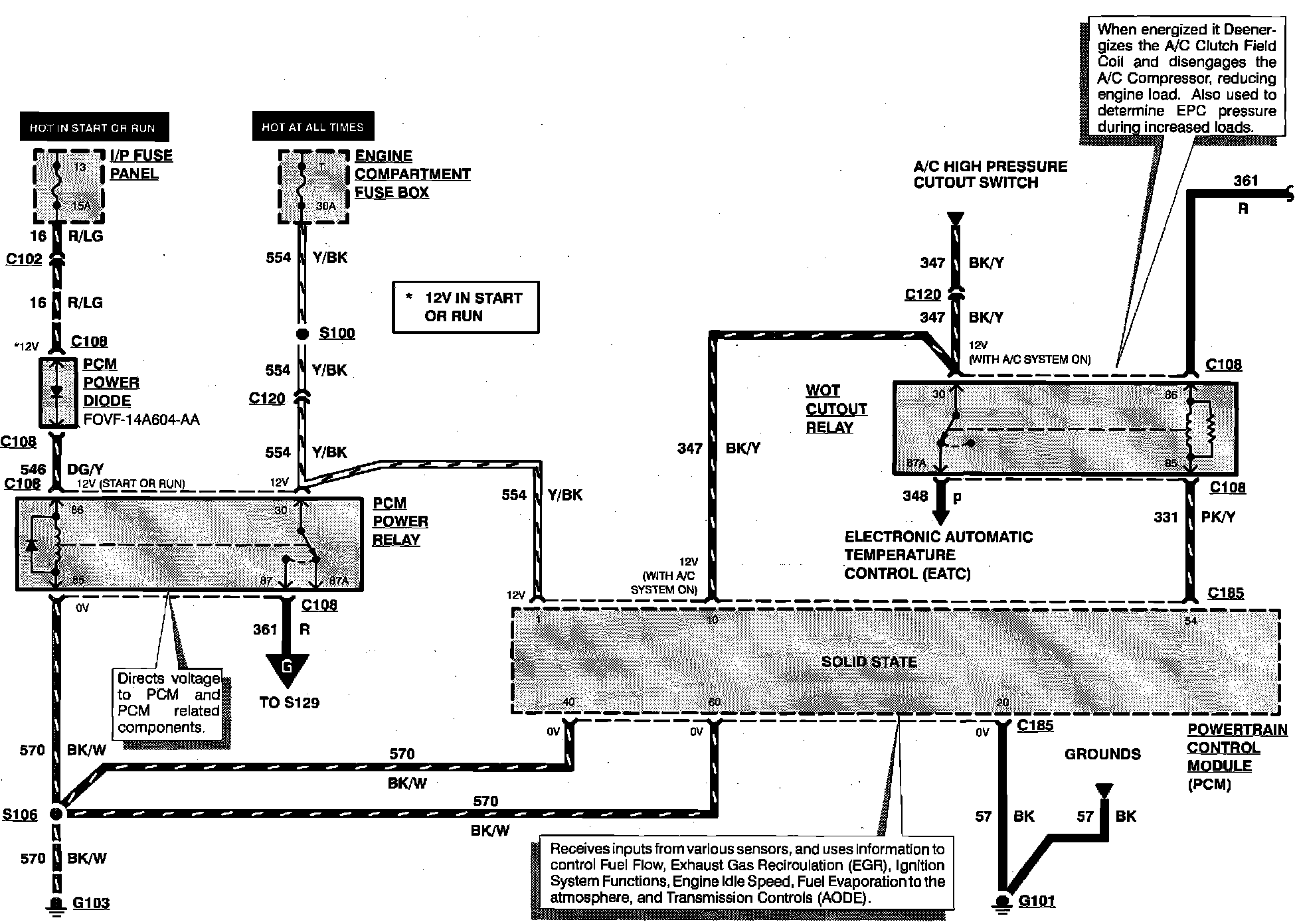

Engine Control:

PCM POWER DIODE
PCM POWER RELAY
WOT CUTOUT RELAY

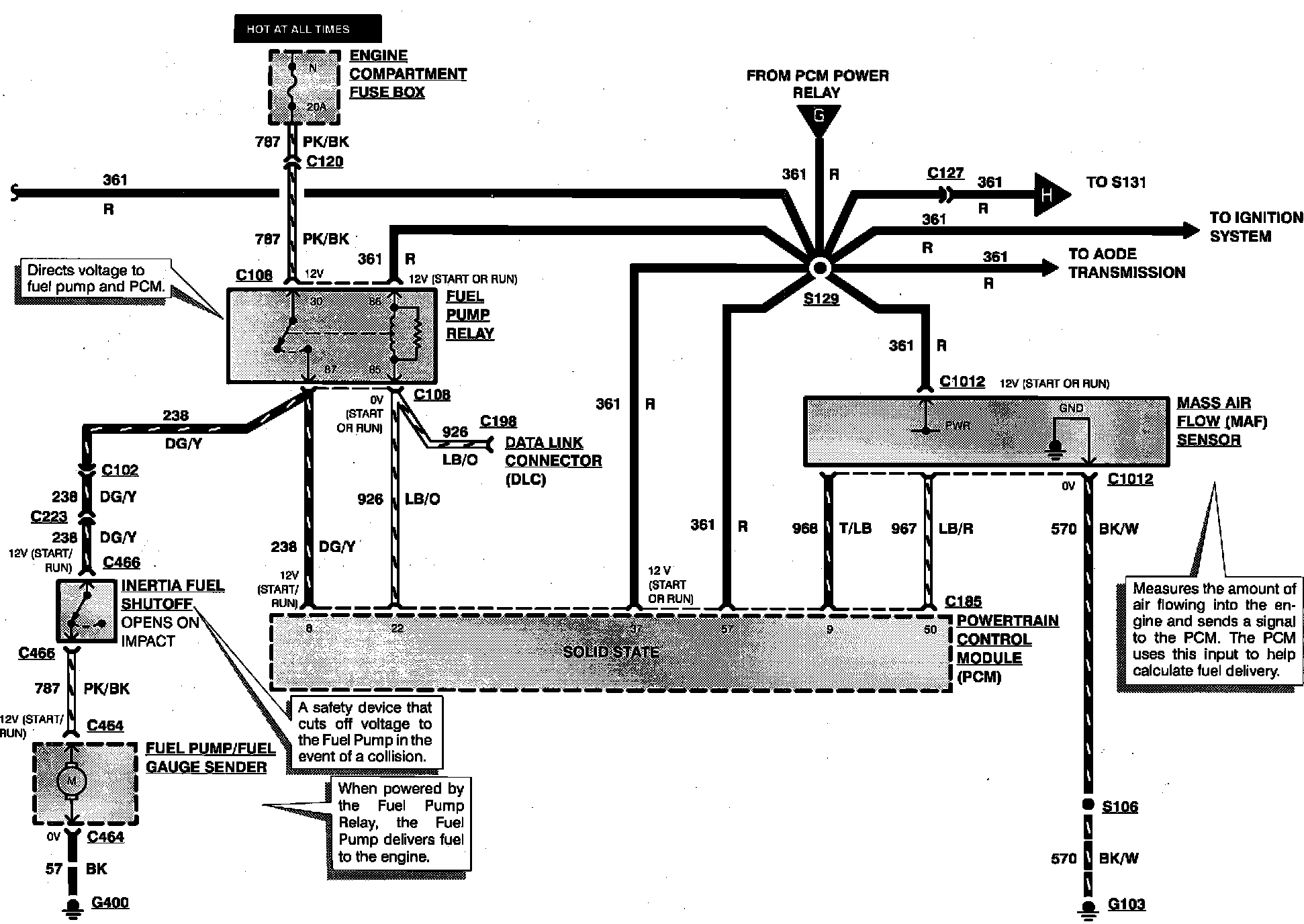

Engine Controls:

FUEL PUMP/FUEL GAUGE SENDER
FUEL PUMP RELAY
INERTIA FUEL SHUTOFF
MASS AIR FLOW (MAF) SENSOR

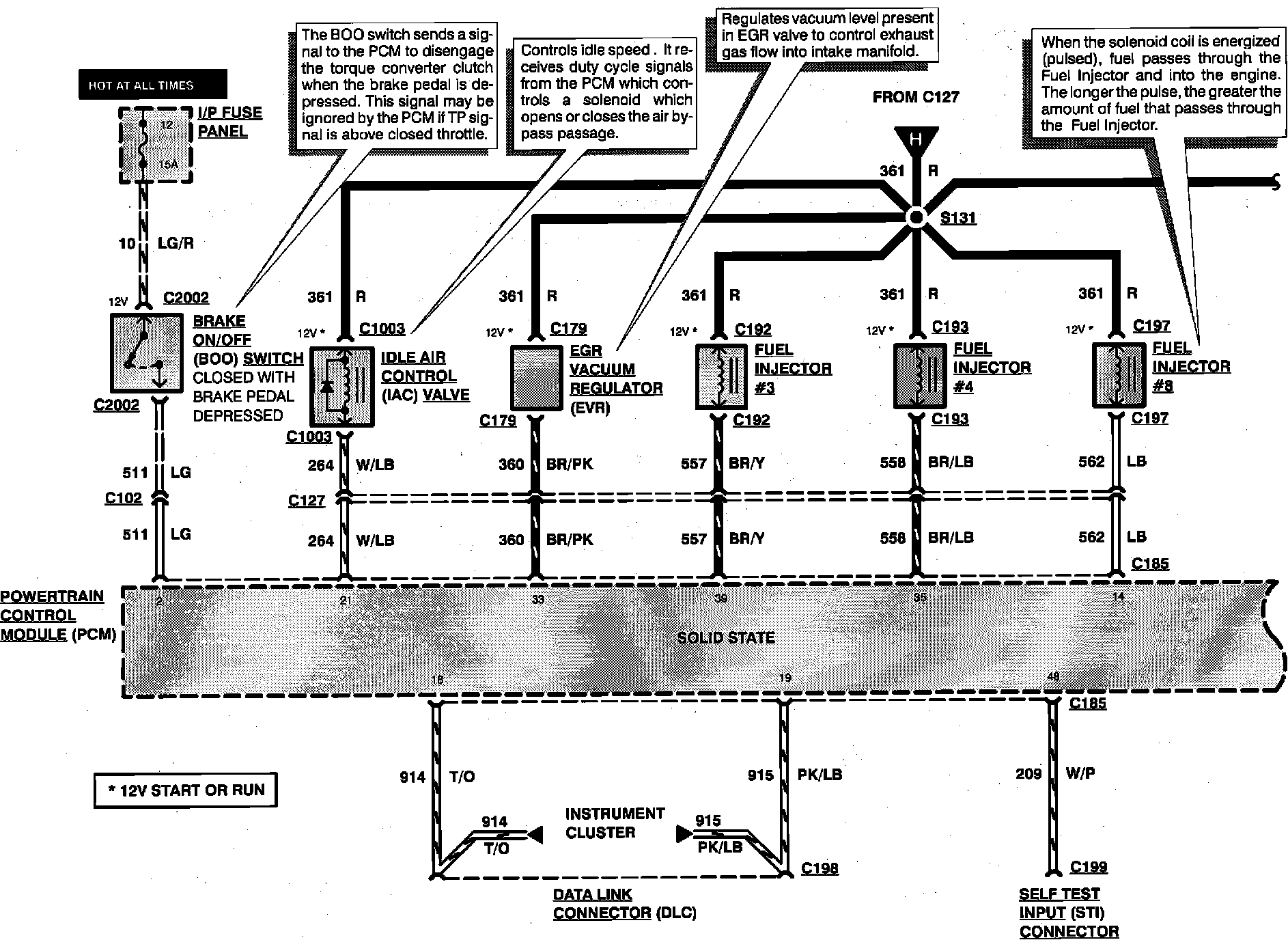

Engine Controls:

BRAKE ON/OFF (BOO) SWITCH
EGR VACUUM REGULATOR (EVR)
FUEL INJECTOR #3
FUEL INJECTOR #4
FUEL INJECTOR #8
IDLE AIR CONTROL (IAC) VALVE

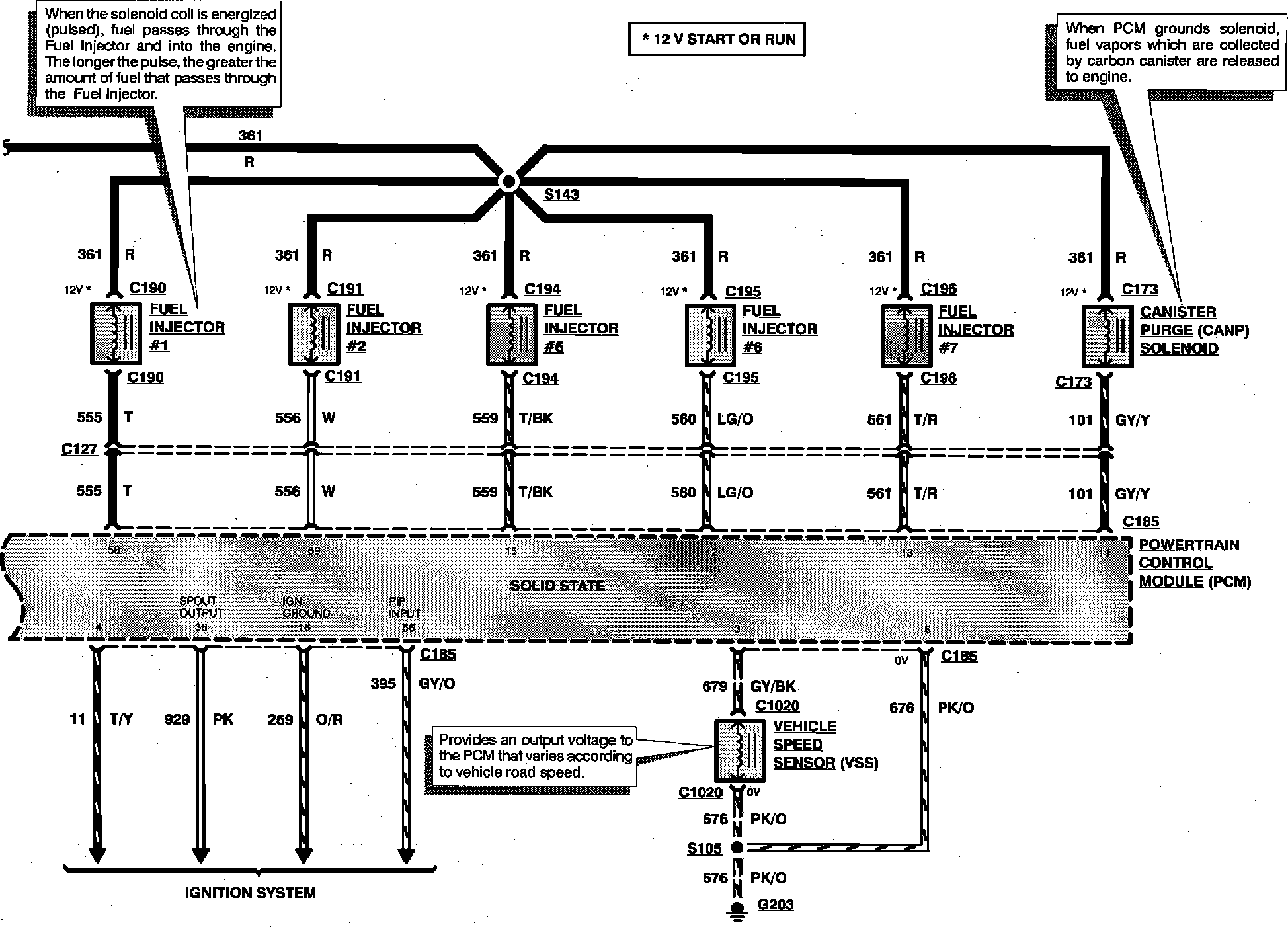

Engine Controls:

CANISTER PURGE (CANP) SOLENOID
FUEL INJECTOR #1
FUEL INJECTOR #2
FUEL INJECTOR #5
FUEL INJECTOR #6
FUEL INJECTOR #7
VEHICLE SPEED SENSOR (VSS)

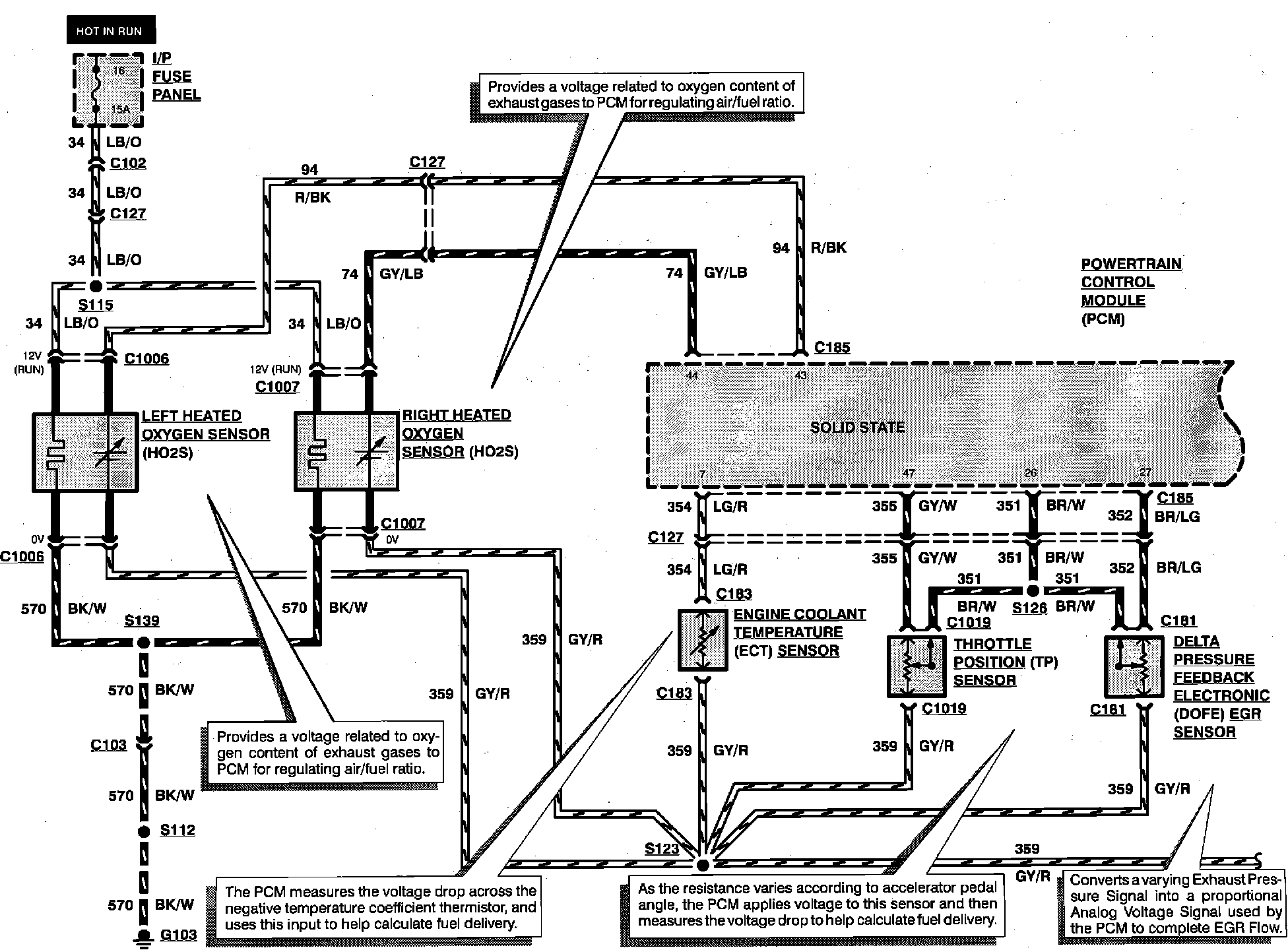

Engine Controls:

DELTA PRESSURE FEEDBACK ELECTRONIC (DPFE) EGR SENSOR
ENGINE COOLANT TEMPERATURE (ECT) SENSOR
LEFT HEATED OXYGEN SENSOR (HO2S)
RIGHT HEATED OXYGEN SENSOR (HO2S)
THROTTLE POSITION (TP) SENSOR

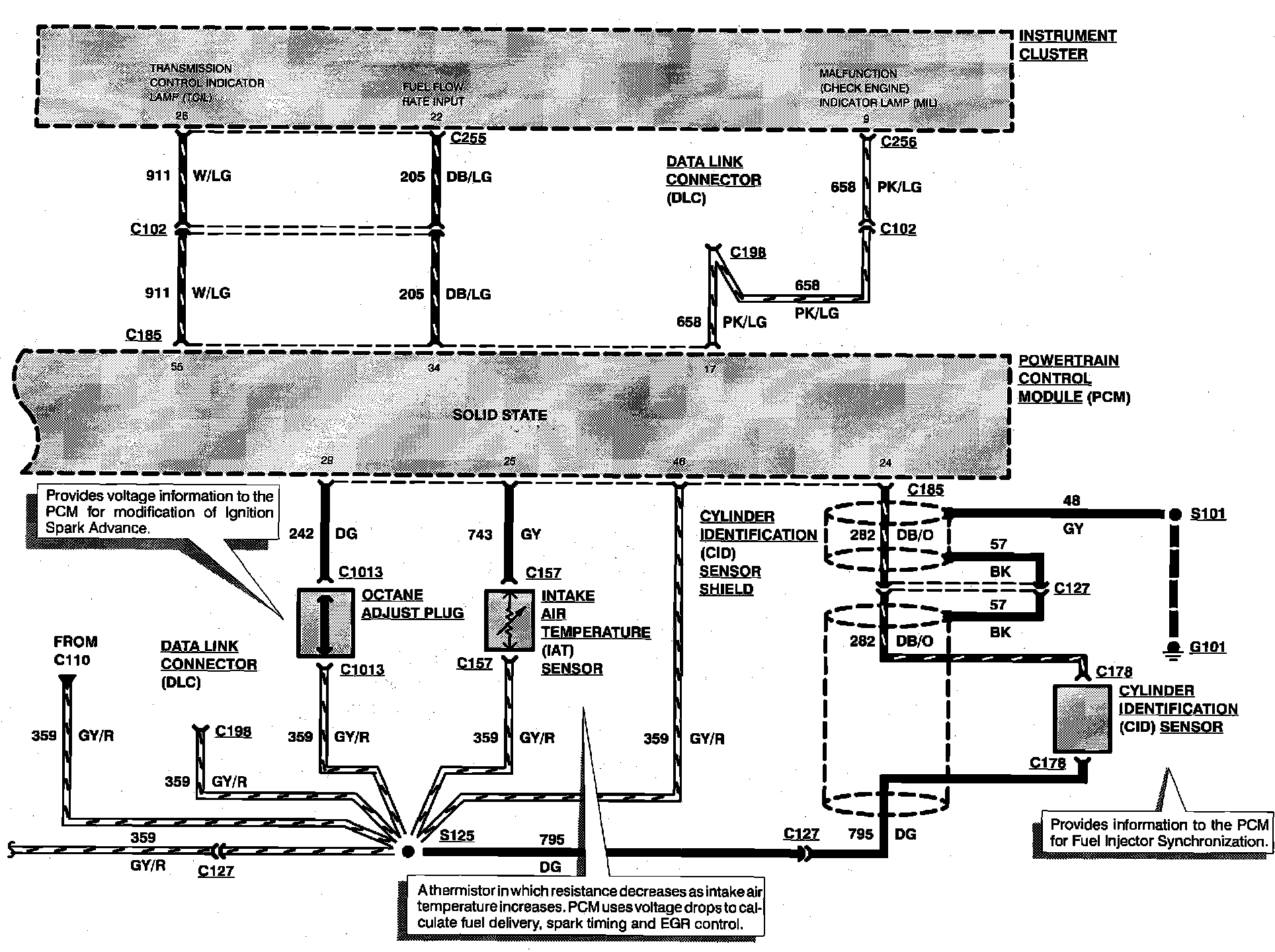

Engine Controls:

CYLINDER IDENTIFICATION (CID) SENSOR
INTAKE AIR TEMPERATURE (IAT) SENSOR
OCTANE ADJUST PLUG
