Home >> Lincoln >> 1996 >> Continental V8-4.6L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Power Seat Switch >> Lumbar Switch >> Left Front

Left Front

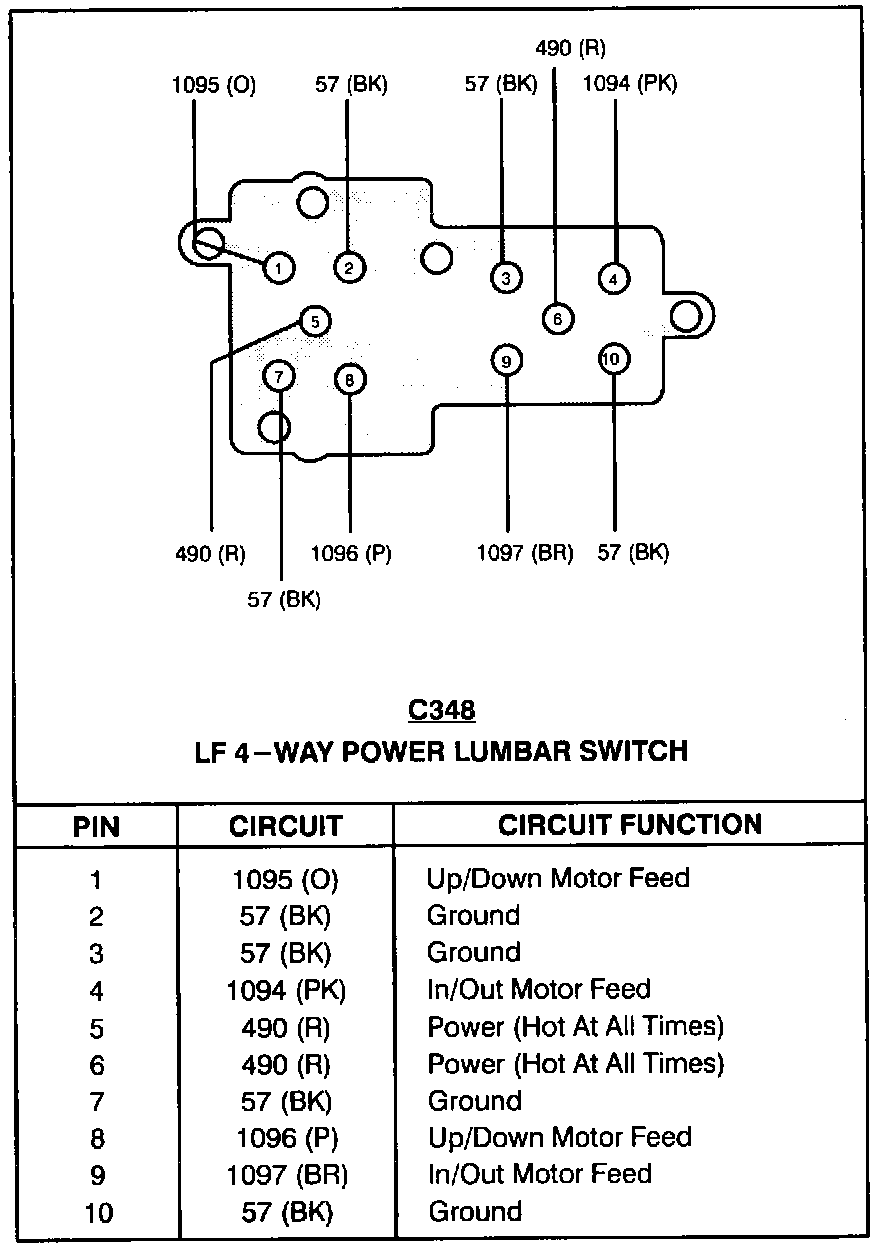

LF 4-Way Power Lumbar Switch:
