Fuse 14

Fuse 14 - protects the following circuits:
^ RF 4way Power Lumbar Switch
^ RF Seat Control Switch
^ RF Heated seat Module

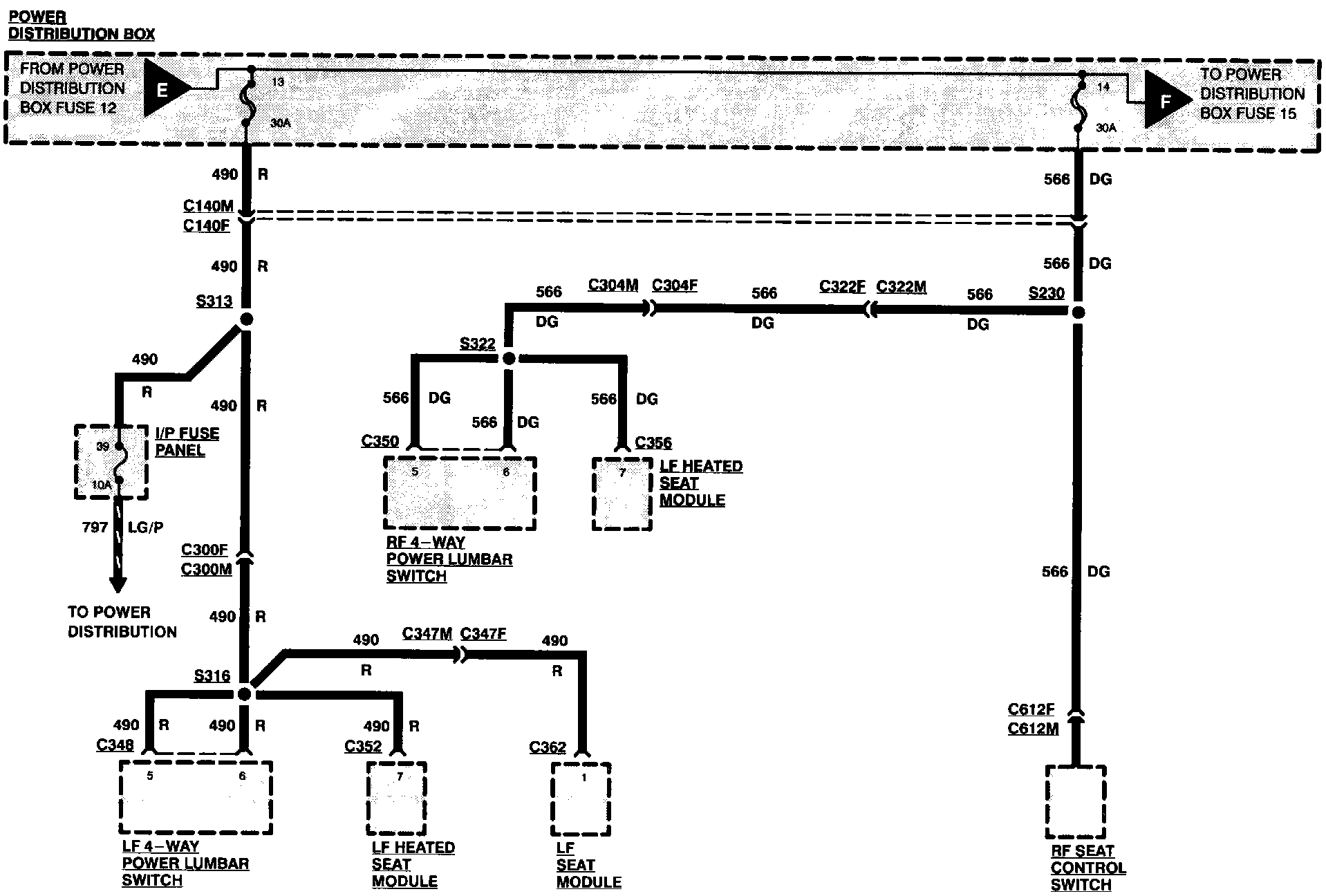

Power Distribution:




Power Distribution:
