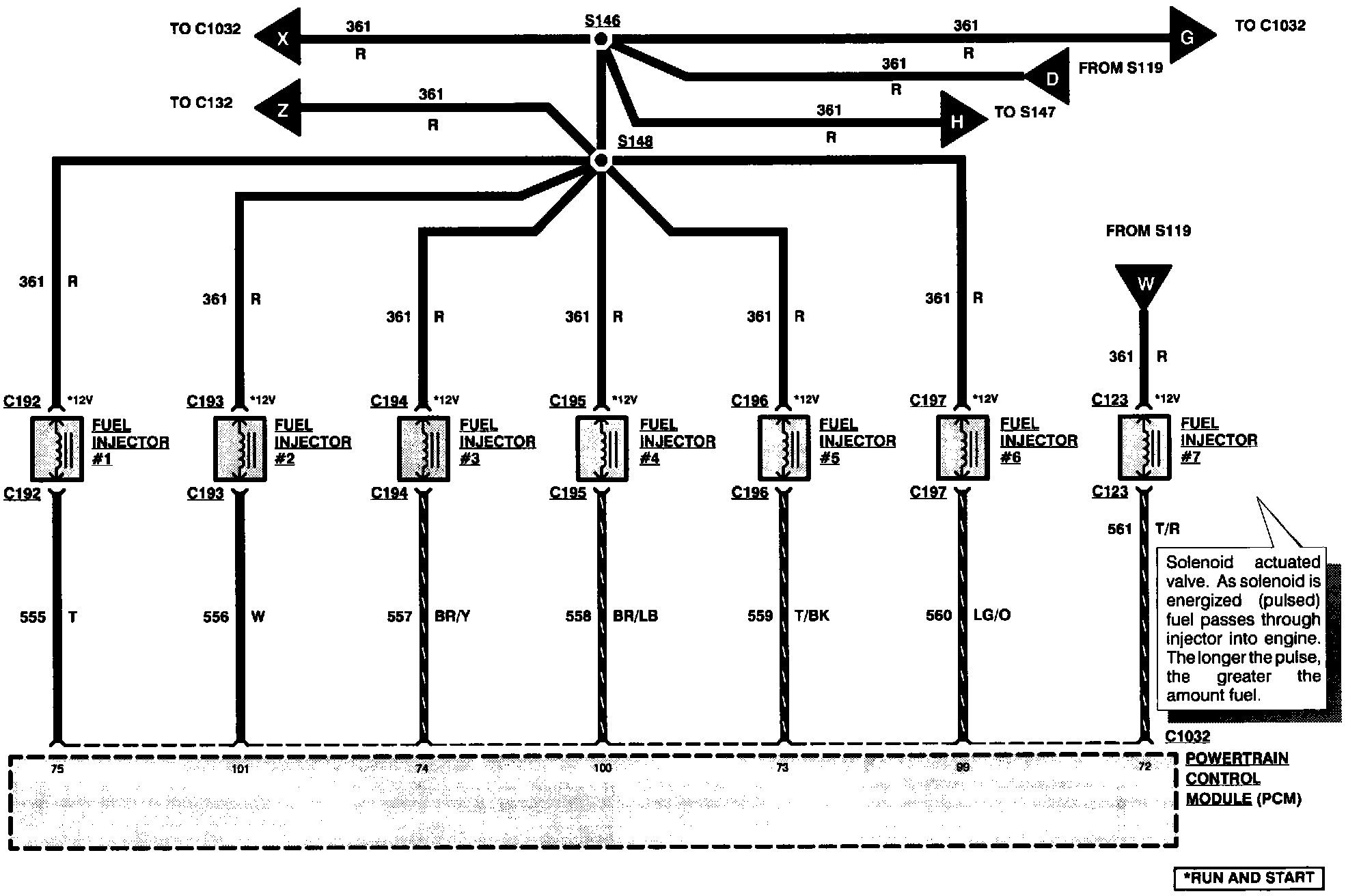

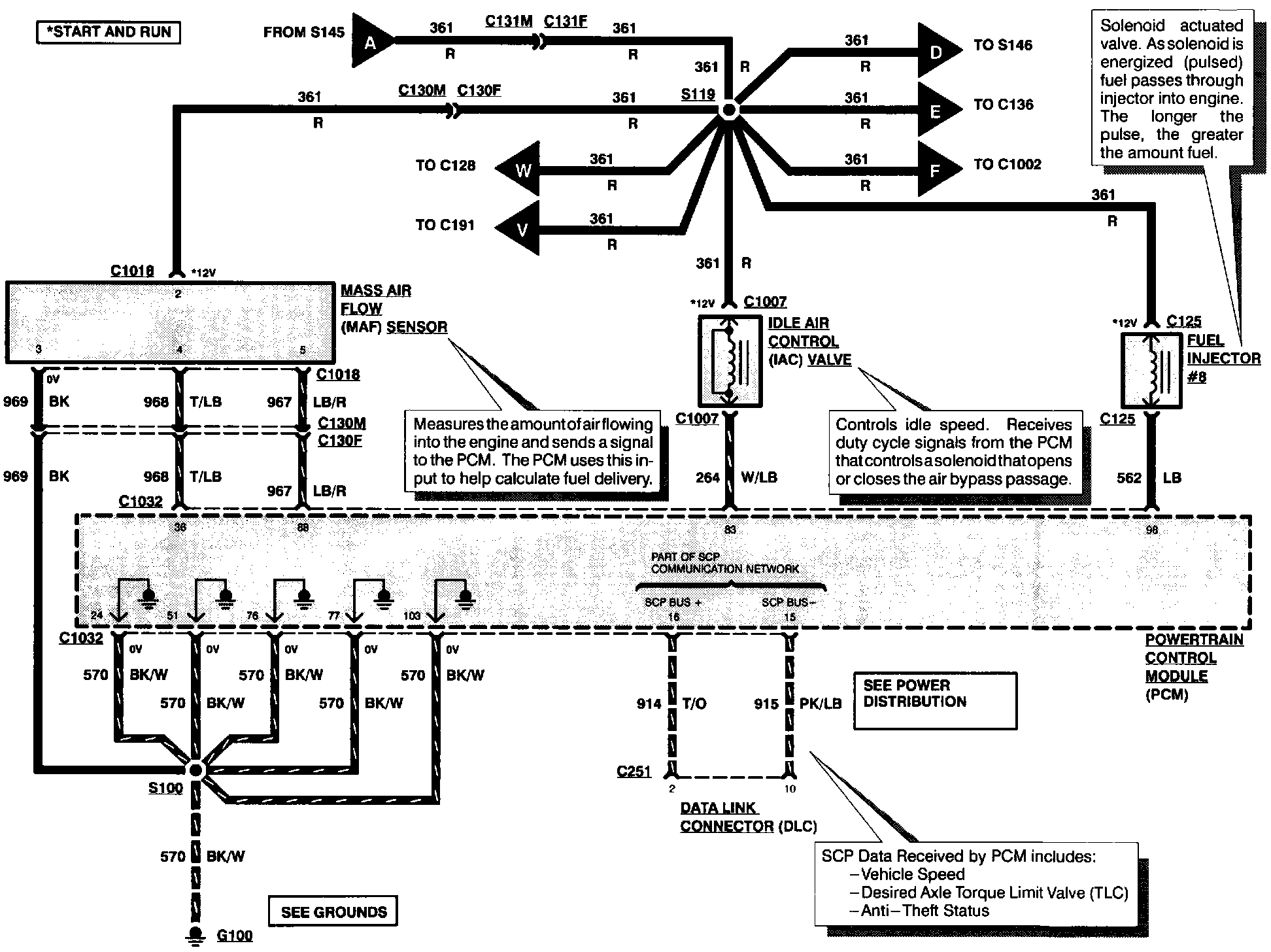

System Diagram

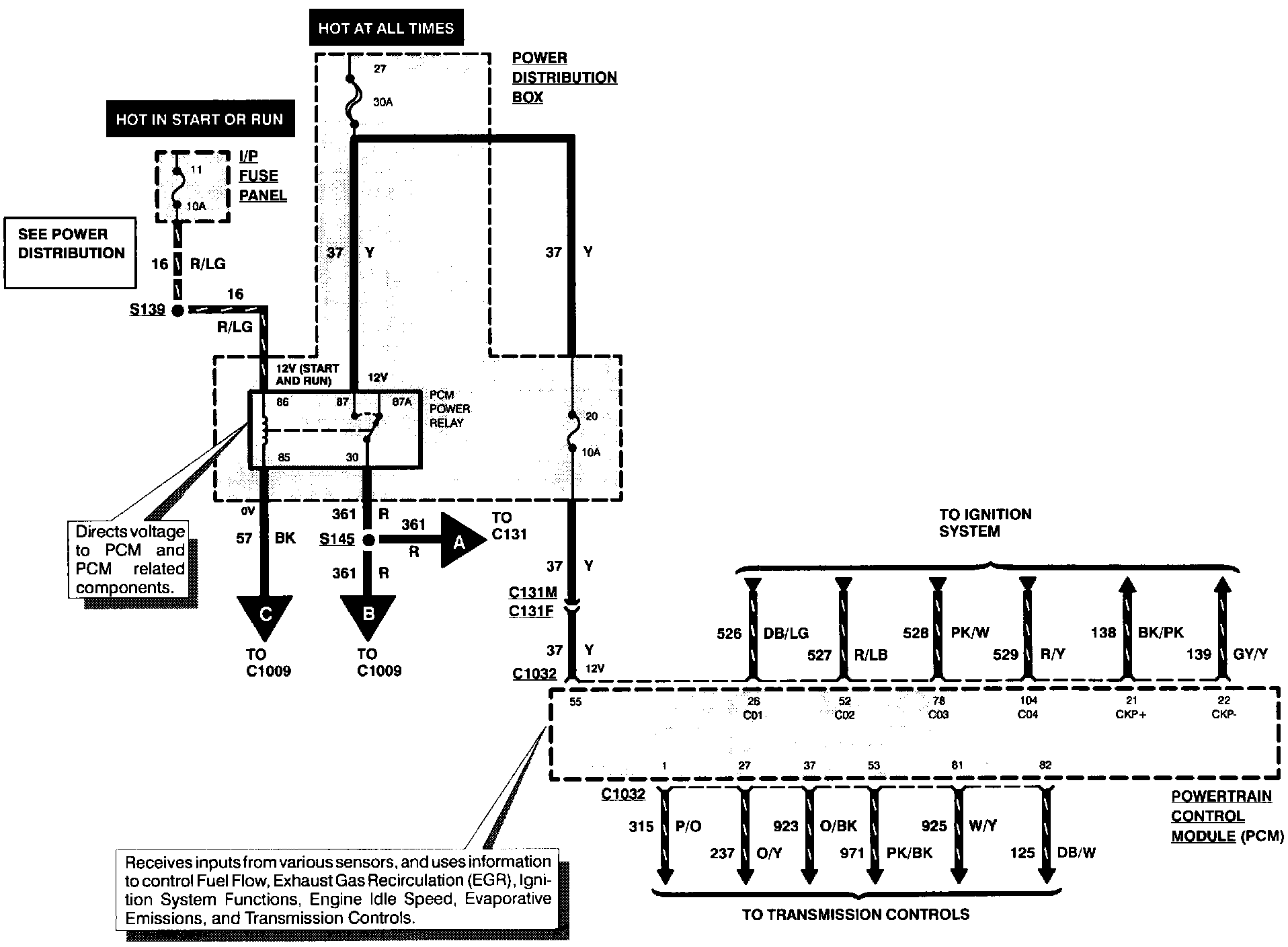

Engine Controls (Part 1 Of 12):

PCM POWER RELAY

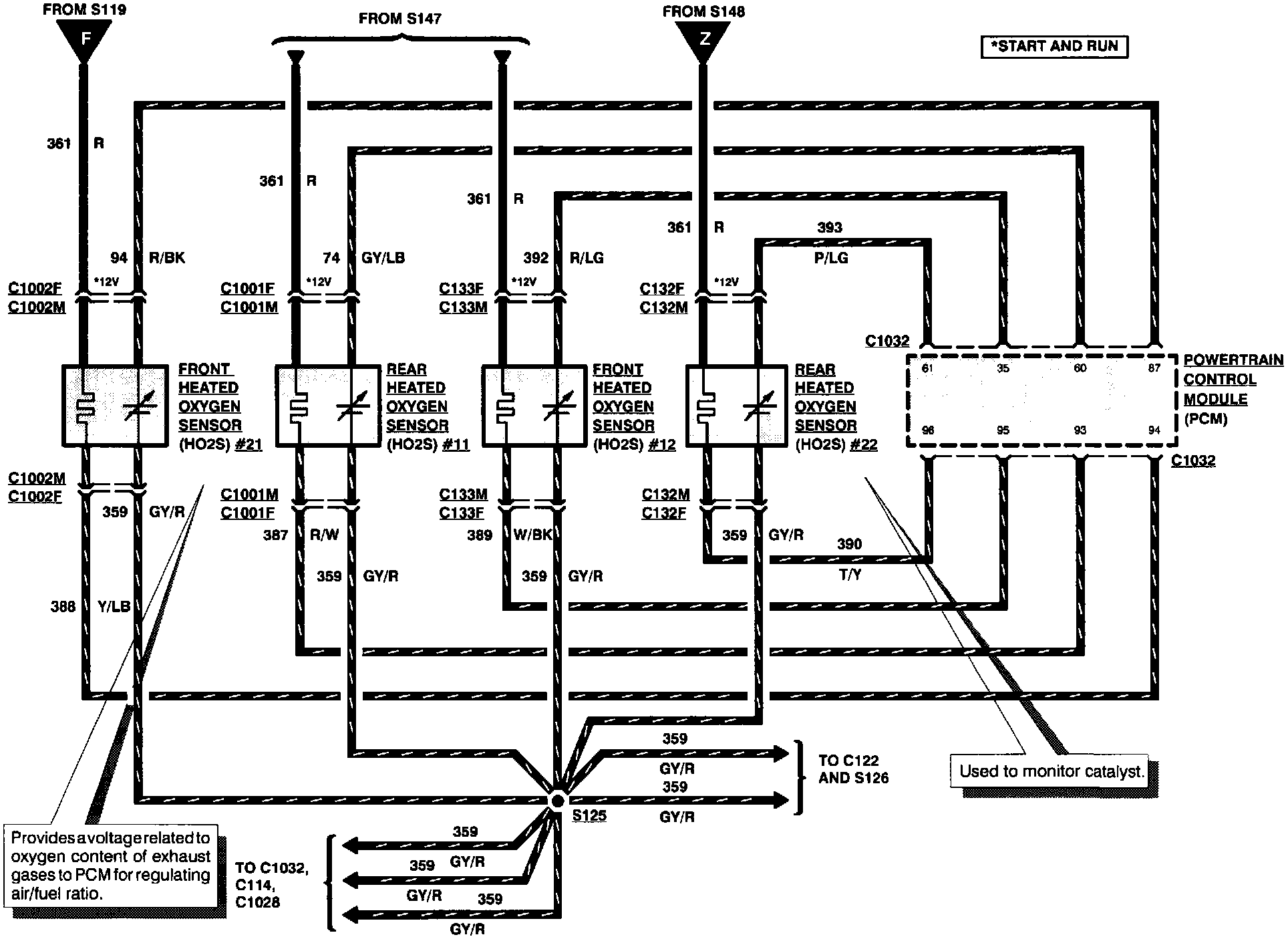

Engine Controls (Part 5 Of 12):

FRONT HEATED OXYGEN SENSOR #12
FRONT HEATED OXYGEN SENSOR #21
REAR HEATED OXYGEN SENSOR #11
REAR HEATED OXYGEN SENSOR #22

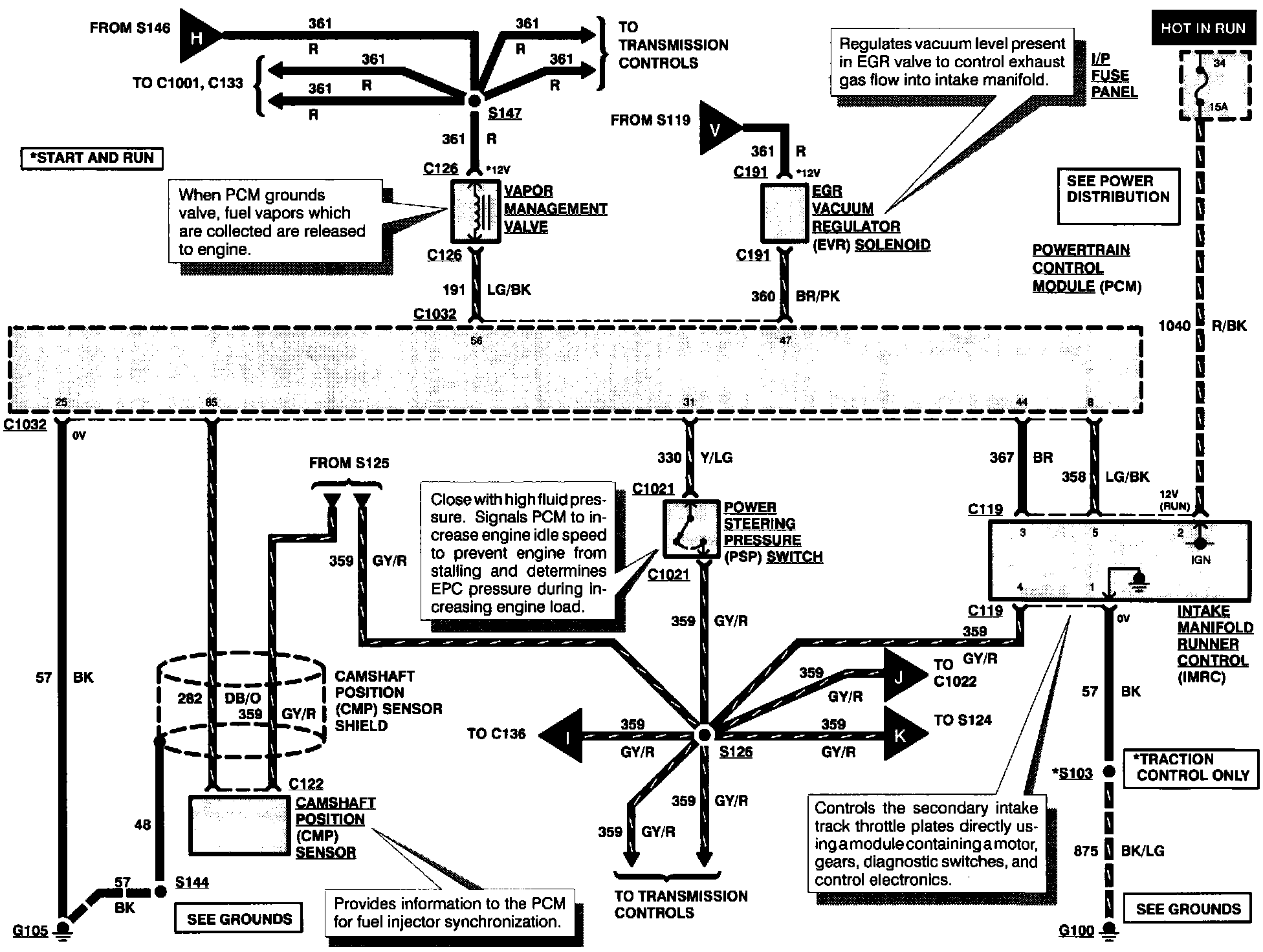

Engine Controls (Part 6 Of 12):

CAMSHAFT POSITION SENSOR
EGR VACUUM REGULATOR SOLENOID
INTAKE MANIFOLD RUNNER CONTROL
POWER STEERING PRESSURE SWITCH
VAPOR MANAGEMENT VALVE

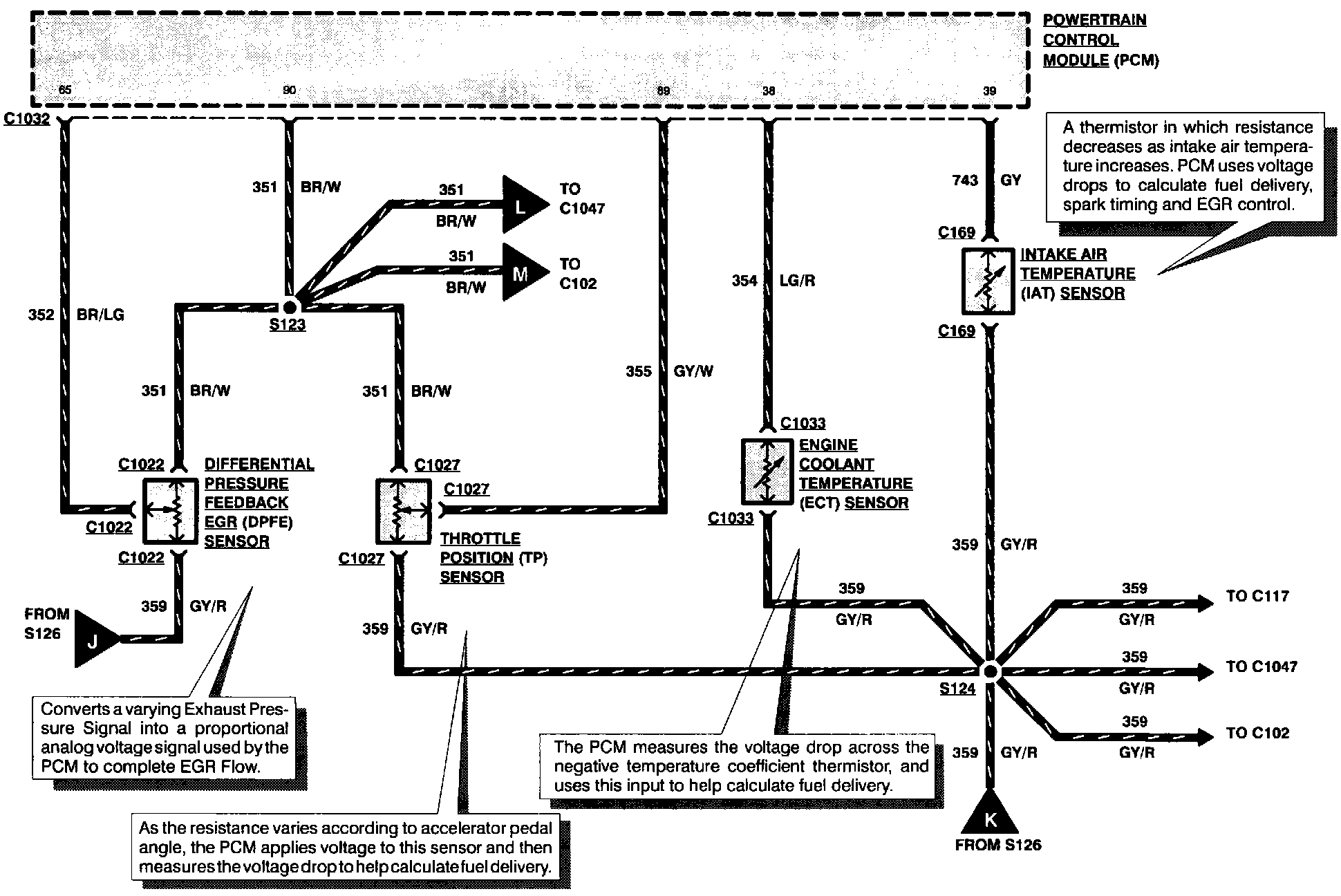

Engine Controls (Part 7 Of 12):

ENGINE COOLANT TEMPERATURE SENSOR
DIFFERENTIAL PRESSURE FEEDBACK EGR SENSOR
INTAKE AIR TEMPERATURE SENSOR
THROTTLE POSITION SENSOR

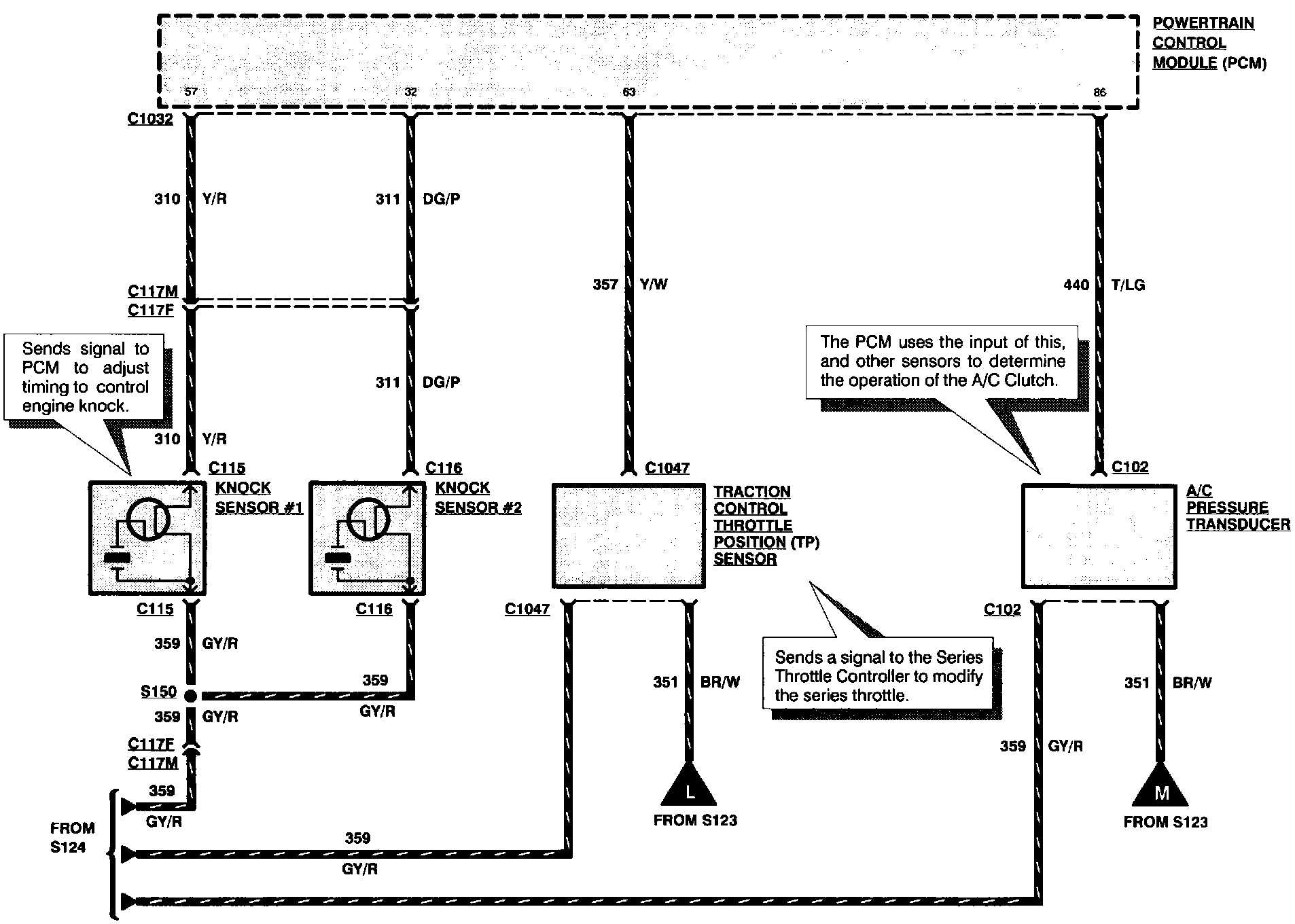

Engine Controls (Part 8 Of 12):

A/C PRESSURE TRANSDUCER
KNOCK SENSOR #1
KNOCK SENSOR #2

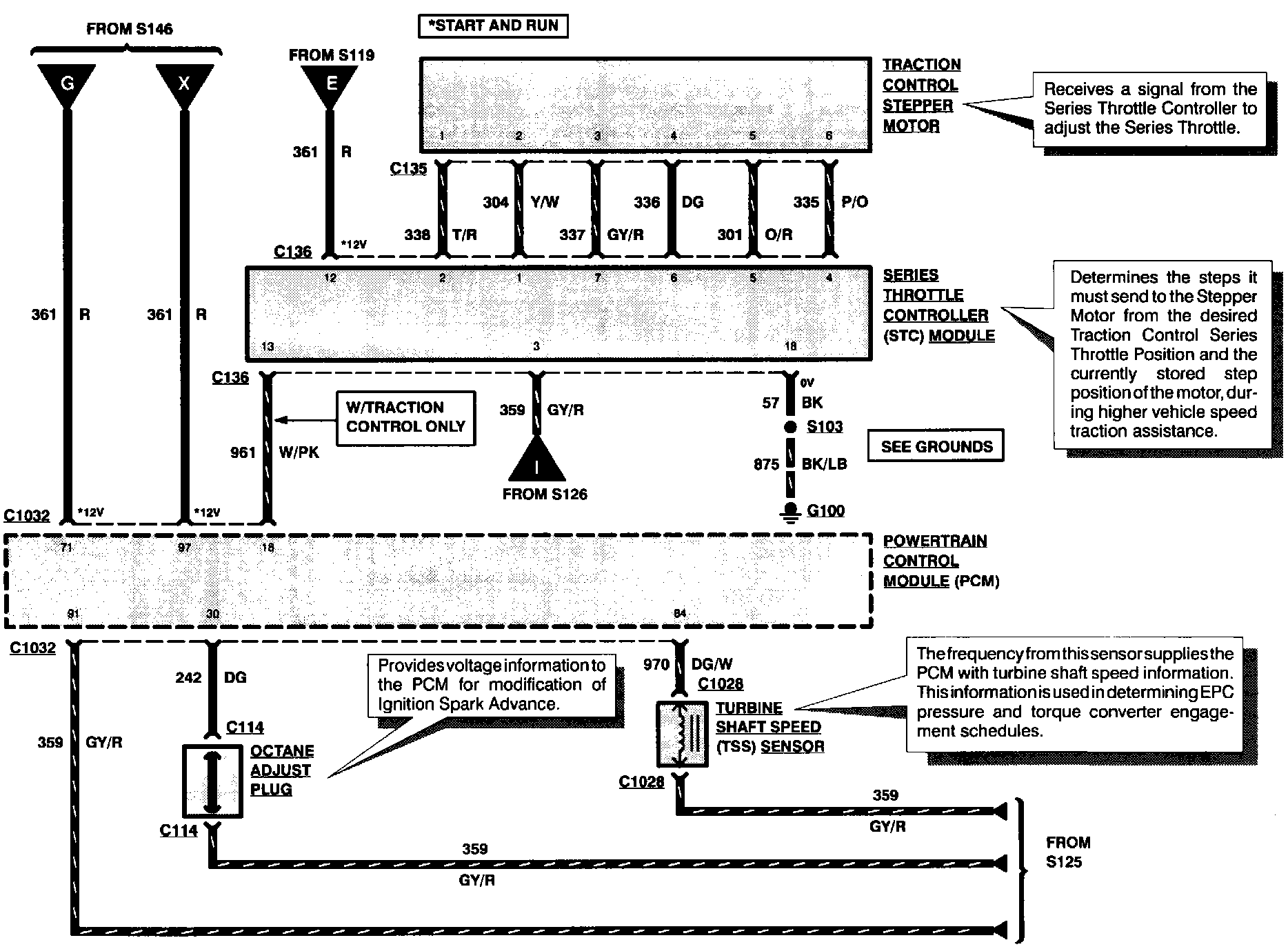

TRACTION CONTROL THROTTLE POSITION SENSOR

Engine Controls (Part 9 Of 12):

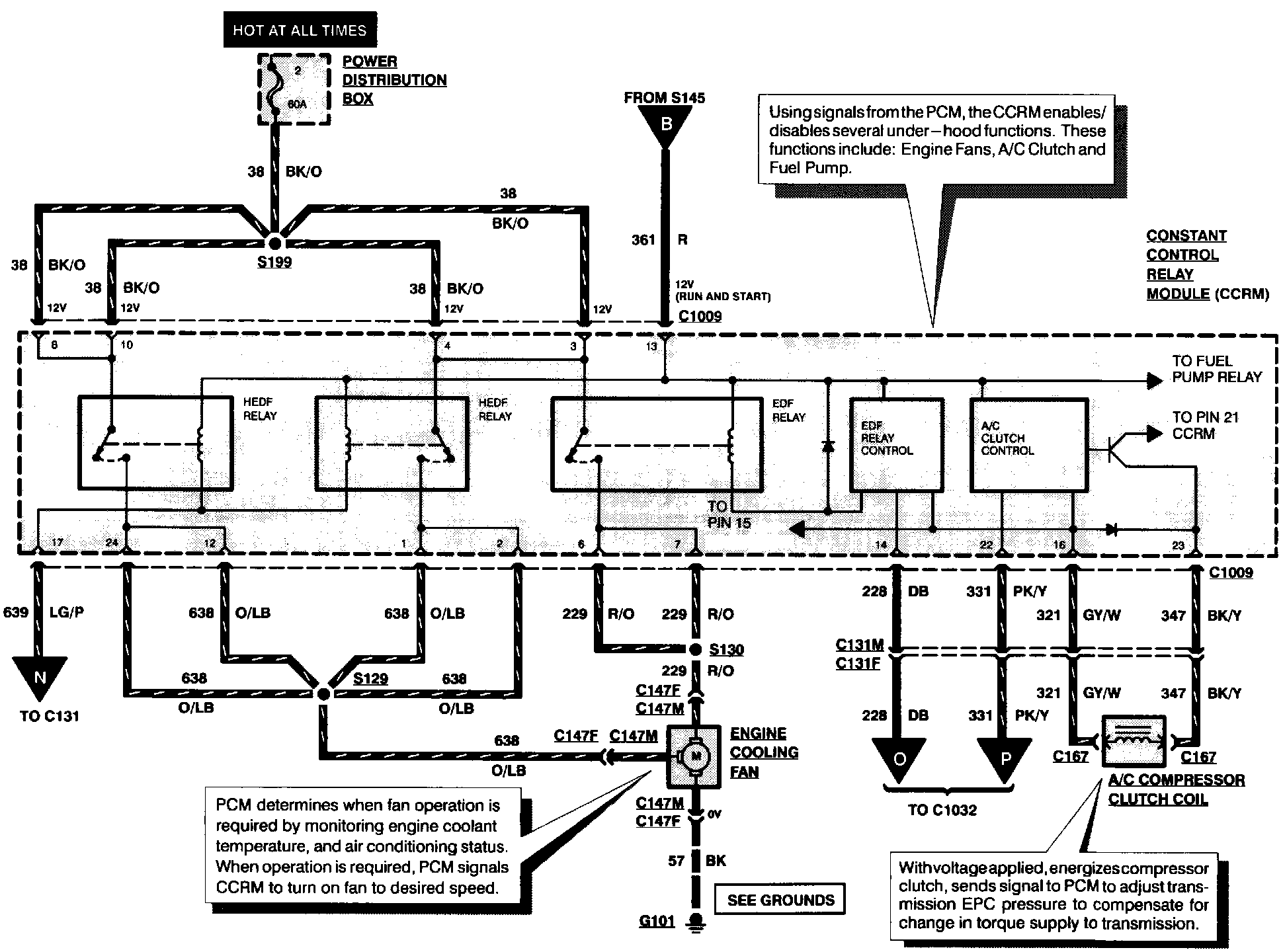

A/C CLUTCH CONTROL
A/C COMPRESSOR CLUTCH COIL
ELECTRO-DRIVE FAN RELAY
ELECTRO-DRIVE FAN RELAY CONTROL
ENGINE COOLING FAN
HIGH SPEED ELECTRO-DRIVE FAN RELAY

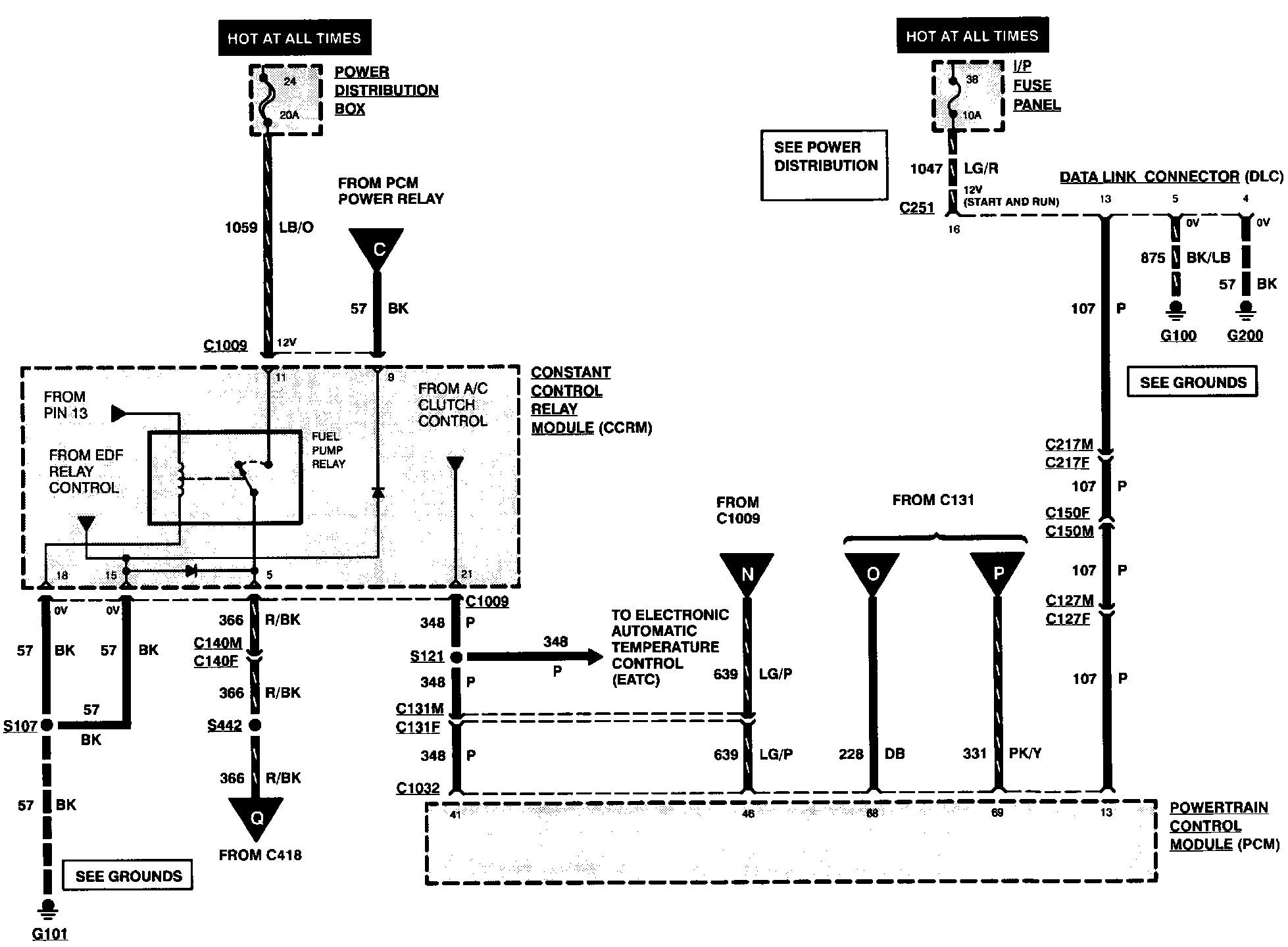

Engine Controls (Part 10 Of 12):

FUEL PUMP RELAY

Engine Controls (Part 11 Of 12):

FUEL PUMP/FUEL PUMP GAUGE SENDER
[1][2]FUEL PUMP MODULE
INERTIA FUEL SHUTOFF SWITCH

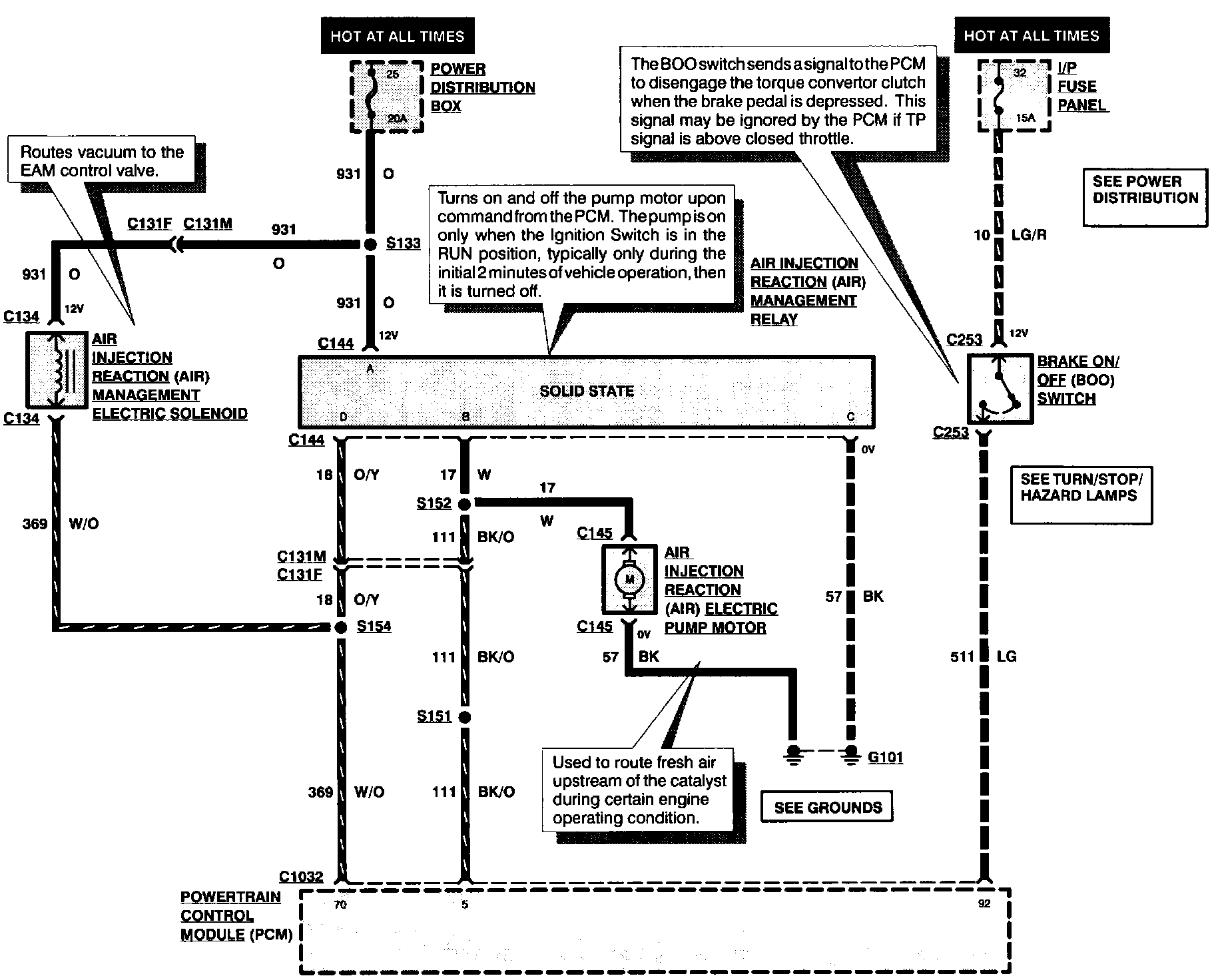

Engine Controls (Part 12 Of 12):

AIR INJECTION REACTION ELECTRIC PUMP MOTOR
AIR INJECTION REACTION MANAGEMENT RELAY
BRAKE ON/OFF SWITCH
ELECTRIC AIR INJECTION REACTION MANAGEMENT ELECTRIC SOLENOID
SOLID STATE
