Operation CHARM
: Car repair manuals for everyone.
Home
>>
Lincoln
>>
1996
>>
Mark VIII V8-4.6L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Cooling System
Cooling System

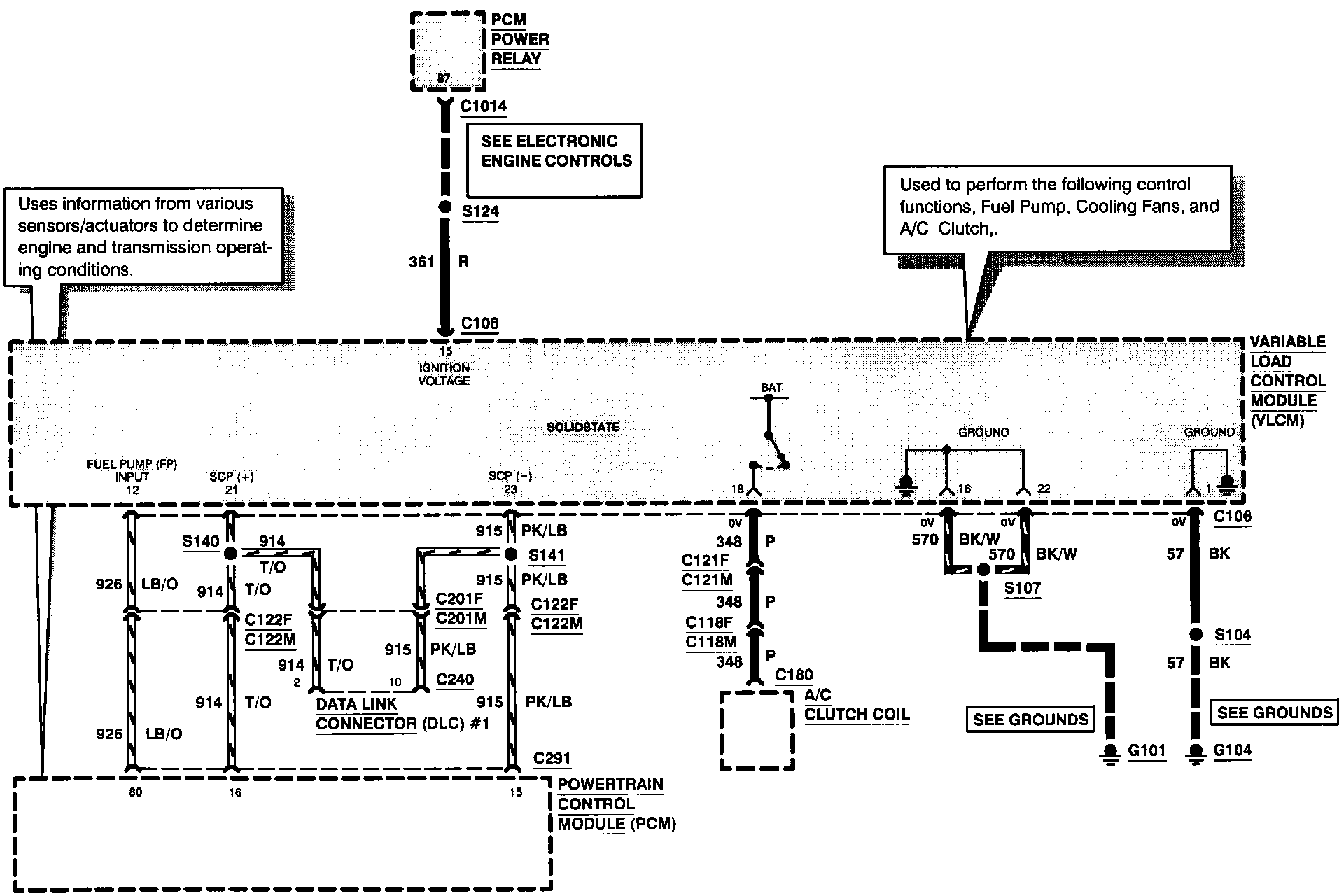

Schematic:

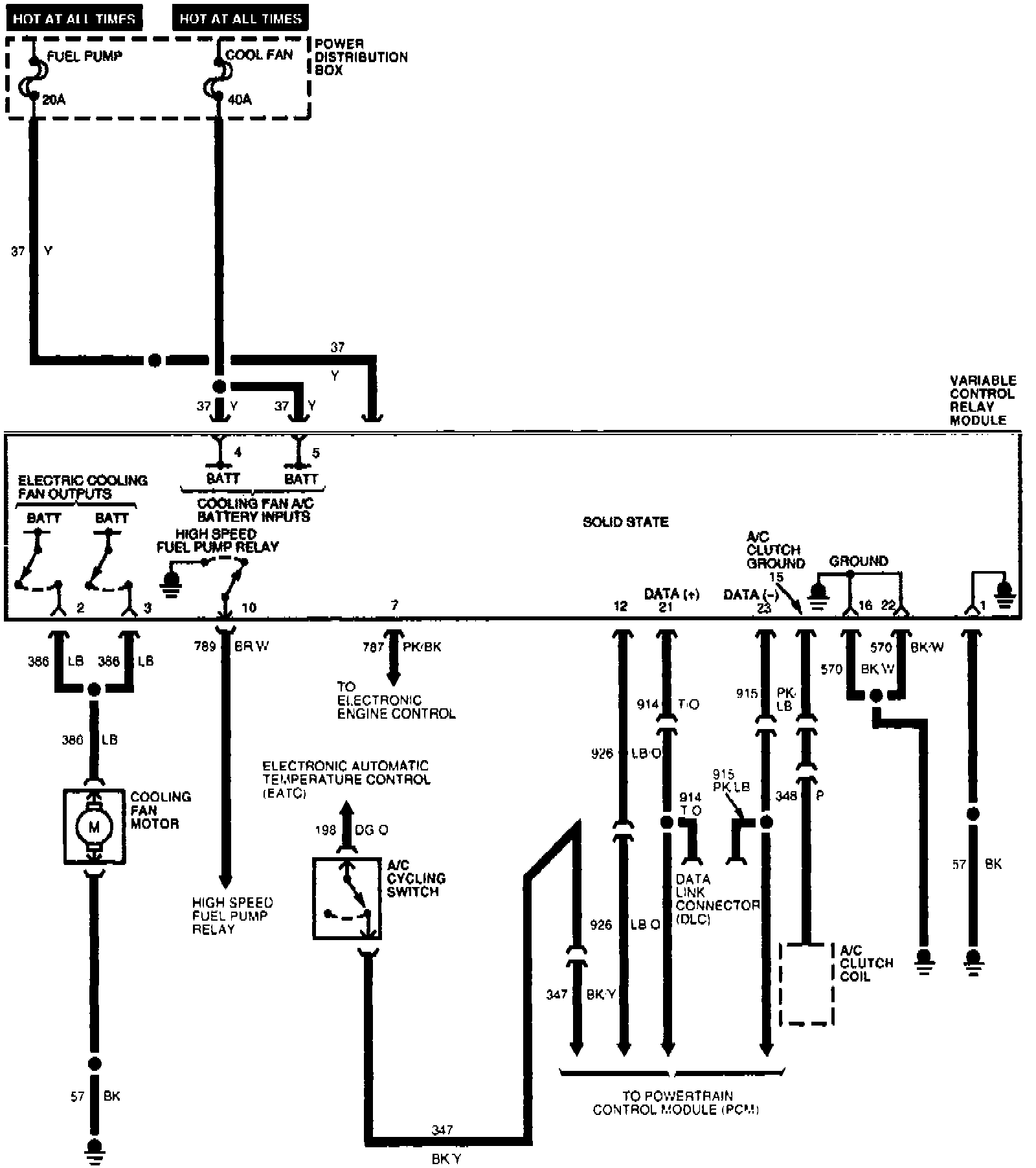

Cooling Fans (Part 1 Of 2):

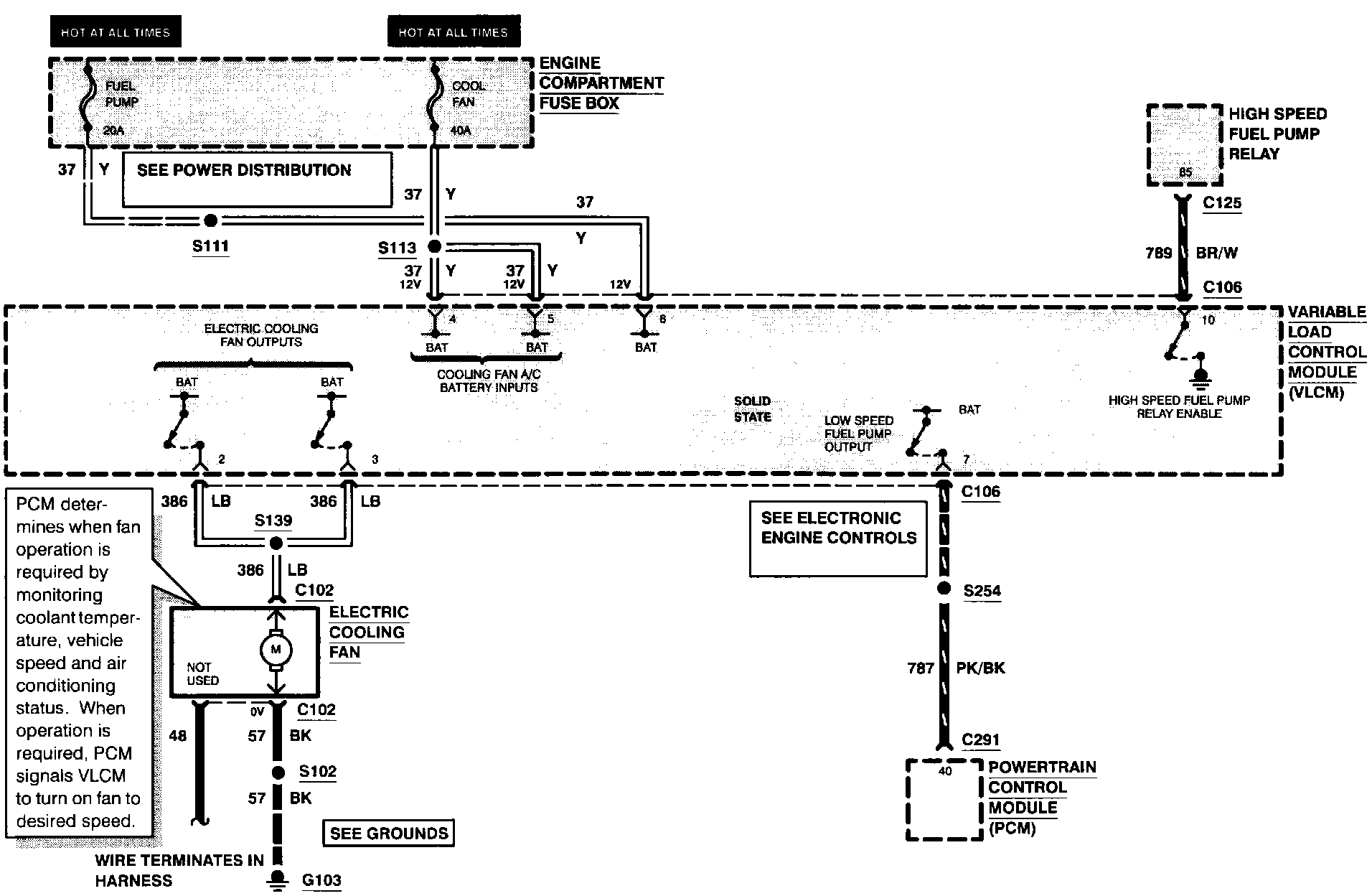

Cooling Fans (Part 2 Of 2):
