Keyless Entry Key-Pad: Service and Repair

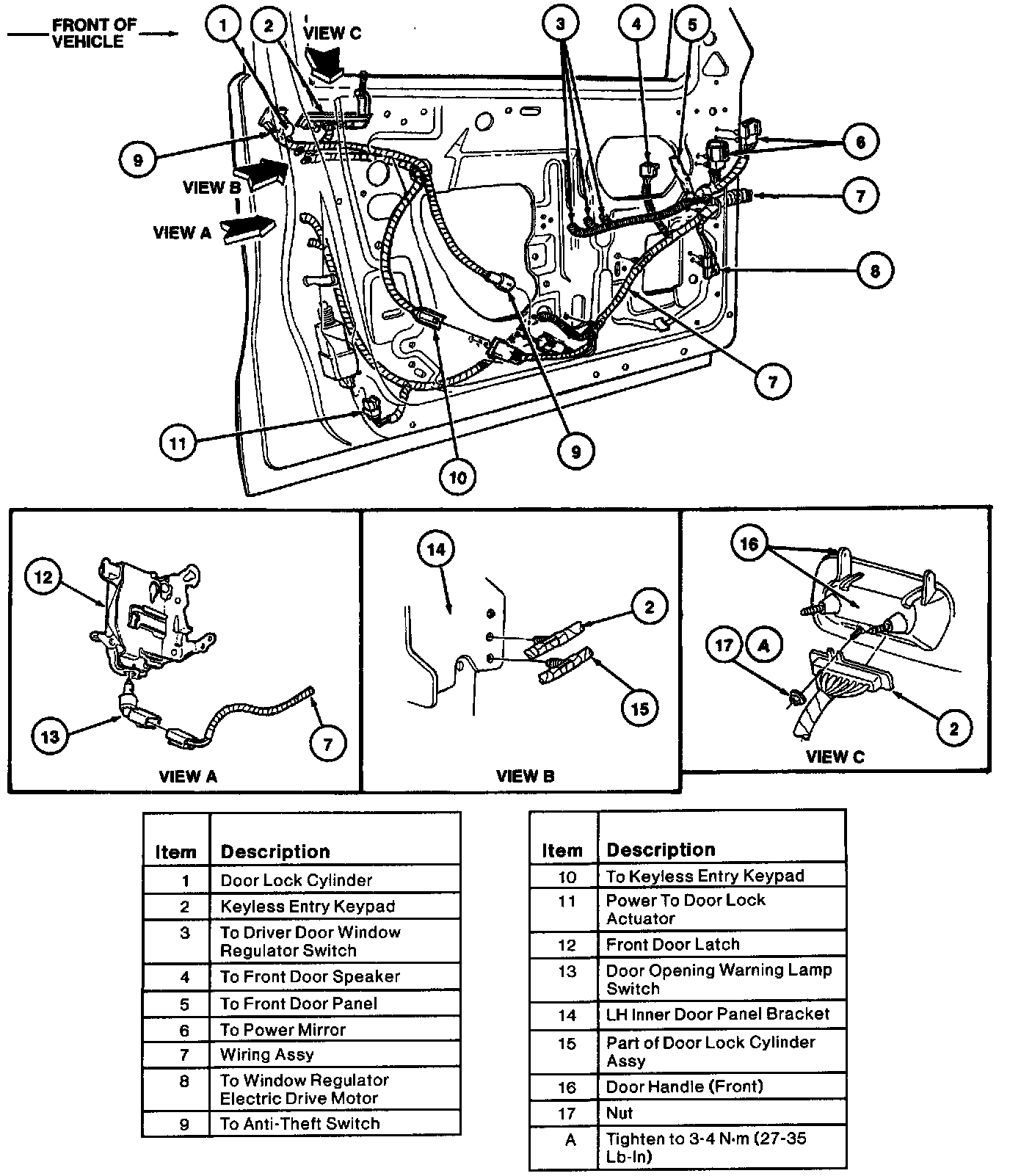

REMOVAL
1. Remove front door trim panel.
2. Disconnect keyless entry keypad harness connector.
3. Remove nut retaining keyless entry keypad.
4. Remove wiring harness locators from retaining holes.
5. Remove keyless entry keypad and wiring harness.

INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten keyless entry keypad retaining nut to 3-4 Nm (27-35 lb-in).
