Cruise Control Switch: Service and Repair

REMOVAL

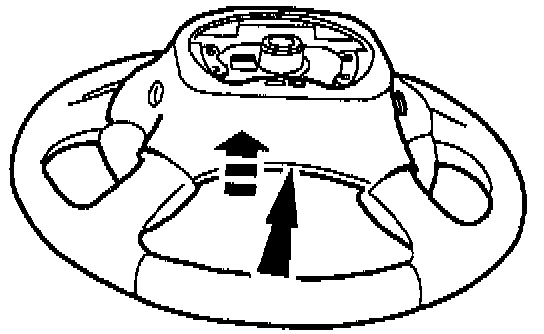

1. Remove the air bag.
2. Remove the steering wheel.

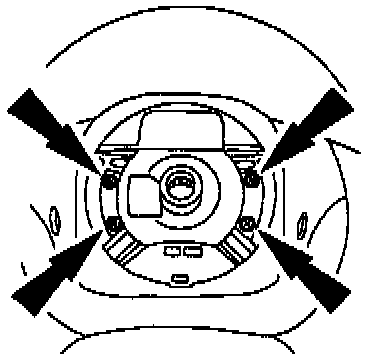

3. Remove the retaining screws from the rear side of the steering wheel.







4. Remove the steering wheel back cover.

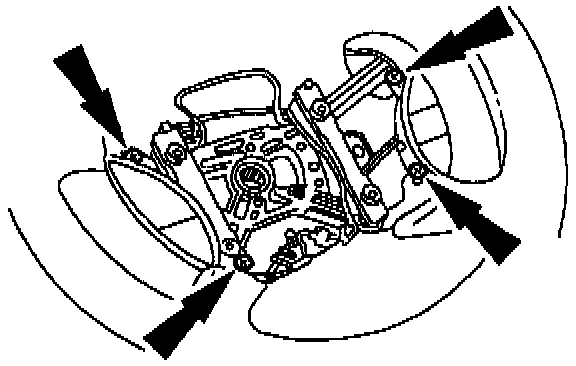

5. Remove the retaining screws from the speed control actuator switch.

INSTALLATION

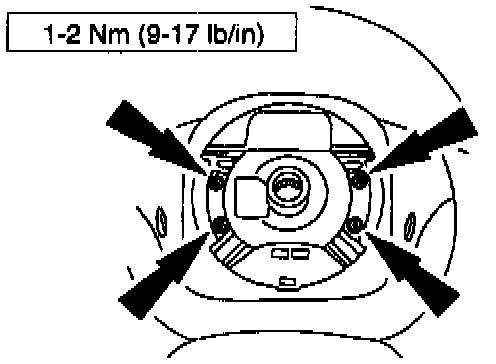

1. Follow the removal procedure in reverse order.
