Operation CHARM: Car repair manuals for everyone.
Home >> Lincoln >> 1999 >> Continental V8-4.6L DOHC VIN V >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Information Bus >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Module Communication Network >> Pinpoint Tests >> A: Antilock Brake Control Module Doesn't Respond to NGS Tester

A: Antilock Brake Control Module Doesn't Respond to NGS Tester

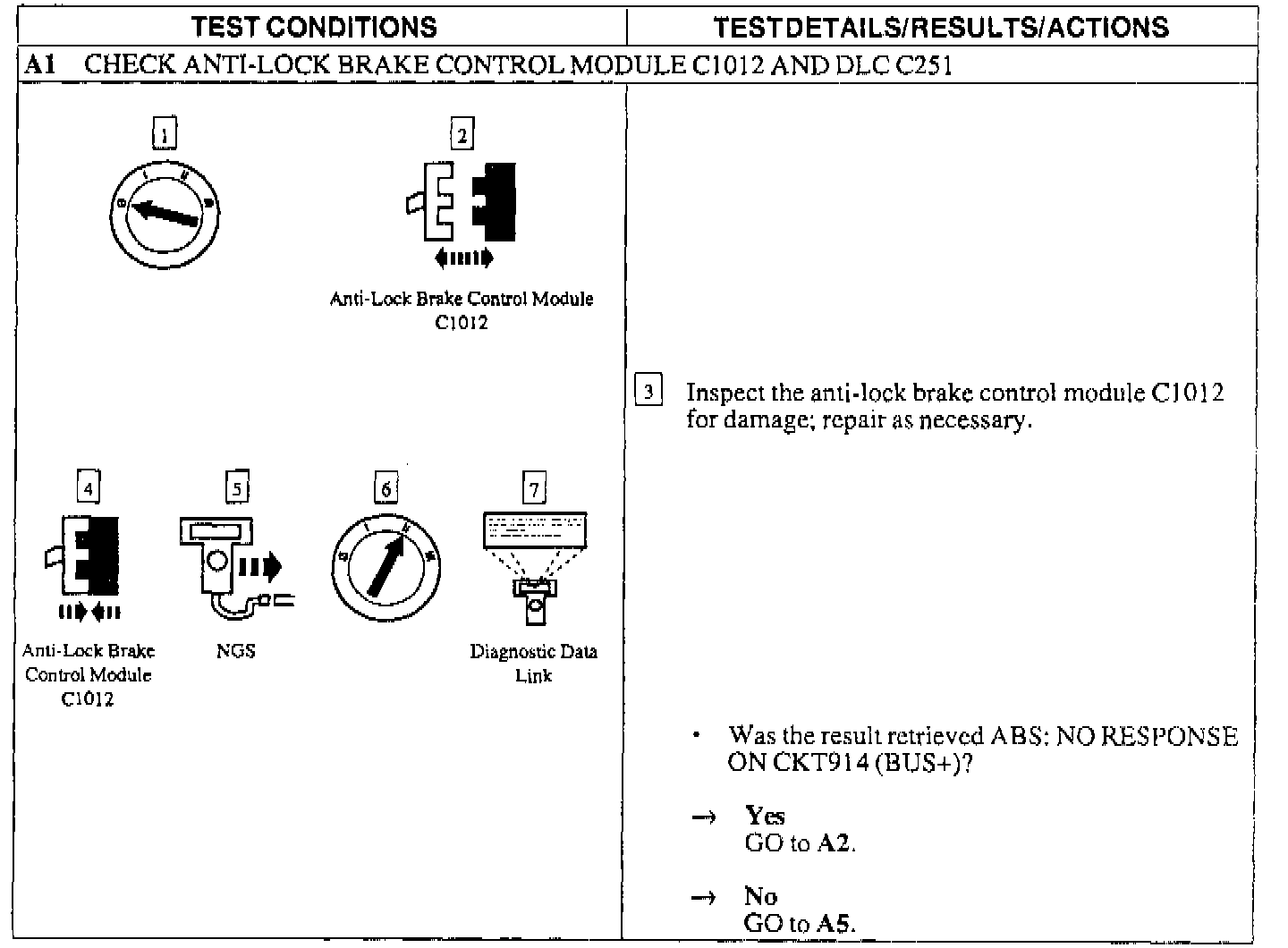

A1:

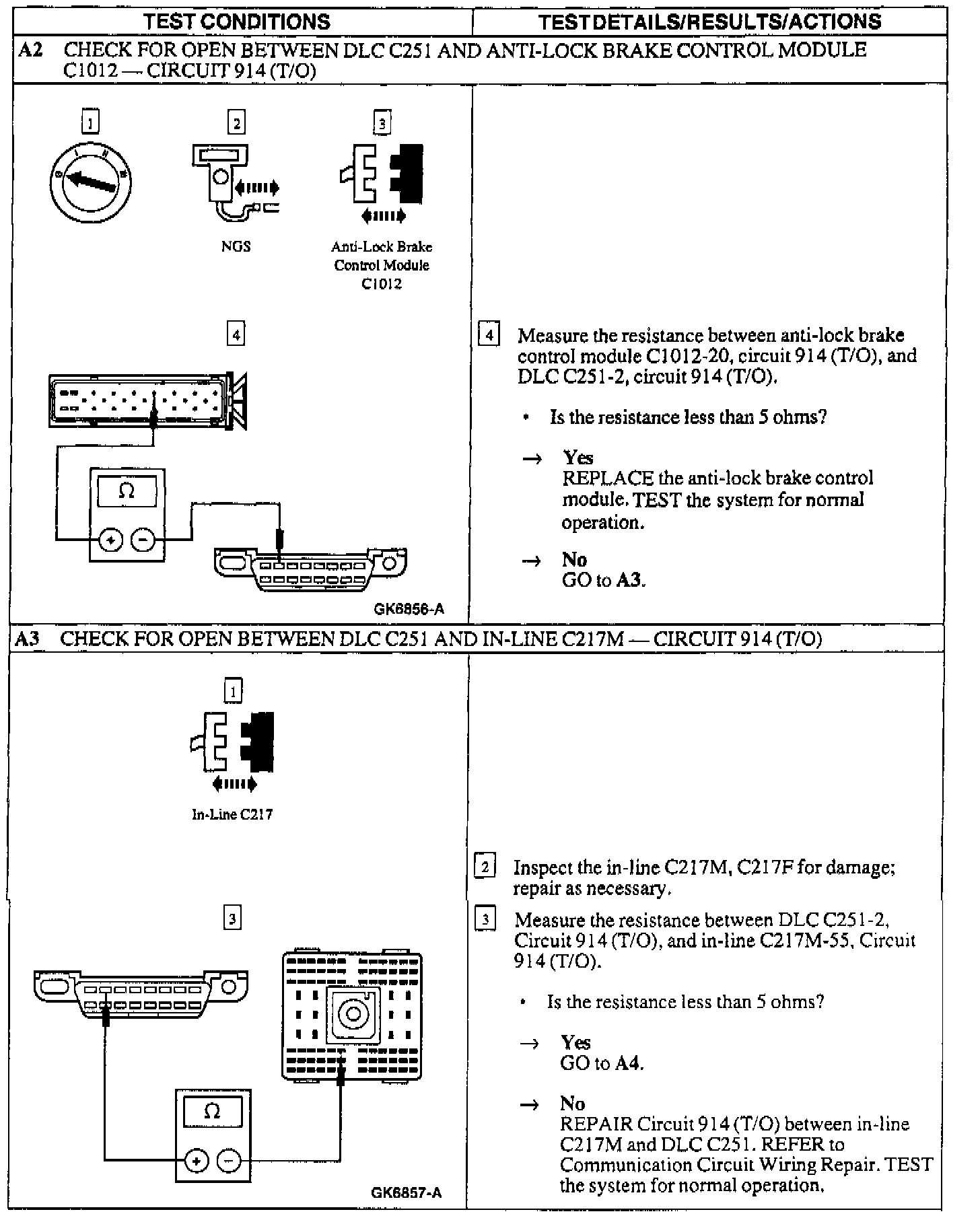

A2 - A3:

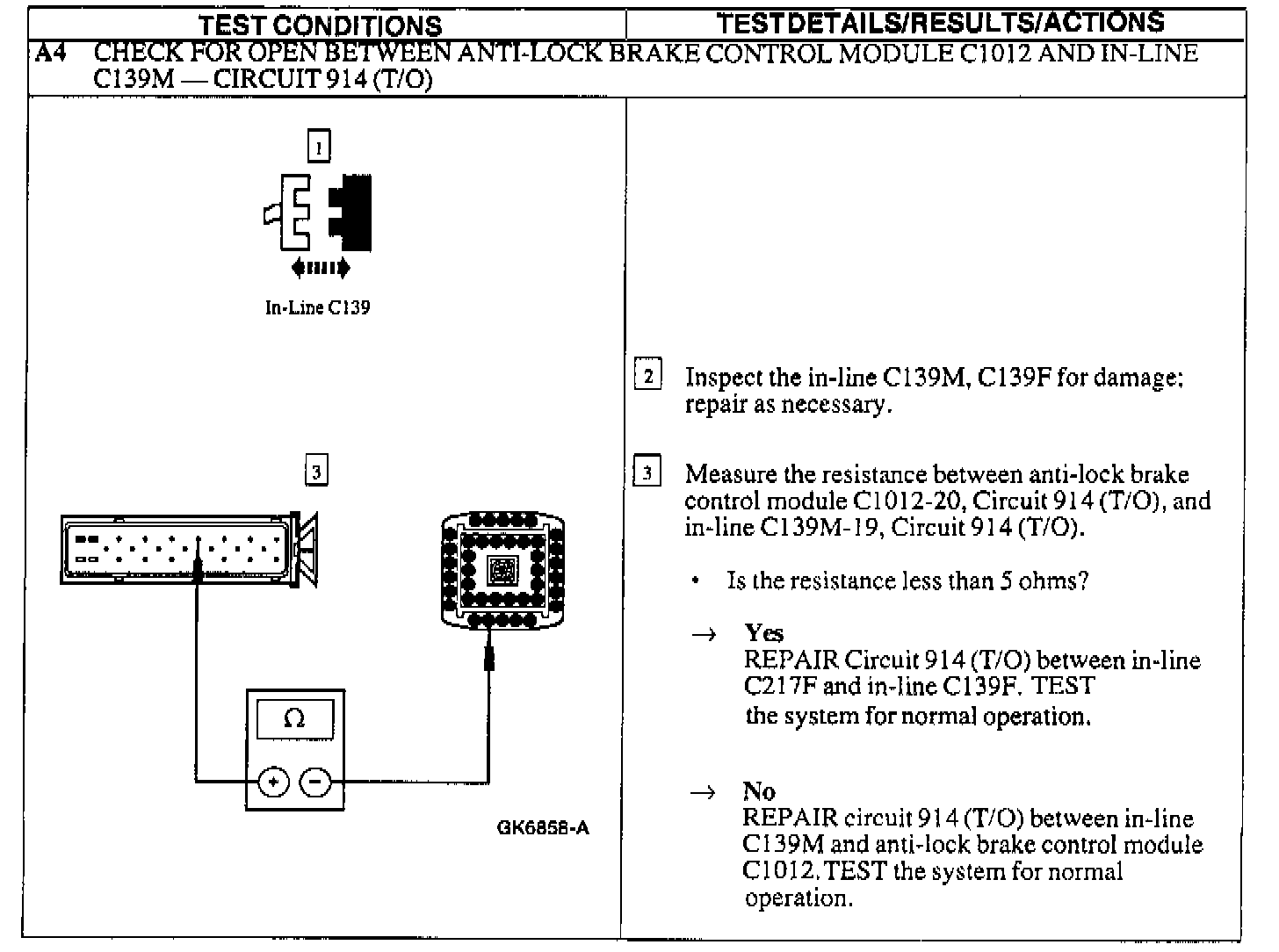

A4:

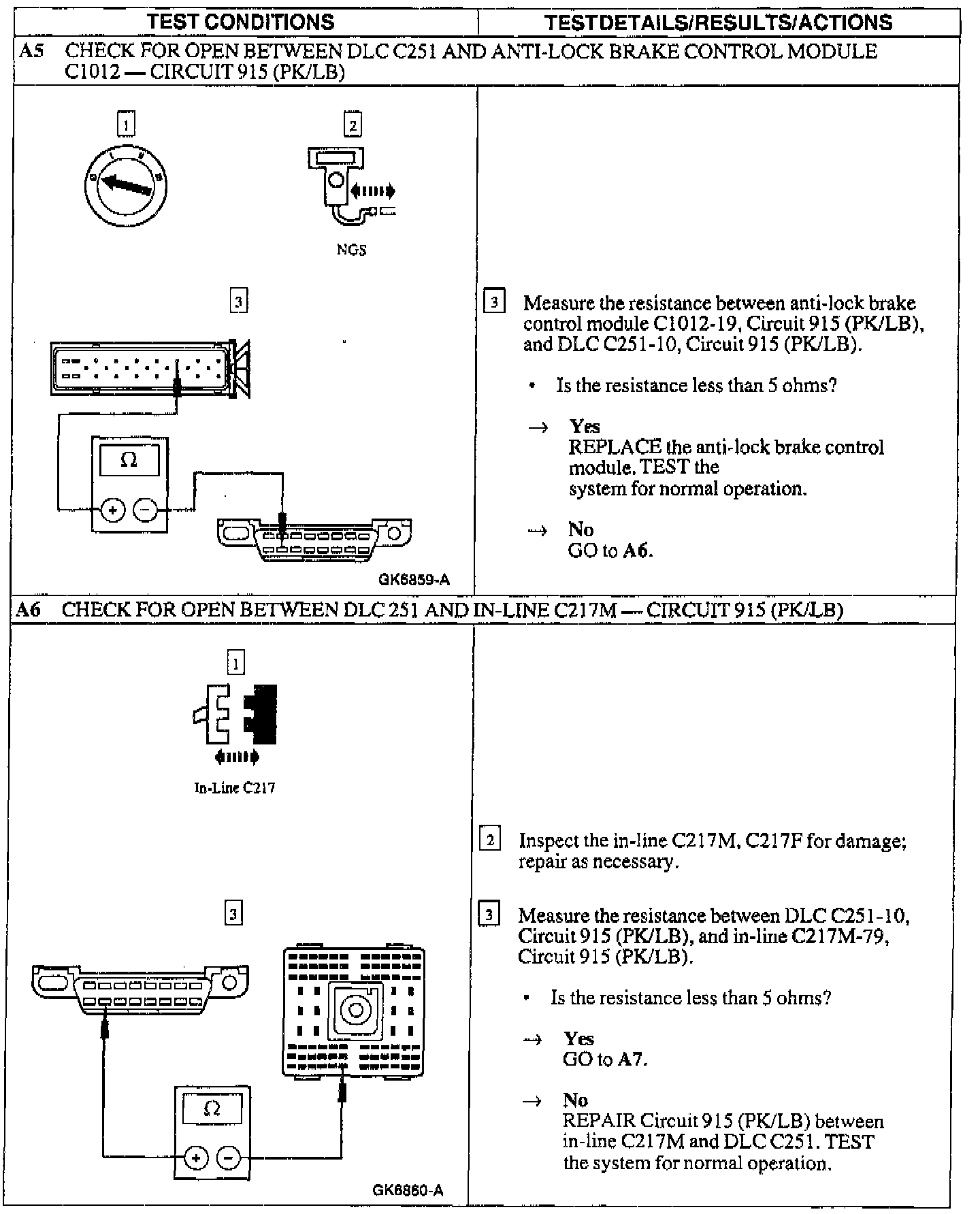

A5 - A6:

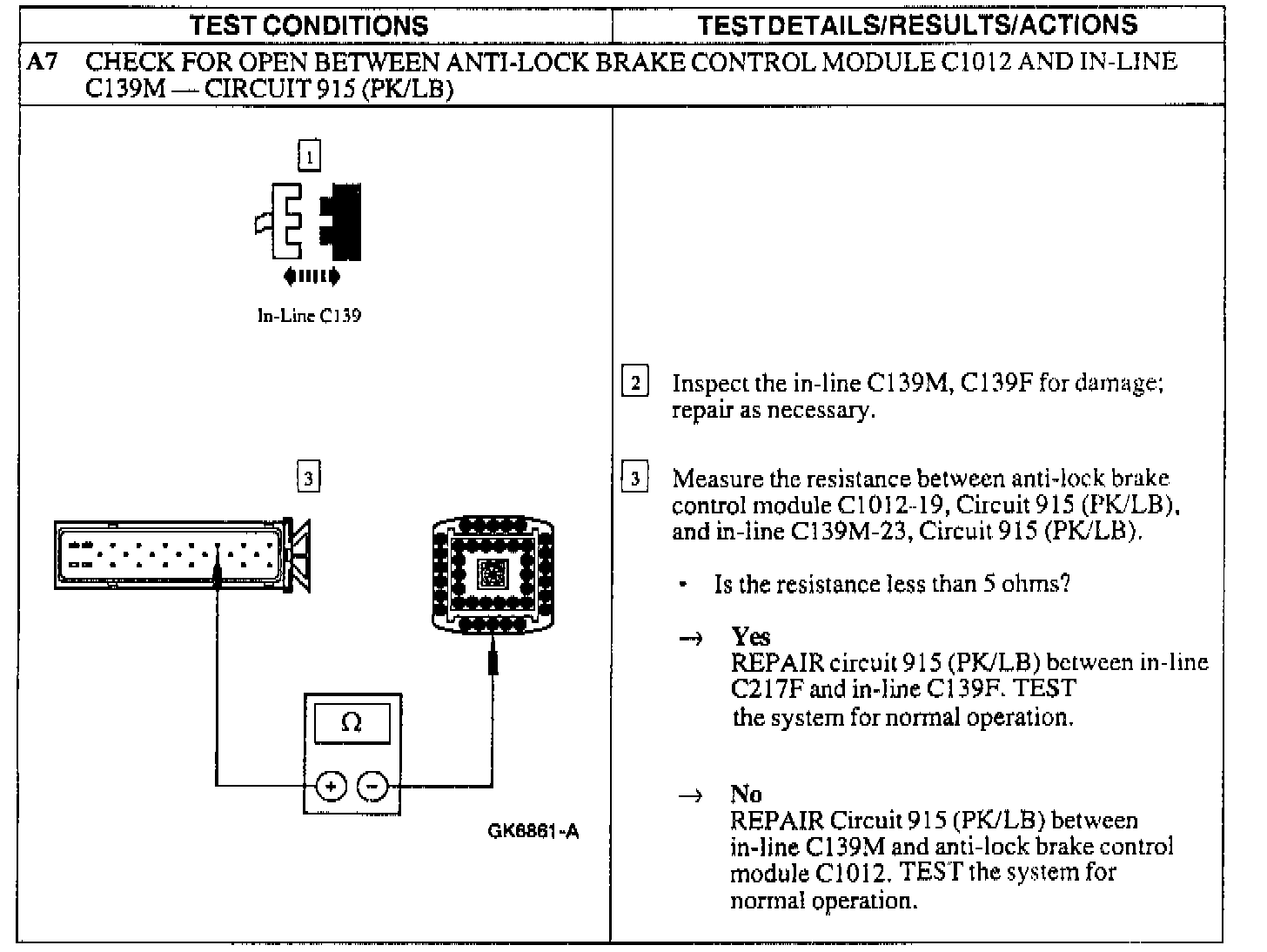

A7:
