Air Injection Bypass Valve: Service and Repair

SECONDARY AIR VALVE

REMOVAL
1. Raise and support the vehicle.

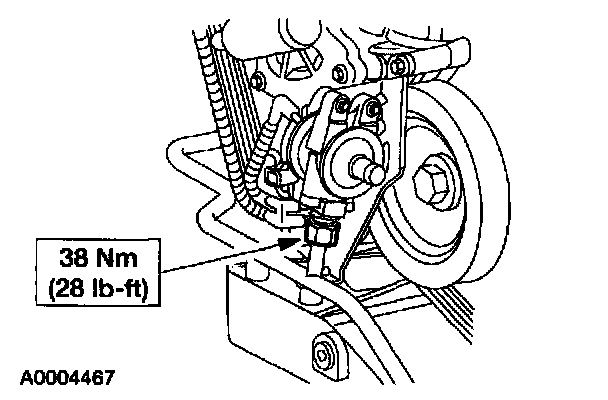

2. Disconnect the secondary air tube from the valve.

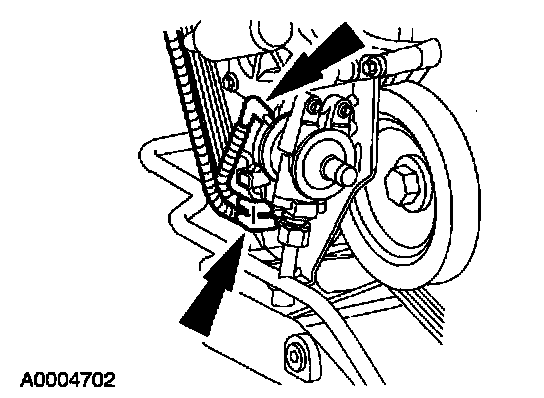

3. Disconnect the vacuum lines from the secondary air valve.

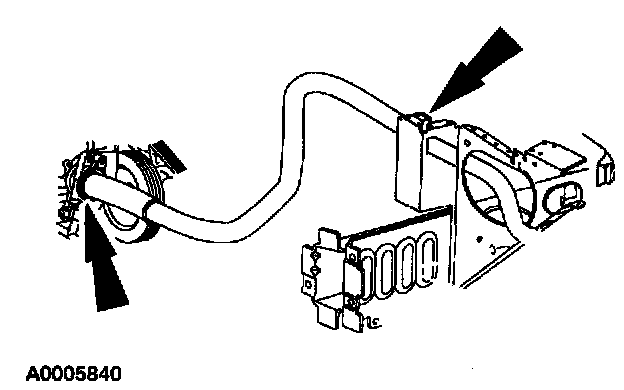

4. Disconnect and remove the pump-to-valve air tube.

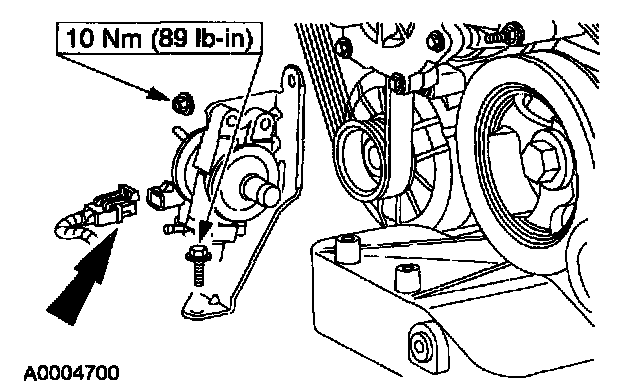

5. Disconnect the electrical connector. Remove the nut and bolt. Remove the valve.

INSTALLATION
1. To install, reverse the removal procedure.
