Fan-Pump

Fan-Pump

Special Tools:

Special Tool(s)

Removal
1. Remove the generator.





2. Disconnect the hose and allow to drain.





3. Disconnect the electrical connector.

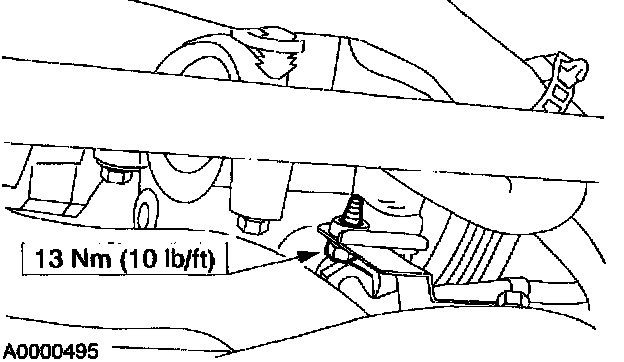

4. Remove the bolt and the high pressure line bracket.

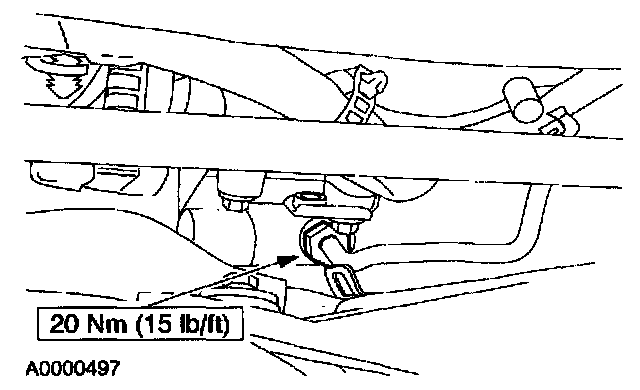

5. Disconnect the high pressure line.





6. Remove the bolts and the cooling fan pump.

Installation
1. To install, reverse the removal procedure.





2. Using the appropriate special tool, install a new O-ring on the hydraulic cooling fan pressure hose fitting.
3. Fill and bleed the hydraulic cooling fan system.
