Rear

Brake Pads





Special Tool(s)

Removal and Installation
1. Remove the wheel and tire assembly.





2. Remove the caliper bolts.





3. CAUTION: Do not pry in caliper sight hole to retract pistons as this can damage the pistons and boots. When removing the caliper never allow it to hang from the brake hose. Provide a suitable support.

Remove the caliper.





4. Remove the brake pads.





5. CAUTION: Use a hub-mount brake lathe if necessary to machine the brake disc.

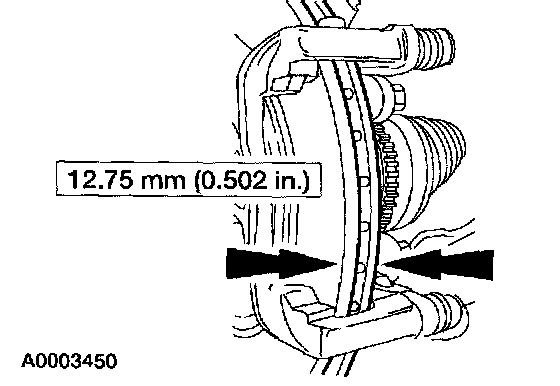

Measure the brake disc, and resurface as necessary. Install a new brake disc if beyond specification.





6. Compress the disc brake piston and adjuster into the disc brake caliper using Rear Caliper Piston Adjuster.





7. To install, reverse the removal procedure.
