Home >> Lincoln >> 2002 >> LS V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Steering Column

Steering Column

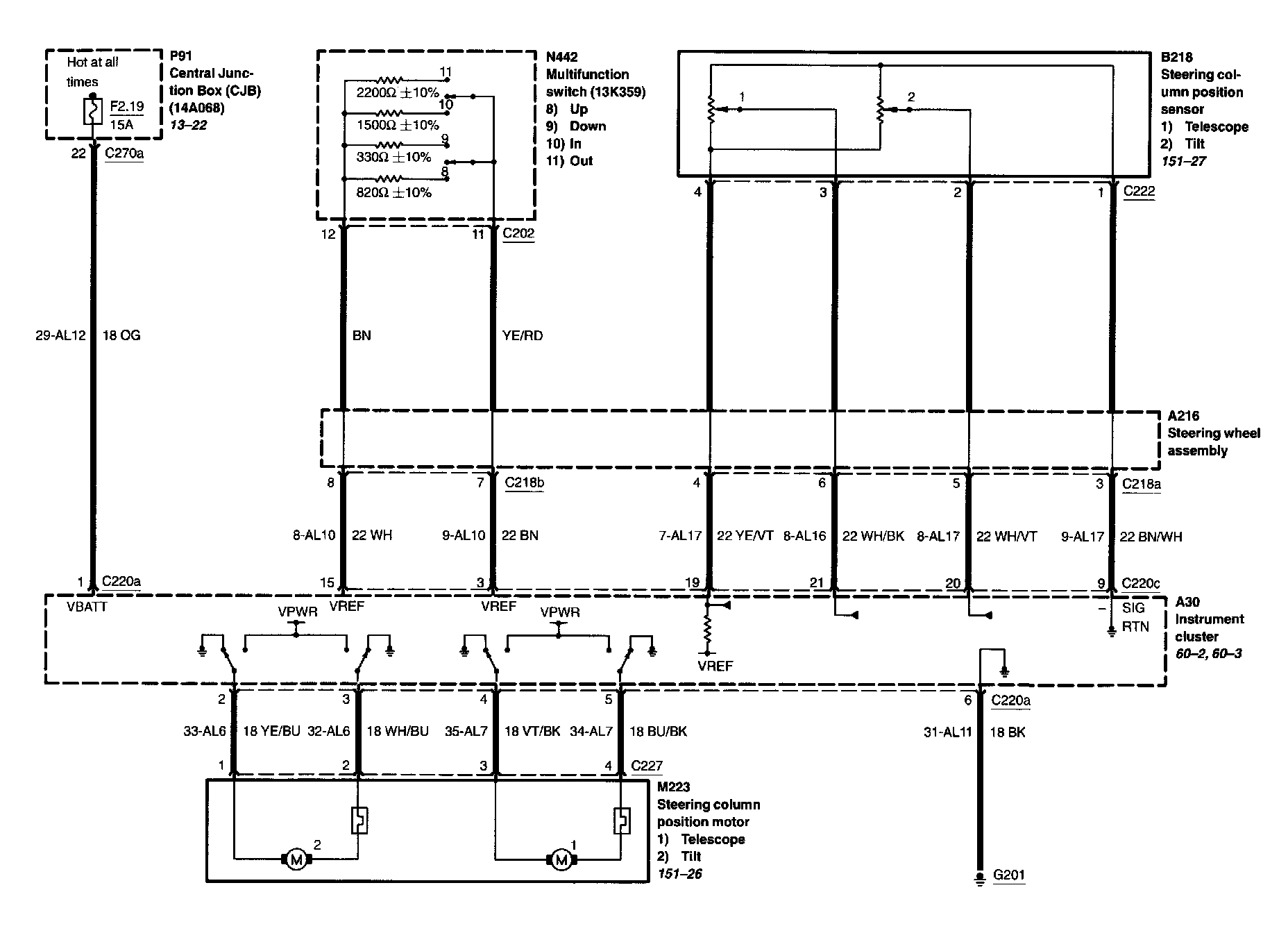

Diagram 128-1:

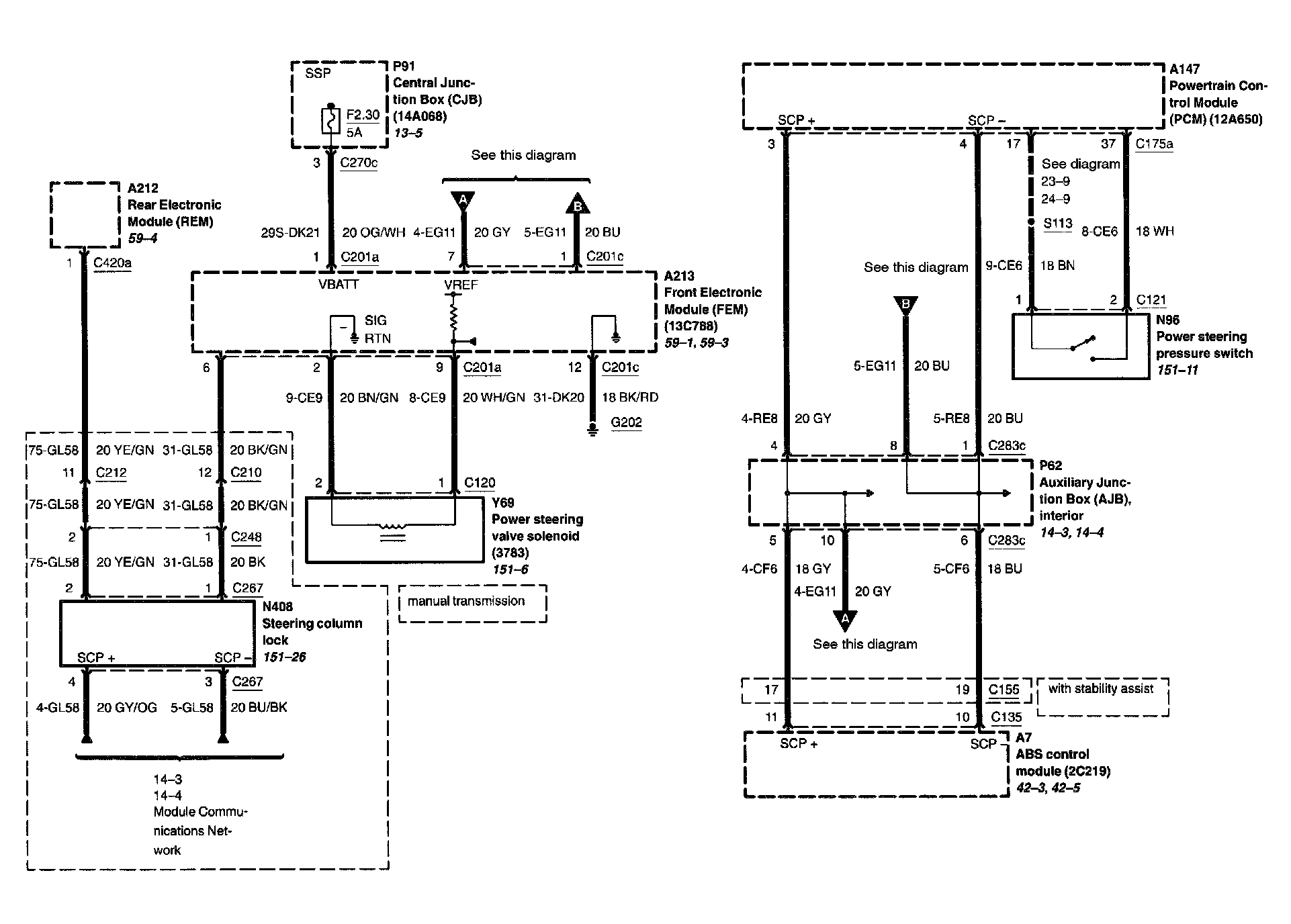

Diagram 128-2:
