Home >> Lincoln >> 2002 >> LS V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Locations >> Component Locations >> Location Views >> View 151-52 (Central Junction Box)

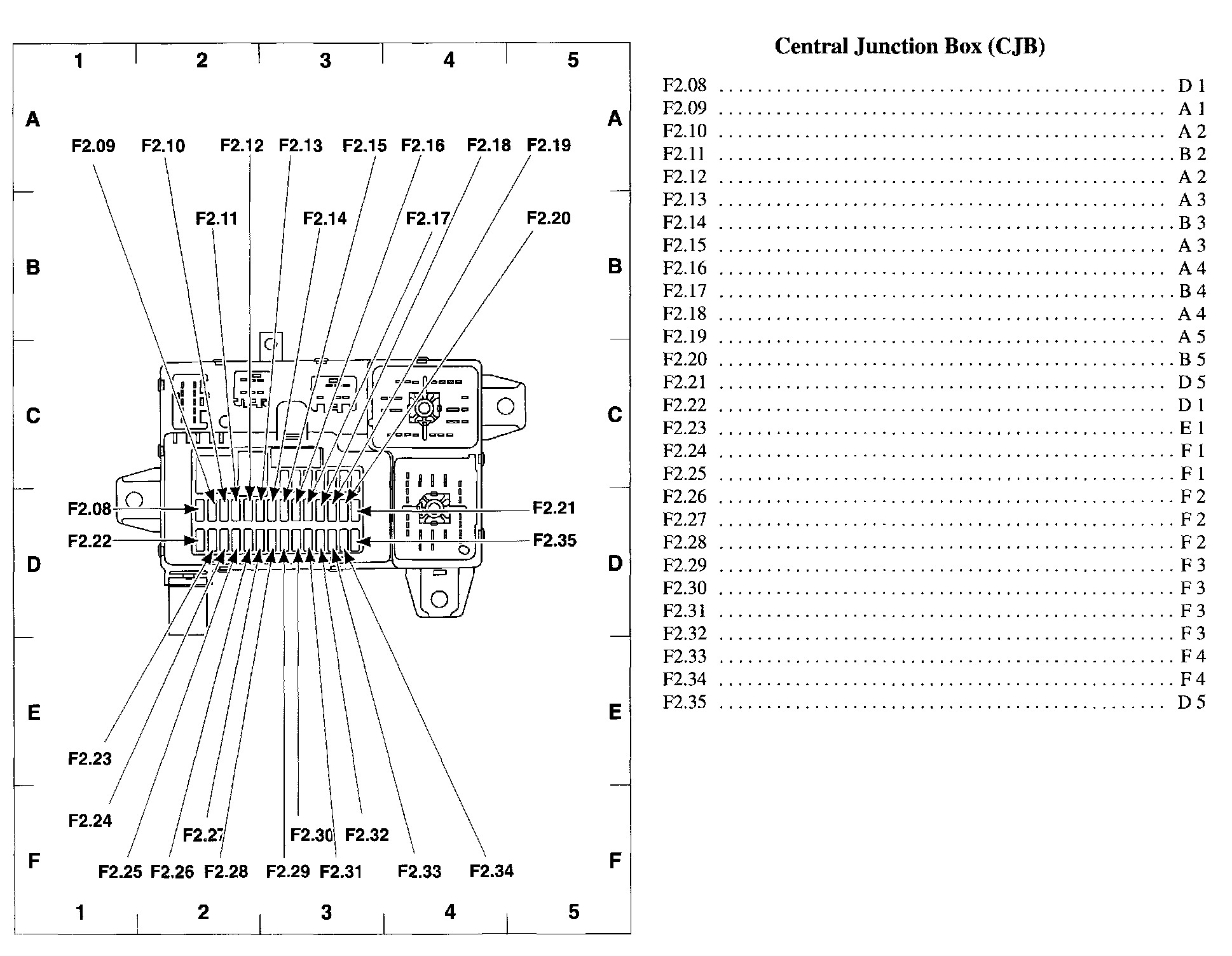

View 151-52 (Central Junction Box)

View 151-52:
