Transmission Mount: Service and Repair

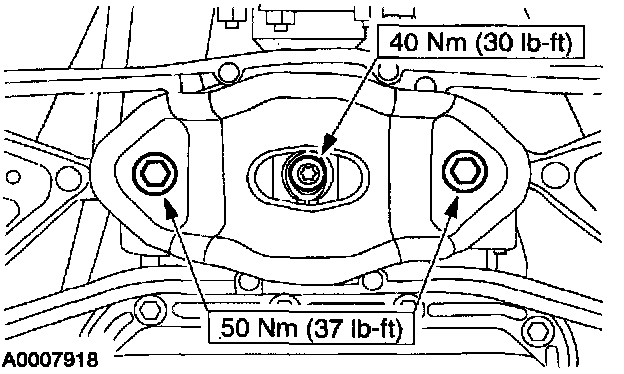

Transmission Support Insulator

Removal and Installation
1. Raise and support the vehicle.
2. Support the transmission with a transmission jack.





3. Remove the bolts.
4. To install, reverse the removal procedure.
