Home >> Lincoln >> 2002 >> LS V8-3.9L VIN A >> Repair and Diagnosis >> Locations >> Component Locations >> Location Views >> View 151-29 (Center Floor Pan)

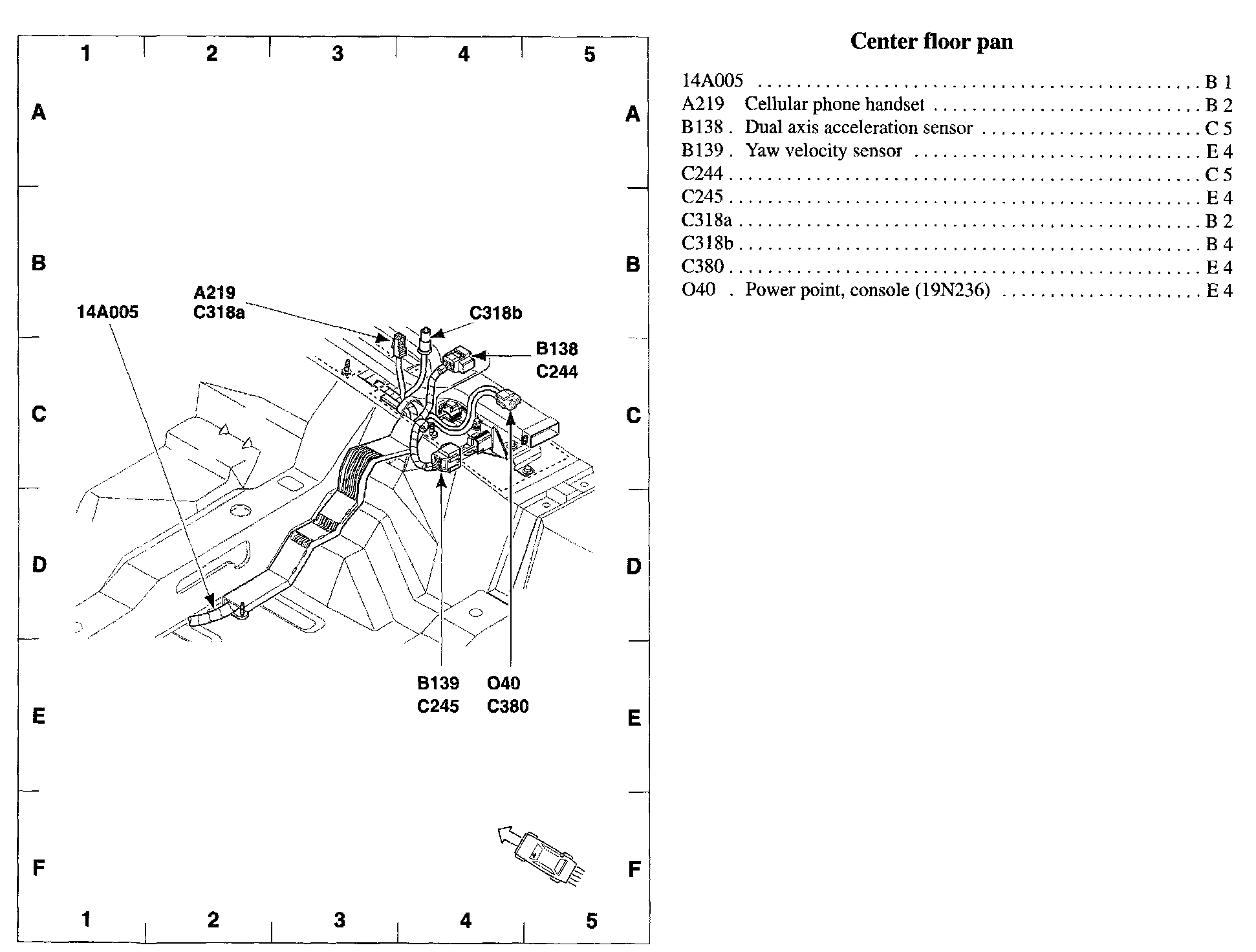

View 151-29 (Center Floor Pan)

View 151-29:
