Seat Track: Service and Repair

SEAT TRACK

REMOVAL

WARNING:
- Always wear safety glasses when repairing a supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- After deployment, the air bag surface can contain deposits of sodium hydroxide, a product of the gas ignorant combustion that is irritating to the skin. Wash your hands with soap and water afterwards.
- Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
- To reduce the risk of personal injury, do not use any memory saver devices.

NOTE:
- If a seat equipped with a seat mounted side air bag and/or a safety belt pretensioner (if equipped) system is being serviced, the supplemental restraint system (SRS) must be depowered.
- The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

1. Position the seat to gain access to the fasteners.
2. Depower the SRS.
3. Remove the affected seat.

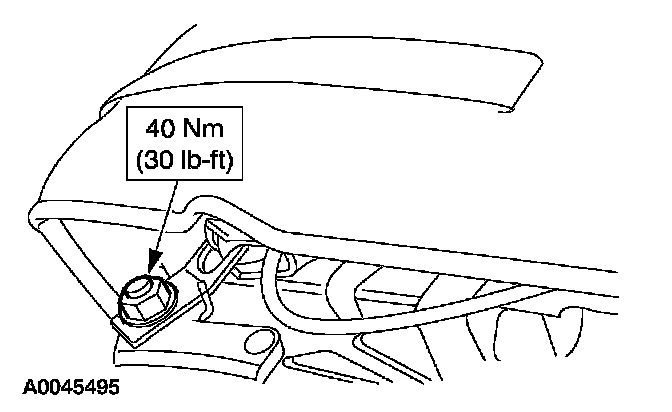

4. Remove the front safety belt buckle end.
1 Remove the nut.
2 Disconnect the electrical connector.
3 Remove the front safety belt buckle end.

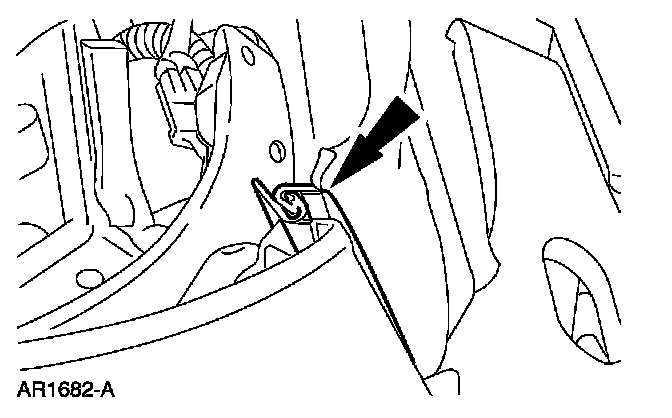

5. Release the outboard J-clip.

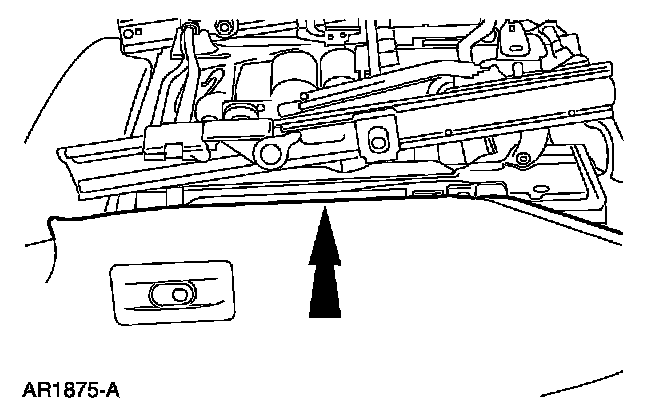

6. Release the J-clip, on both sides of the seat.

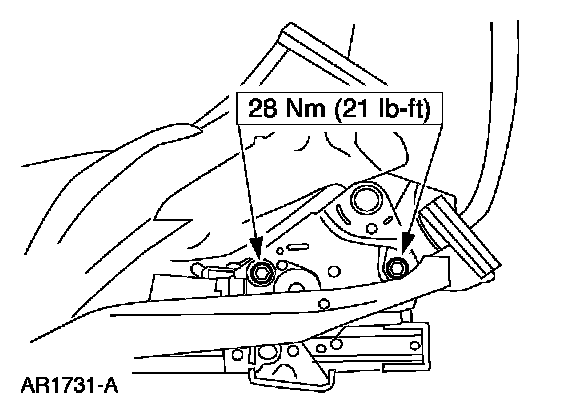

7. Position the seat cover up and remove the seat track outer side bolts.







8. Position the seat cover up and remove the seat track inner side bolt.

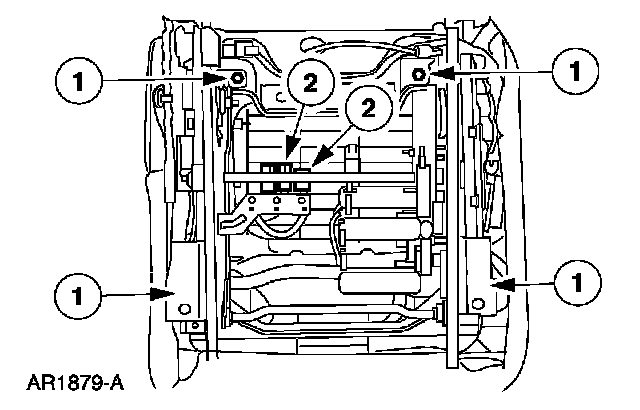

9. Remove the seat track.
1 Remove the bolts.
2 Disconnect the electrical connectors.

INSTALLATION







1. Install the seat track, connect the electrical connectors and install the bolts.

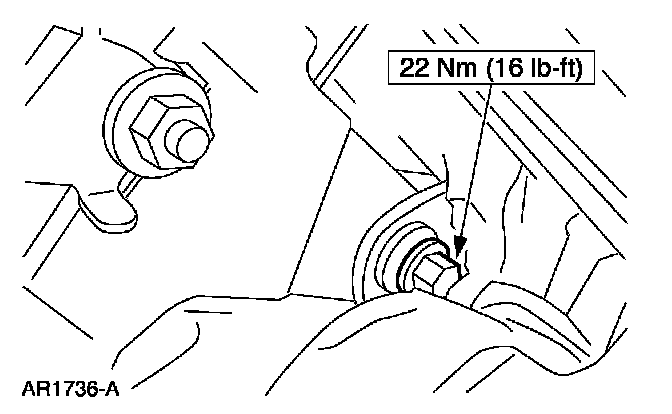

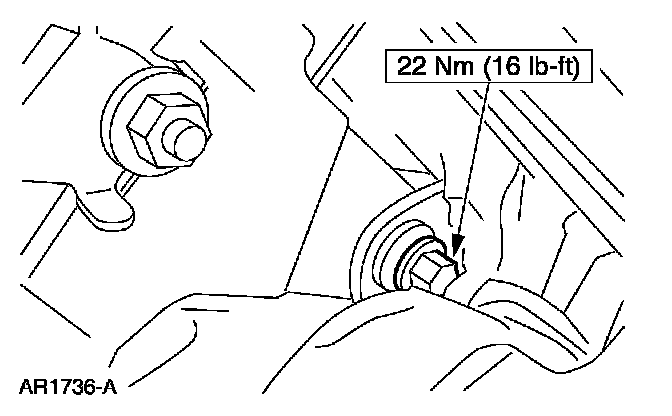

2. Partially install the inner seat track bolt.

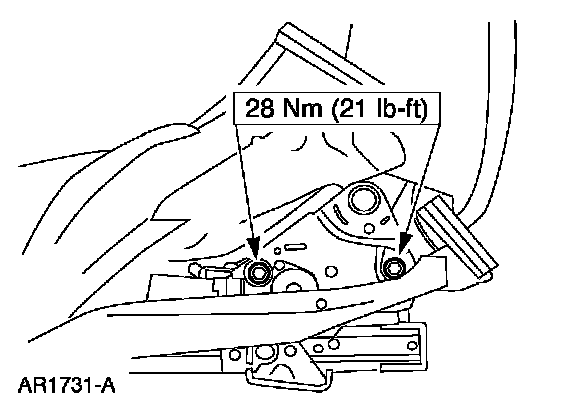

3. Partially install the outer seat track bolts.
4. Tighten bolts to specification.

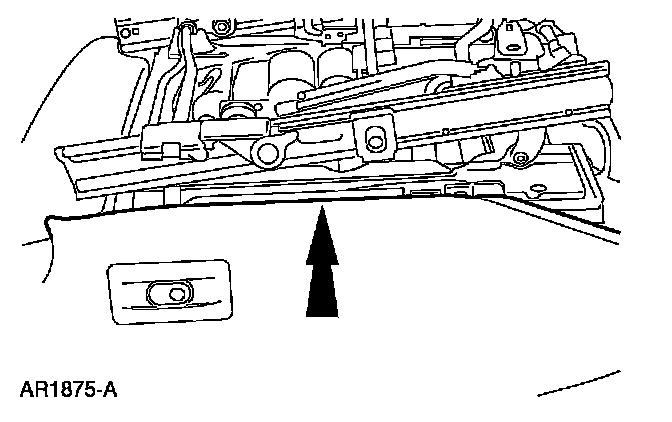

5. Position both side seat covers back and fasten the J-clips.







6. Fasten the J-clips on the outer side.







7. Install the safety belt buckle end.
- Connect the electrical connector.
- Install the bolt.

8. Install the affected seat.
9. Repower the SRS.
10. Check the restraint system for correct operation.
