Intake Air Duct: Service and Repair

AIR CLEANER OUTLET PIPE

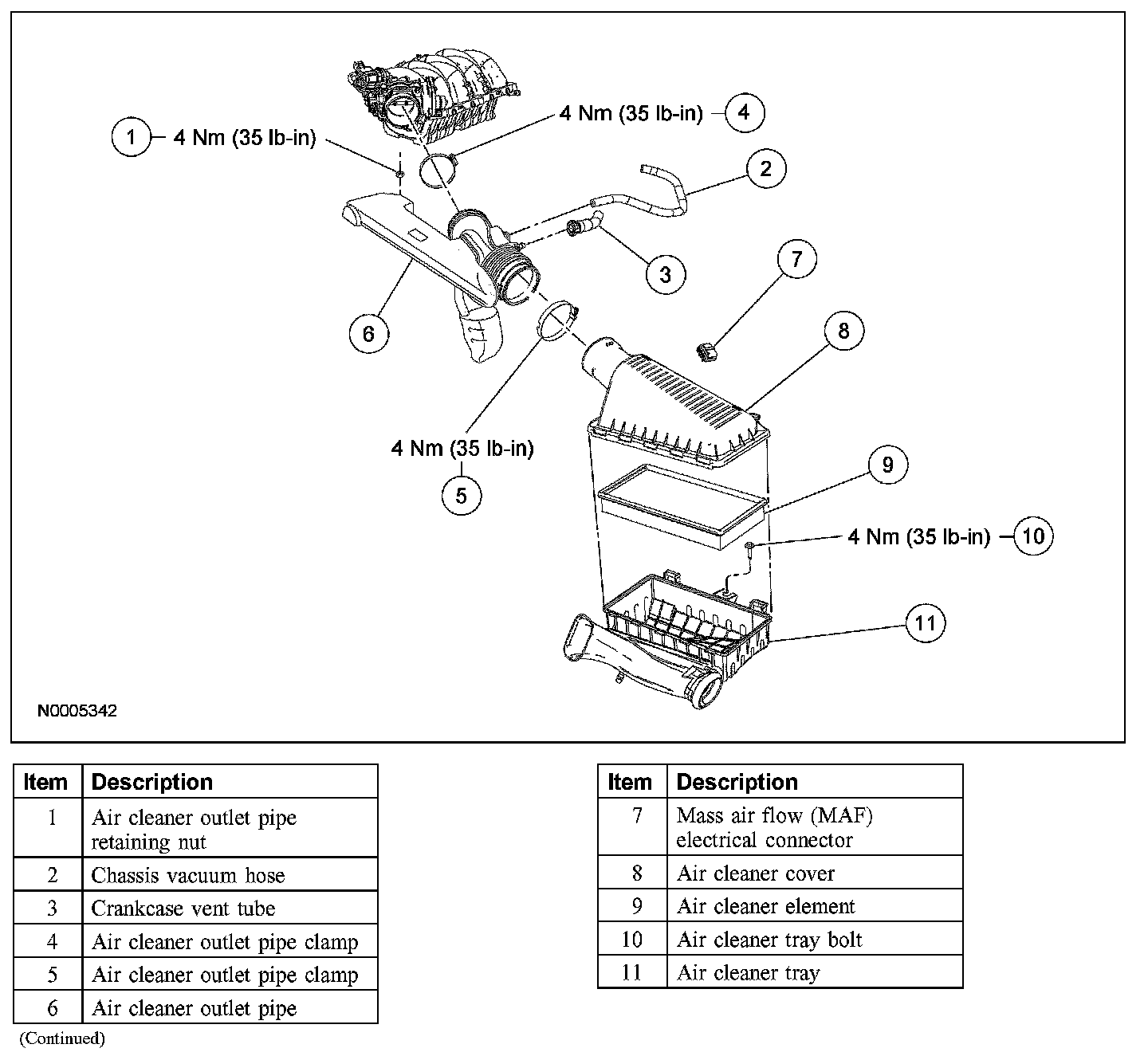

Exploded View

Removal and Installation
1. Remove the air cleaner outlet pipe retaining nut.
- To install, tighten to 4 Nm (35 lb-in).

2. Disconnect the chassis vacuum hose from the air cleaner outlet pipe and position aside.
3. Disconnect crankcase vent tube from the air cleaner outlet pipe and position aside.
4. Remove the 2 clamps and the air cleaner outlet pipe.
- To install, tighten to 4 Nm (35 lb-in).

5. To install, reverse the removal procedure.
