Telescoping Wheel Motor: Service and Repair

Tilt/Telescopic Motors

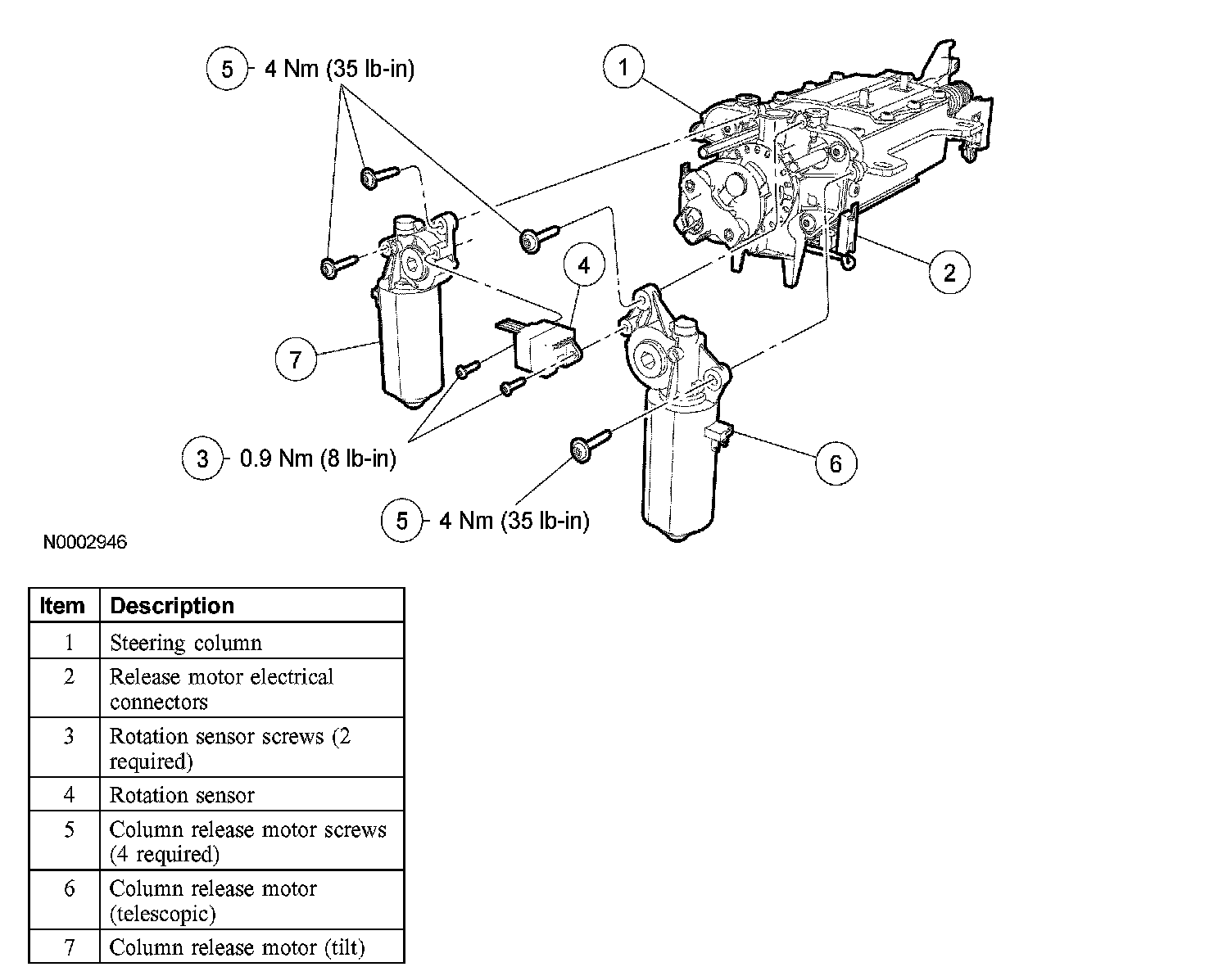

Removal and Installation
1. Remove the steering column.
2. Disconnect the 2 column release motor electrical connectors.
3. Remove the 2 rotation sensor screws and the rotation sensor.
^ To install, tighten to 0.9 Nm (8 inch lbs.).
4. Remove the 4 screws and the column release motors.
^ To install, tighten to 4 Nm (35 inch lbs.).
5. To install, reverse the removal procedure.
