Home >> Lincoln >> 2008 >> Town Car V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Multiple Junction Connector >> C610-C3206 >> C3134

C3134

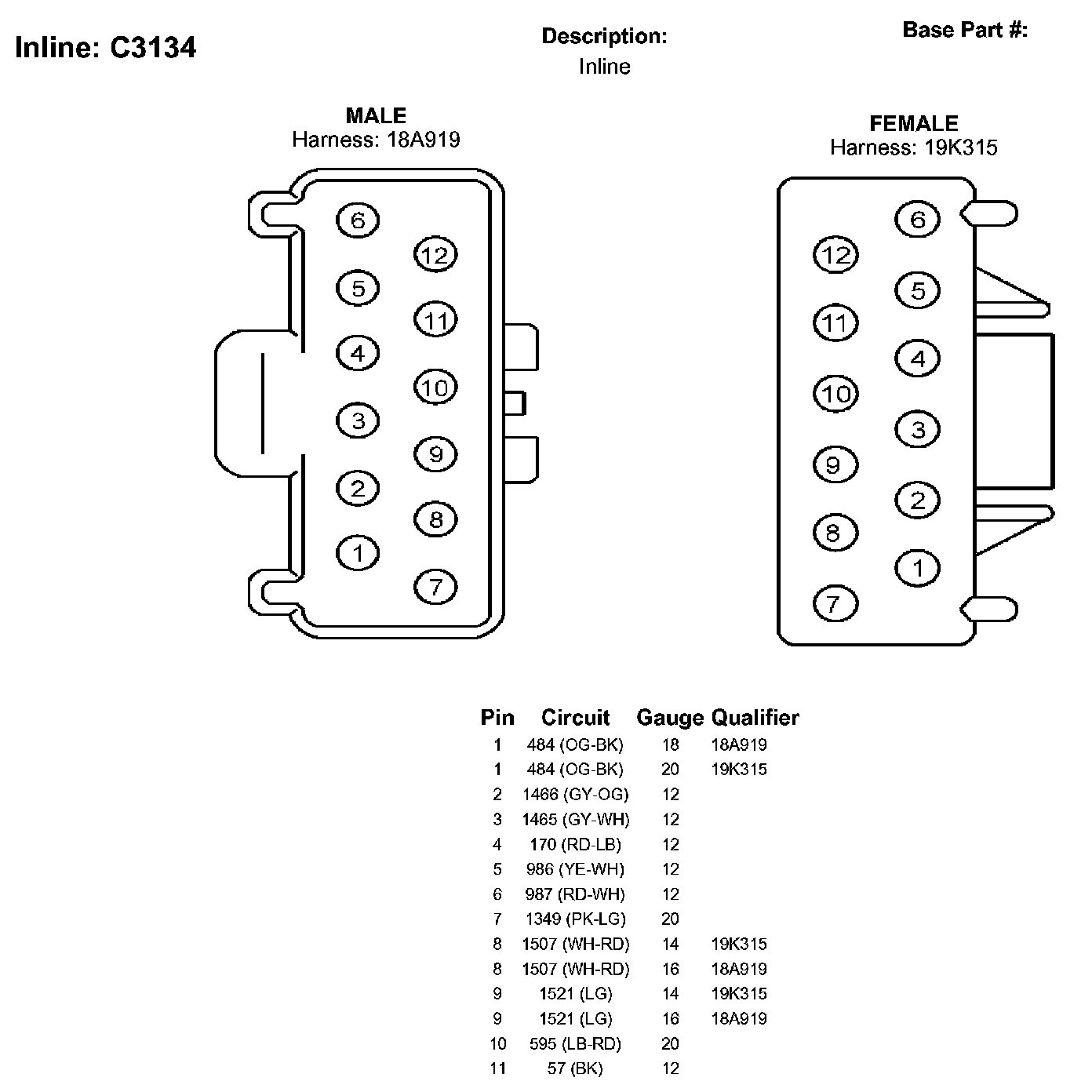

C3134 (Part 1):

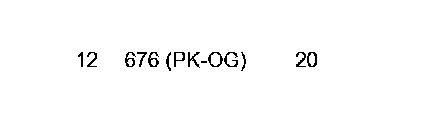

C3134 (Part 2):
