Mazda Truck
>>
1987
>>
B Series Truck 2WD L4-2555cc 2.6L SOHC
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Computers and Control Systems
Computers and Control Systems

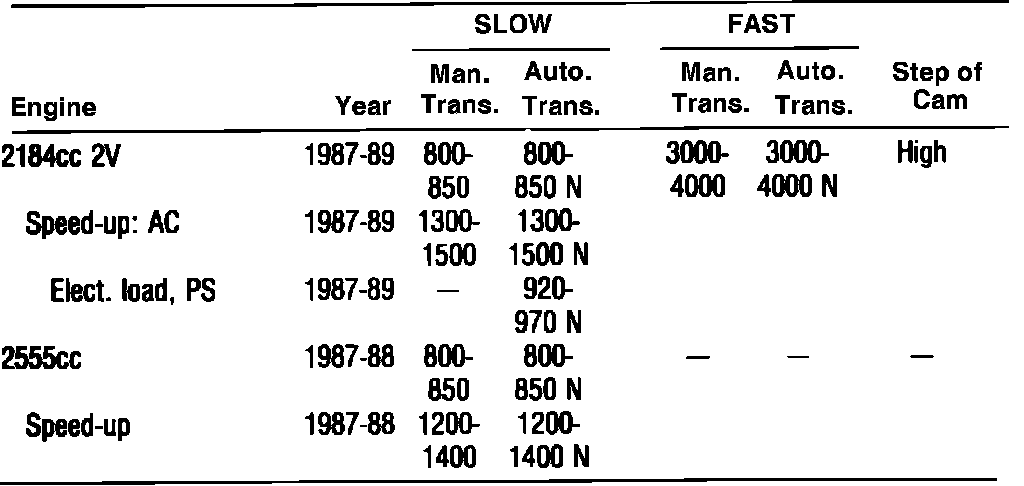

Fig. 6 Idle Speed W/O Computer Control - Specifications:
