Pinpoint Test 7

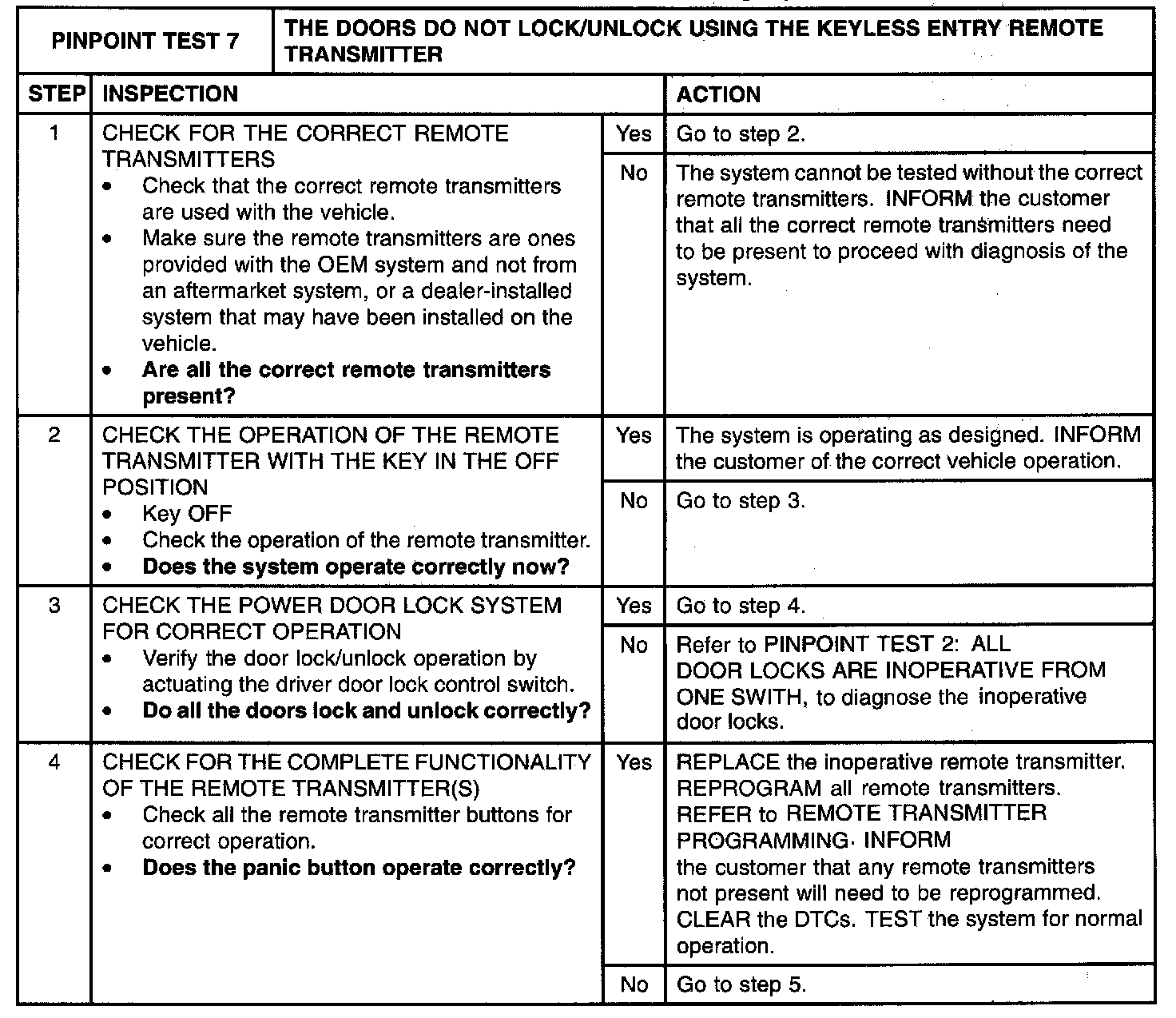

Step 1 - 4:

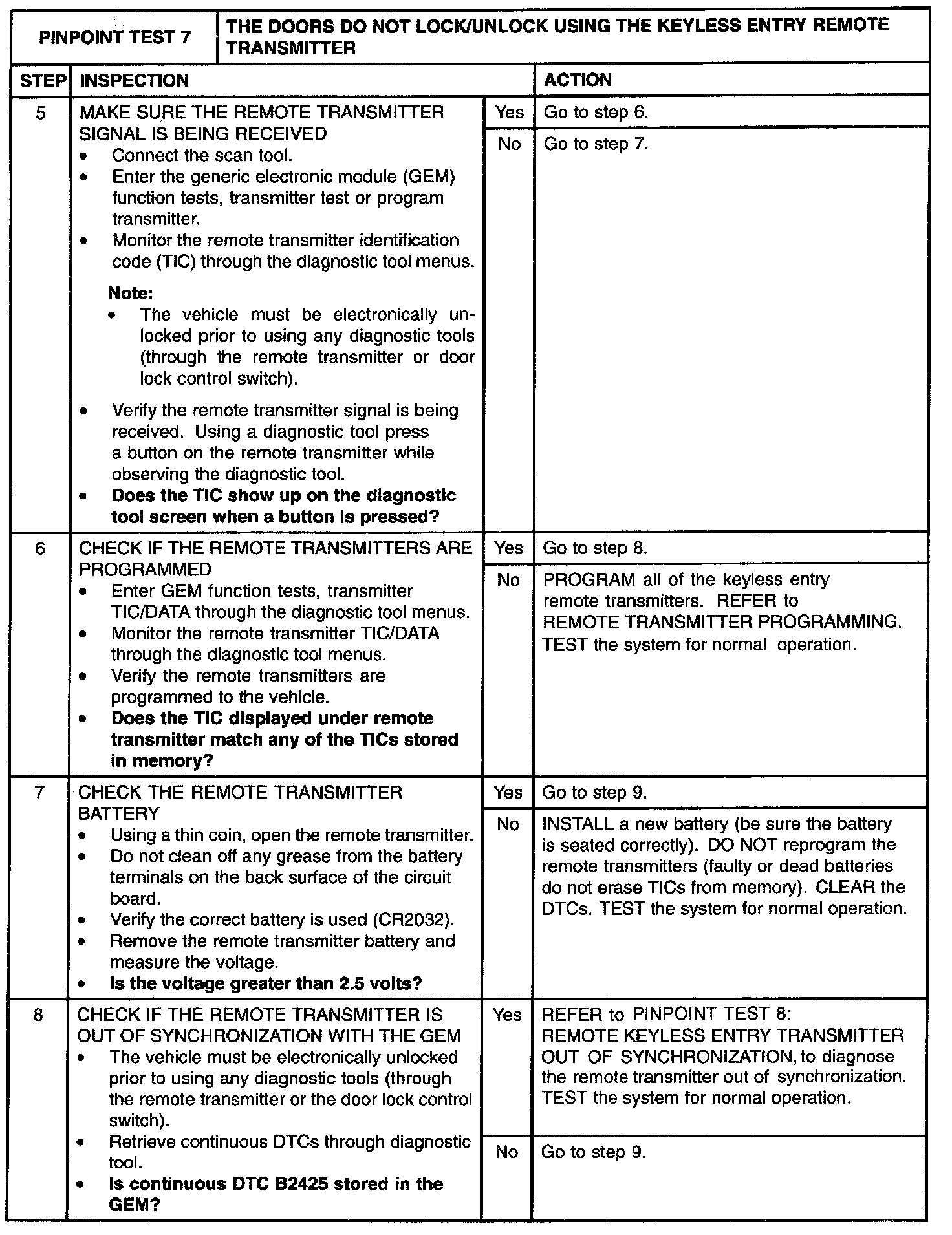

Step 5 - 8:

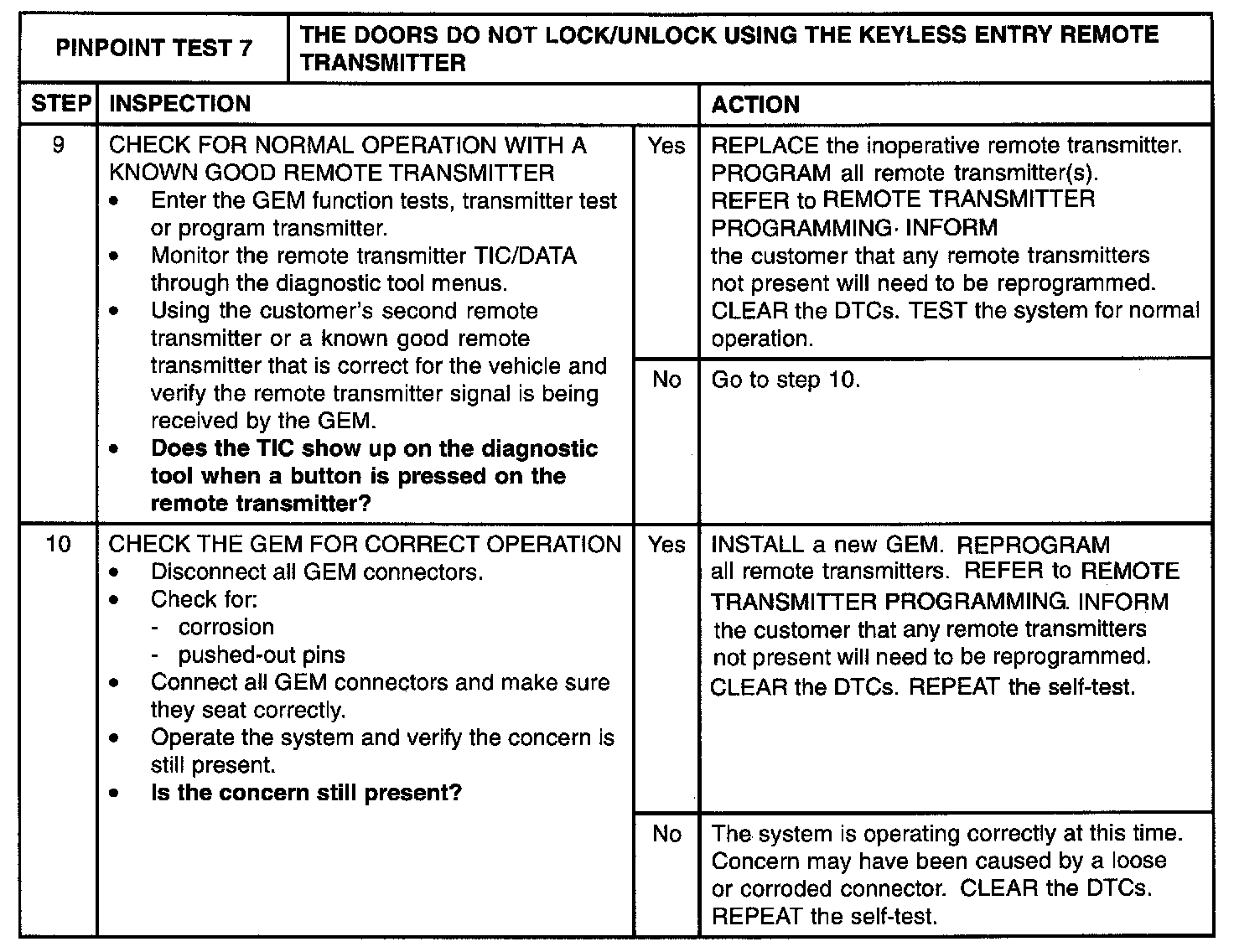

Step 9 - 10:

PINPOINT TEST 7: THE DOORS DO NOT LOCK/UNLOCK USING THE KEYLESS ENTRY REMOTE TRANSMITTER

NOTE: All remote transmitters must be present to begin diagnosis of the remote keyless entry (RKE) system.

NOTE: Aftermarket or dealer-installed systems may adversely affect the RKE system operation. These systems should be disconnected before diagnosing any RKE concerns.
