Mazda Truck
>>
2004
>>
Tribute 2WD L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

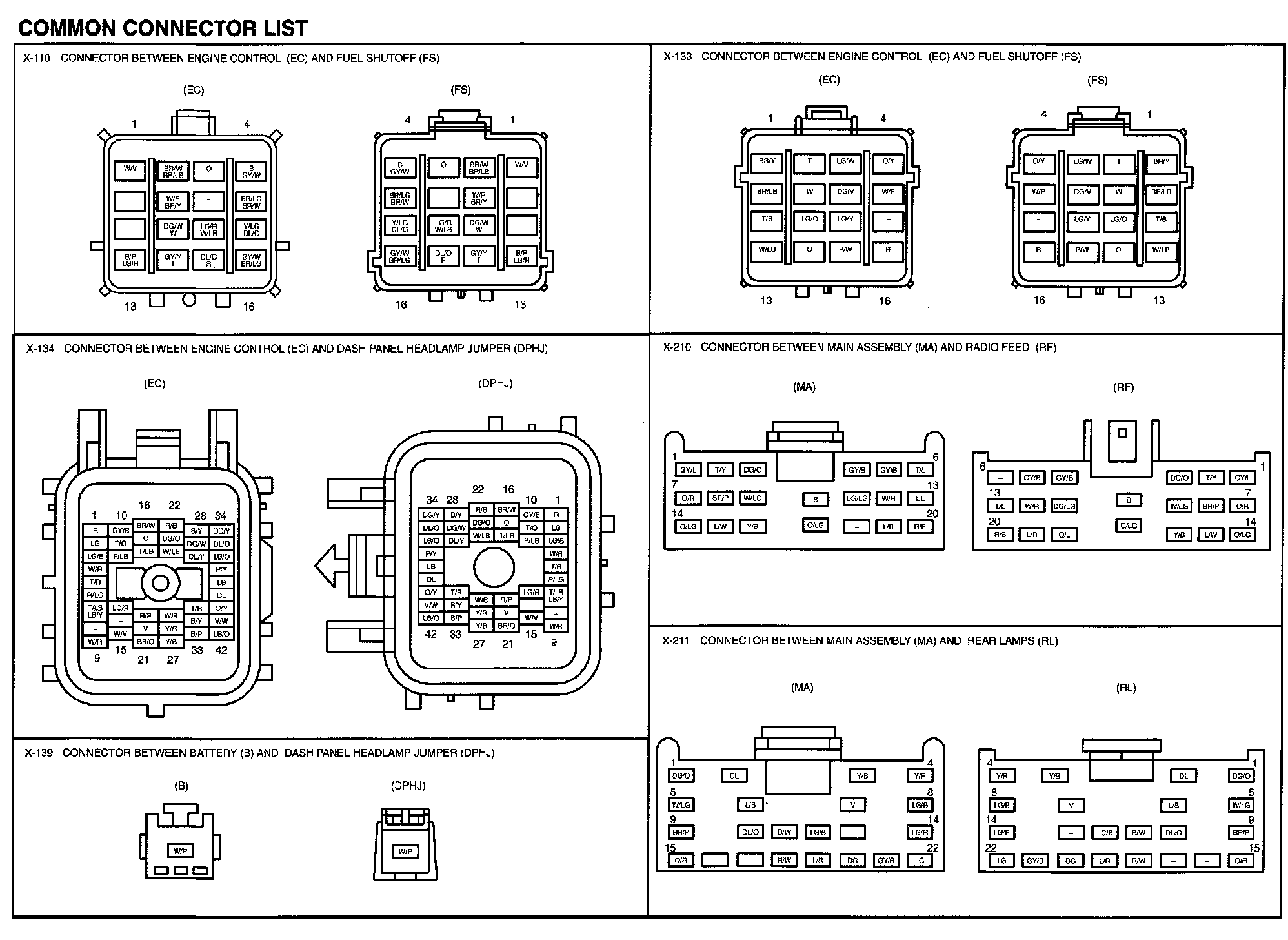

X-110 - X-211
X-110 - X-211
X-110 - X-211:
