Engine Temperature Sensor: Service and Repair

CYLINDER HEAD TEMPERATURE (CHT) SENSOR - 2.0L ZETEC

Removal and Installation

1. Remove the generator. Refer to GENERATOR - 2.0L.

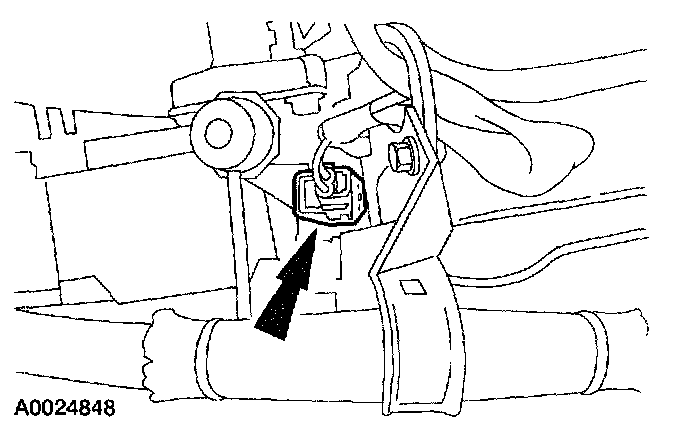

2. Disconnect the cylinder head temperature (CHT) sensor electrical connector.




3. Remove the CHT sensor.
4. To install, reverse the removal procedure.
