On-Board System Readiness Tests Access Procedure

ON-BOARD SYSTEM READINESS TESTS ACCESS PROCEDURE

1. Perform the necessary vehicle preparation and visual inspection. Hook up the WDS or equivalent tester to the vehicle.

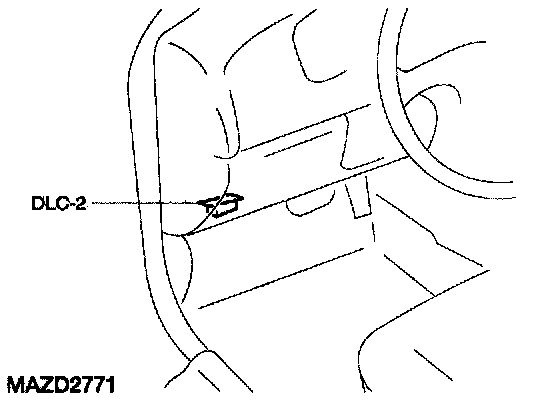

2. Connect the WDS or equivalent tester to the vehicle DLC-2 16-pin connector located on the left side of the center console.
3. Monitor the OBD II systems operating status by WDS or equivalent tester.
