Fluid Diagrams
Fluid Diagrams

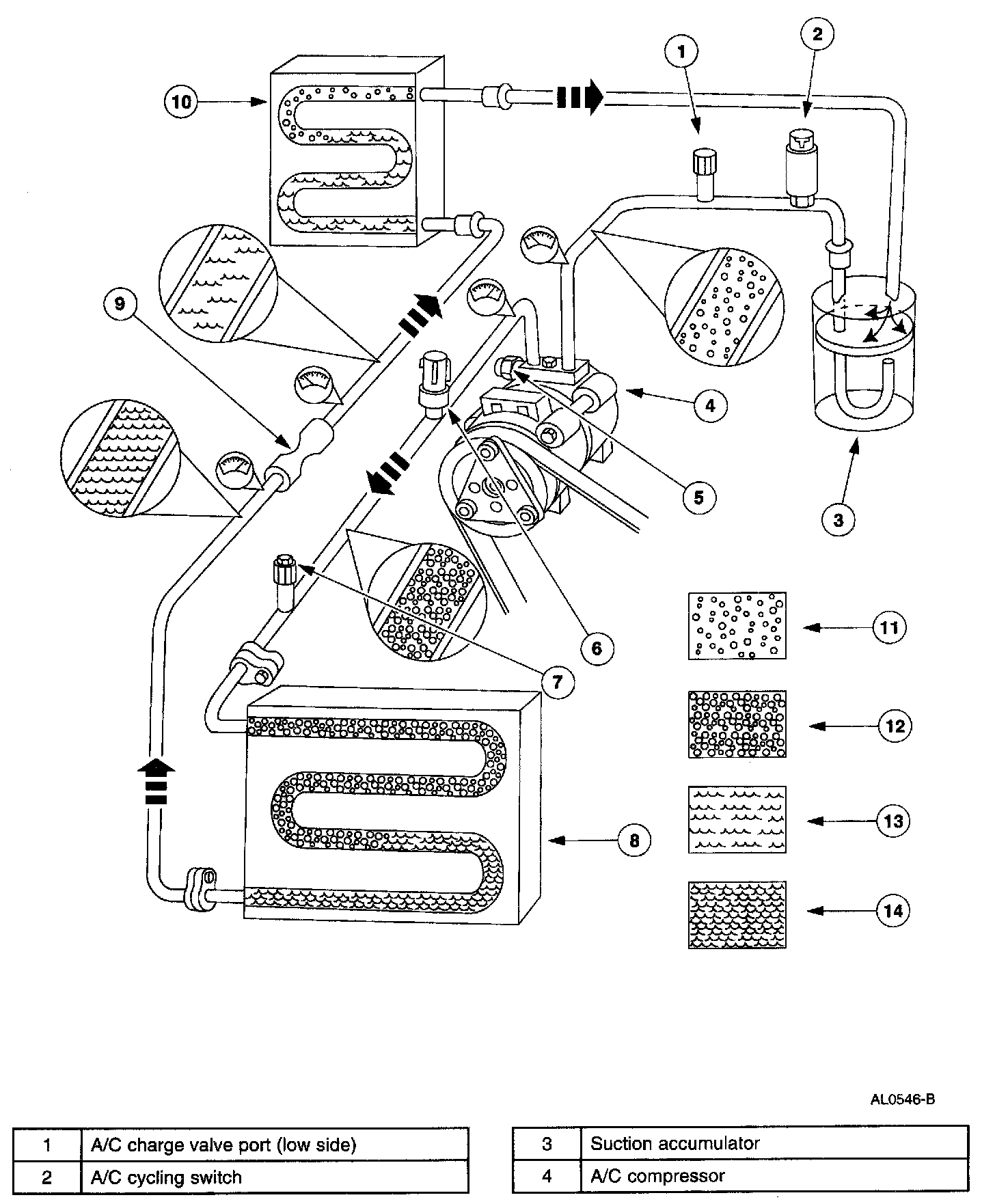

Clutch Cycling Orifice Tube Type Refrigerant System Part 1:

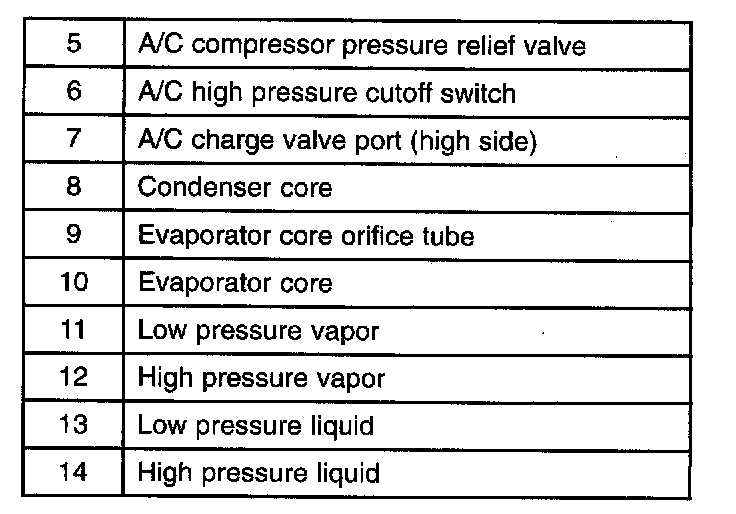

Clutch Cycling Orifice Tube Type Refrigerant System Part 2:
