Symptom Diagnostic Index

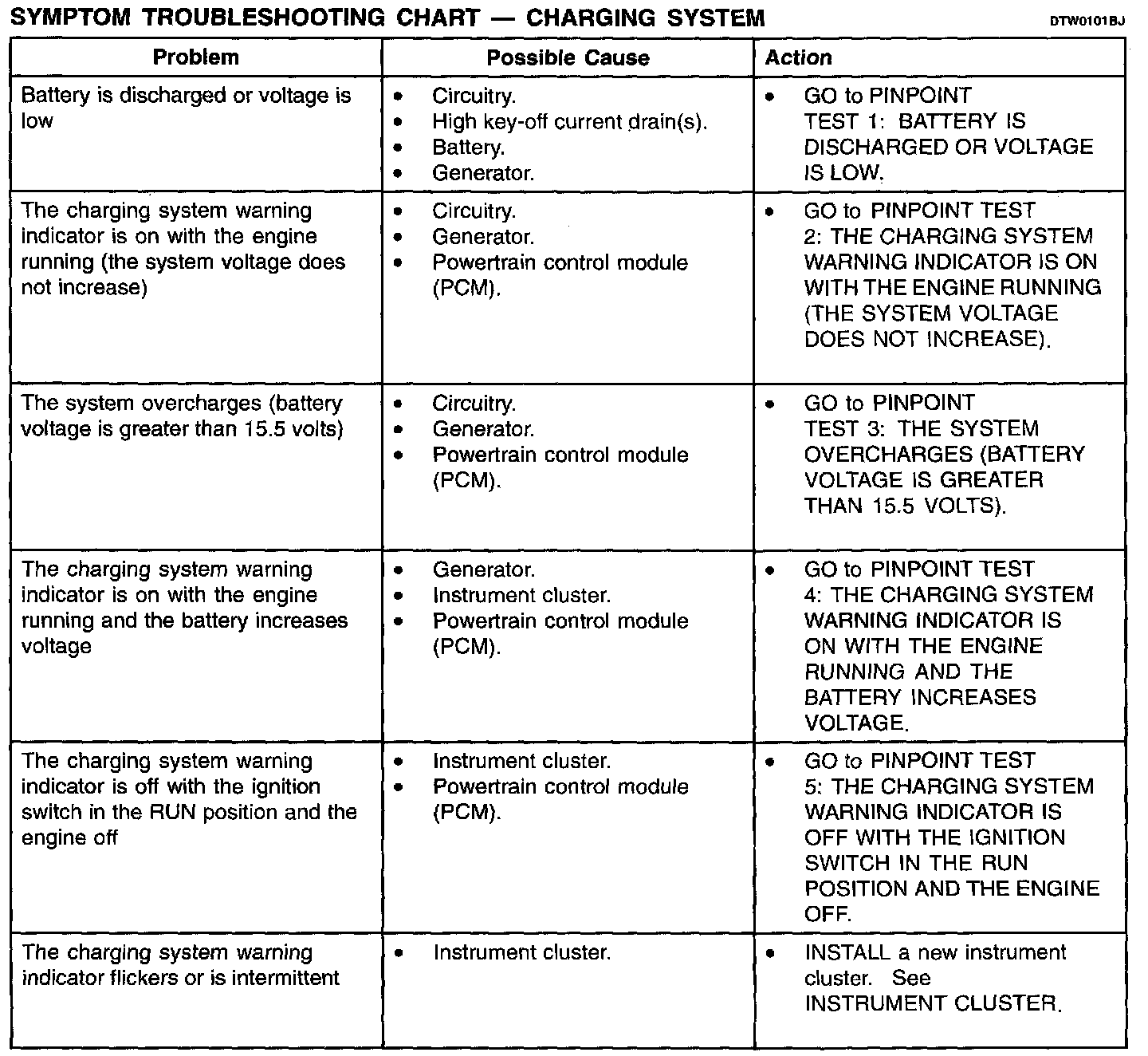

Symptom Troubleshooting Chart - Charging System Part 1:

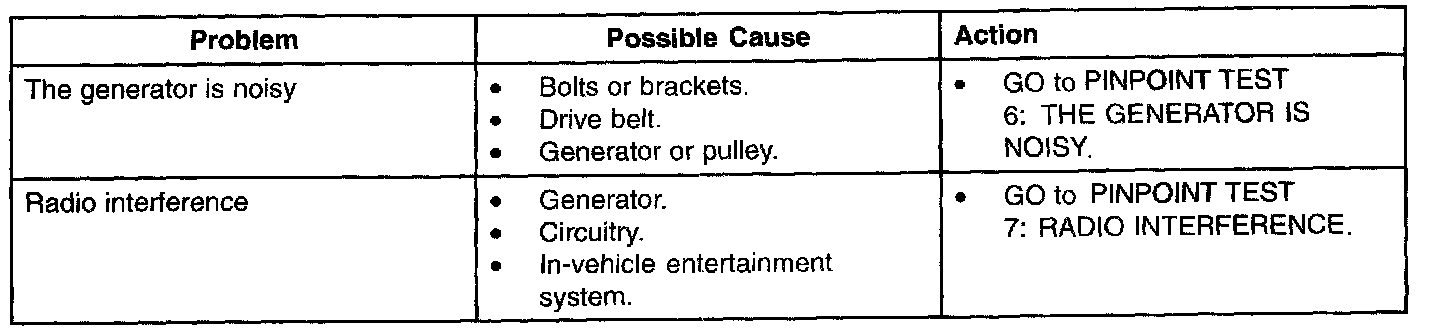

Symptom Troubleshooting Chart - Charging System Part 2:

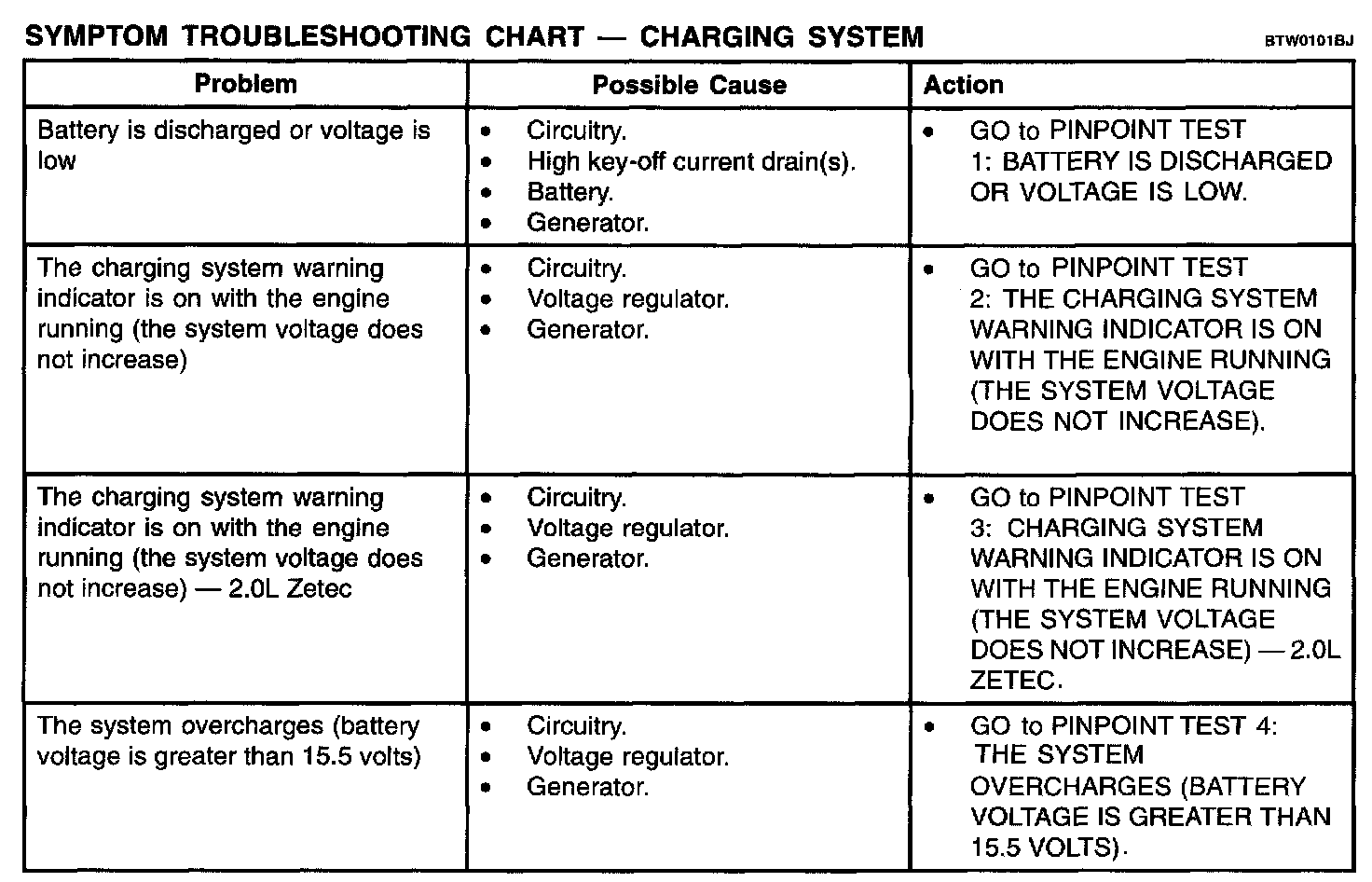

Symptom Troubleshooting Chart - Charging System Part 1:

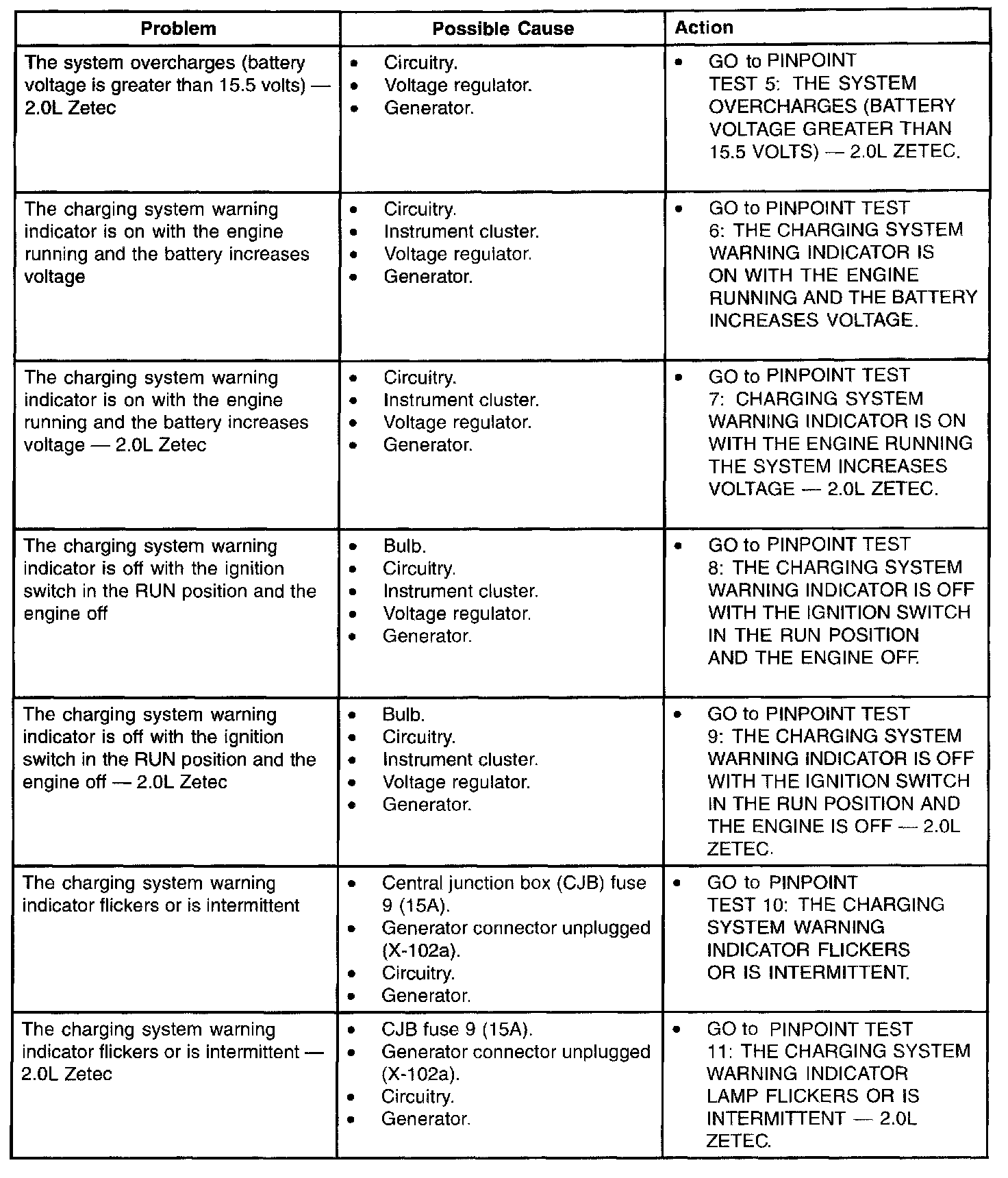

Symptom Troubleshooting Chart - Charging System Part 2:

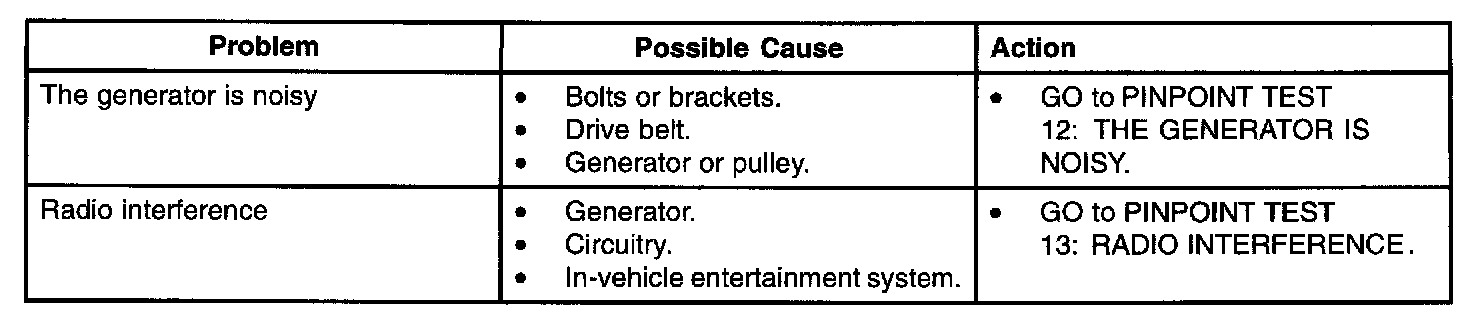

Symptom Troubleshooting Chart - Charging System Part 3:
