Camshaft Position Sensor: Service and Repair

CAMSHAFT POSITION (CMP) SENSOR REMOVAL / INSTALLATION - 4.0L




Removal and Installation

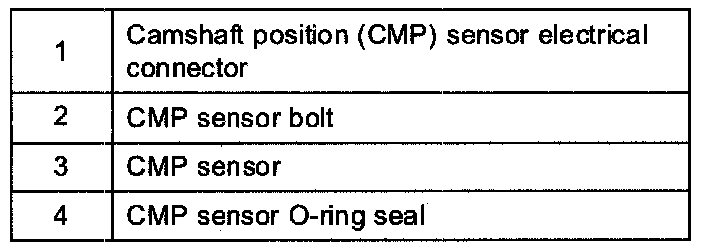

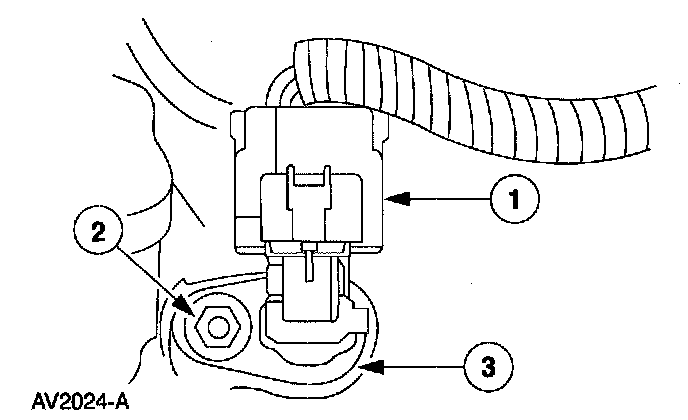

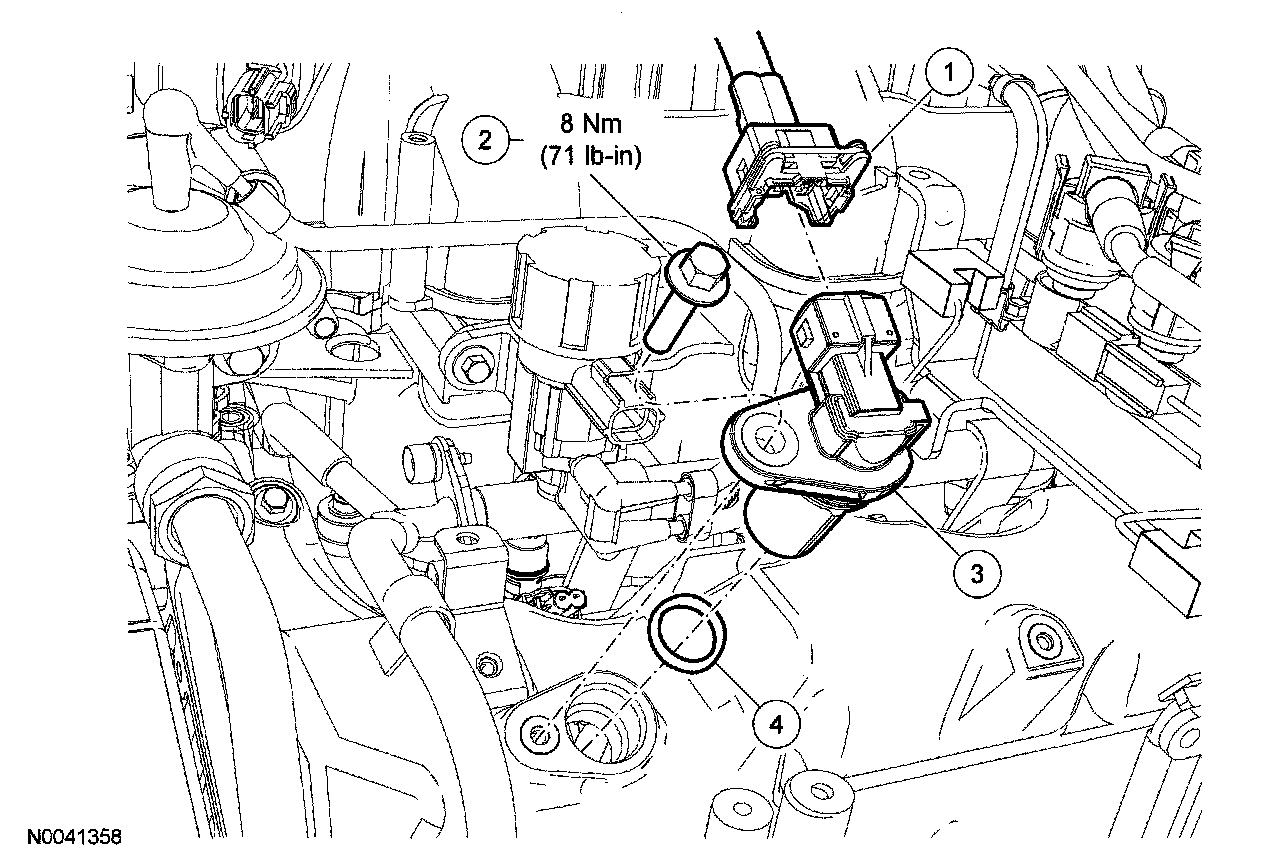

1. Remove the camshaft position (CMP) sensor.
1. Disconnect the electrical connector.

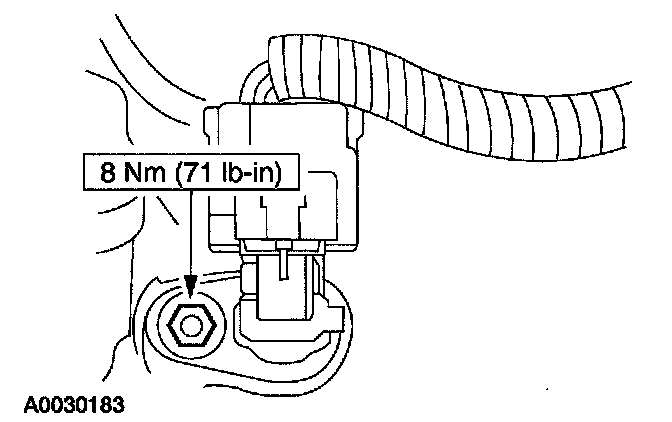

2. Remove the bolt.




3. Remove the sensor.

2. To install, reverse the removal procedure.
