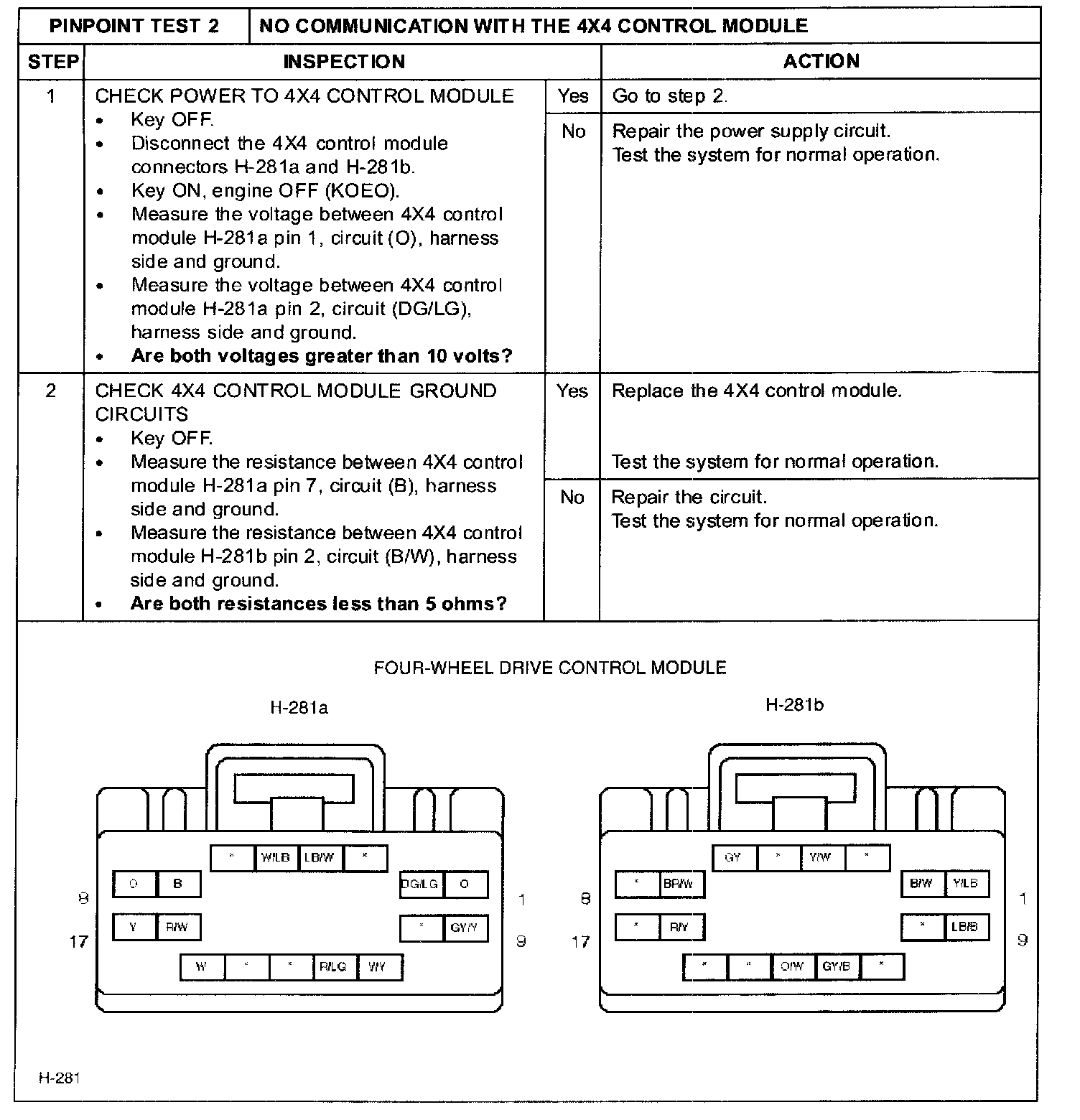

Transfer Case Electronic Shift Pinpoint Test 2: No Communication With The 4x4 Control Module


Test 1-2:





Transfer Case Electronic Shift Pinpoint Test 2: No Communication With The 4x4 Control Module
