Advanced Keyless System

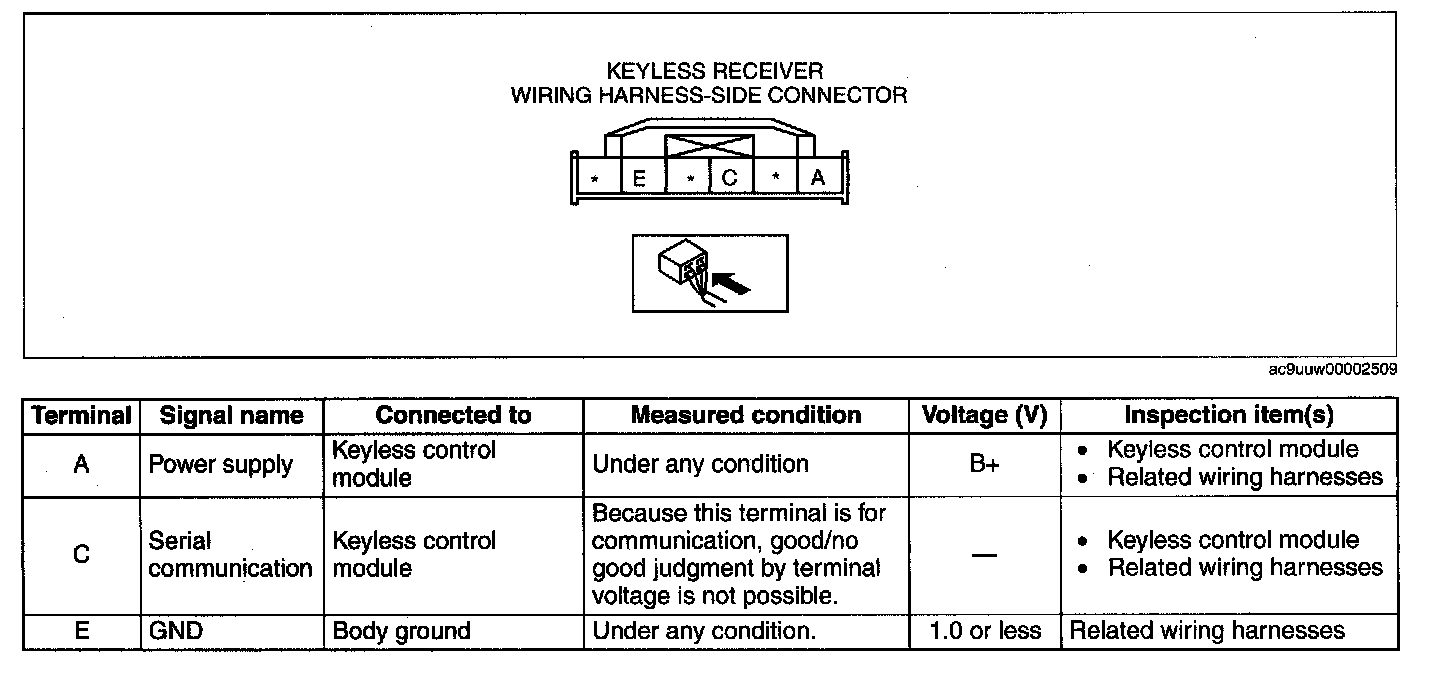

KEYLESS RECEIVER INSPECTION [ADVANCED KEYLESS SYSTEM]

Terminal A-E:




1. Measure the voltage at the auto light/wiper control module terminals as indicated above.
