Keyless Entry: Service and Repair

SECURITY ACCESS PROCEDURE

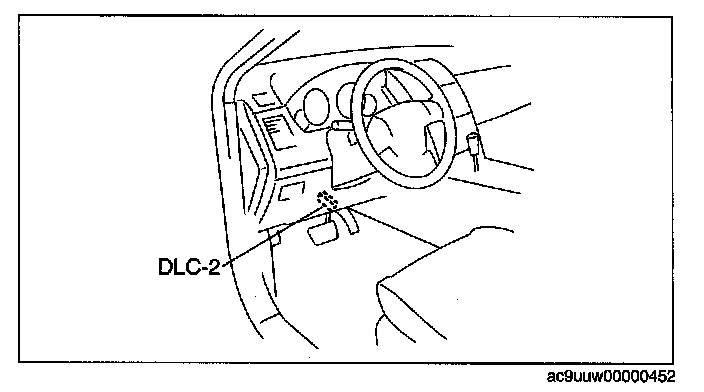

1. Connect the M-MDS to the DLC-2.
2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.
- When using the IDS (laptop PC)
1. Select the "Toolbox" tab.
2. Select "Body"
3. Select "Security"

- When using the PDS (Pocket PC)
1. Select "Programming". DLC-2

3. Then, select items from the screen menu in the following order.
1. Select "PATS Function"

4. Select the items to be performed from the following:
- Program Additional card key
- Card Key Code Erase and Program
- Steering Lock Unit Programming
- Program additional ignition key
- Ignition Key Code Erase and Program
- Customer Spare Key Programming Enable
- Customer Spare Key Programming Disable
- Parameter Reset

5. The security access begins and the M-MDS displays the "OUT-CODE".

NOTE: When "OUT-CODE" is first displayed, turning the ignition switch from the LOCK to the ON position 5 times will change the "OUT-CODE".

6. Input "IN-CODE" corresponding to "OUT-CODE" displayed on the M-MDS screen.
7. If the security access is successful, selected item can be performed.
