System Specifications

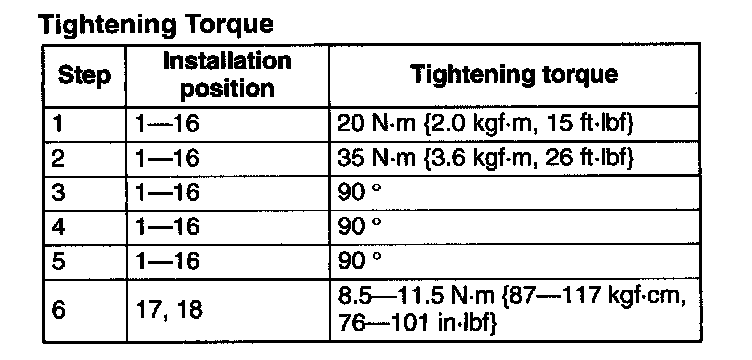

Tightening Torque:

Cylinder head
The cylinder head bolts must be replaced with new bolts. The bolts are torque-to-yield designed and cannot be reused.

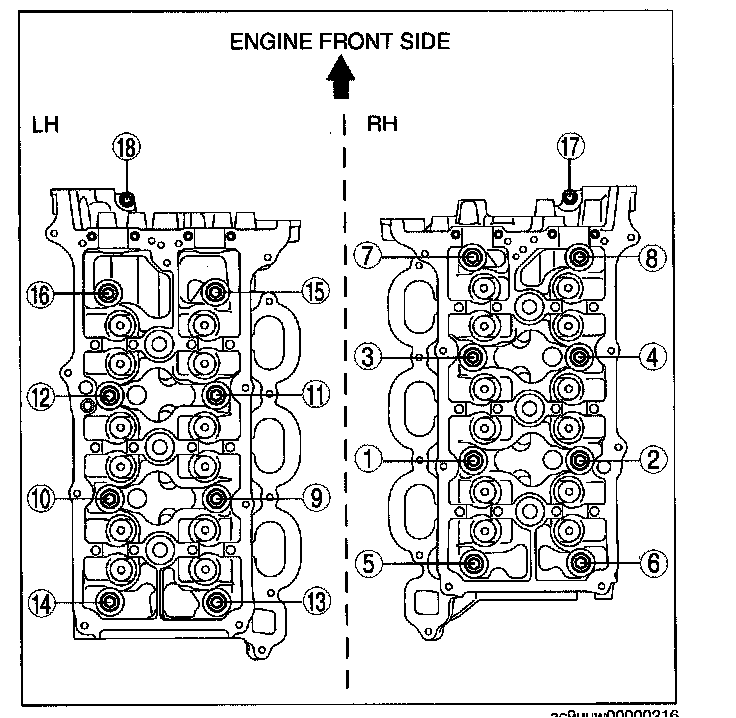

Tighten the cylinder head bolts in the order in 6 steps in the order shown in the figure.
