ENGINE TECHNICAL DATA [MZI-3.5]

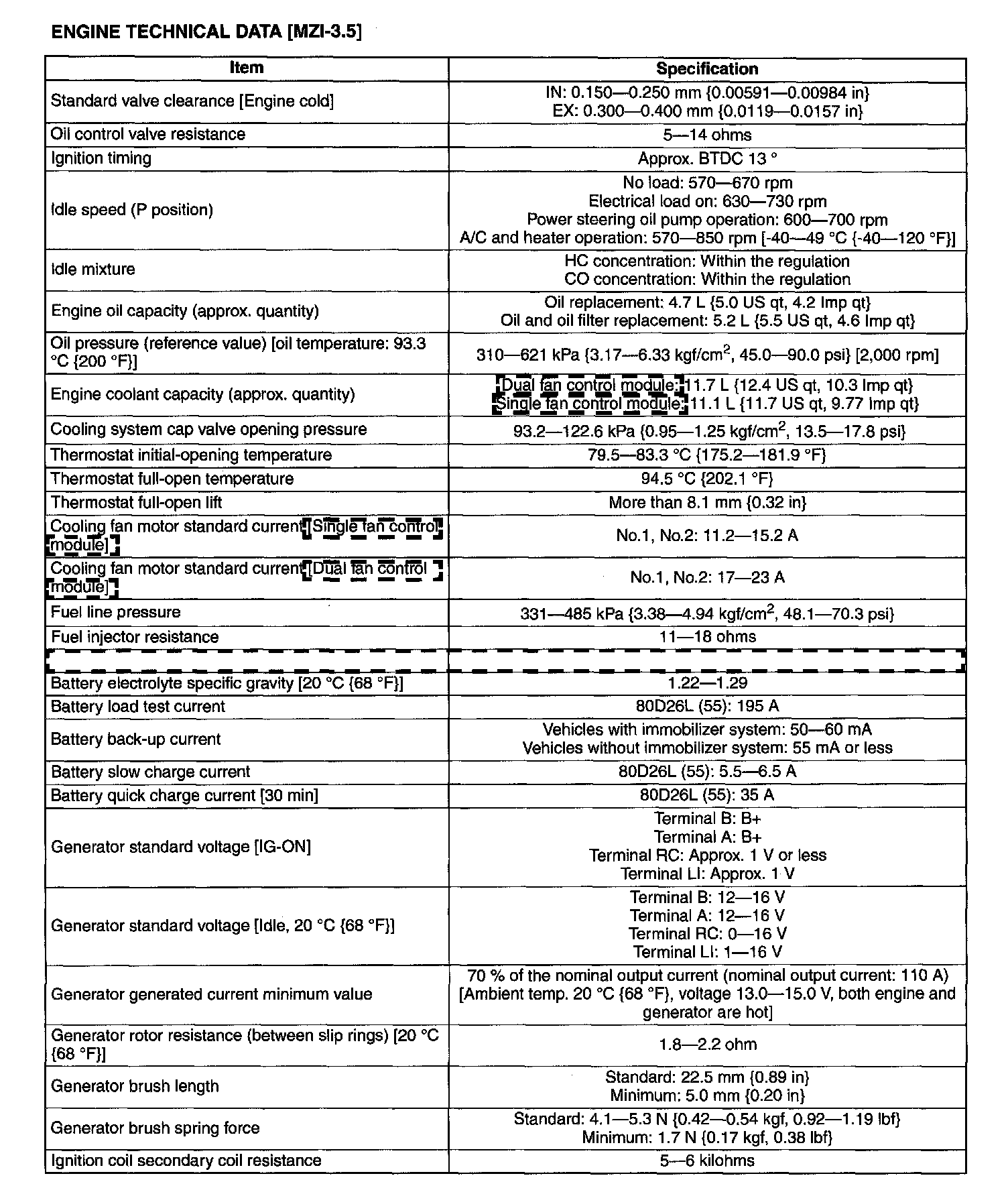

ENGINE TECHNICAL DATA [MZI-3.5] (Part 1):

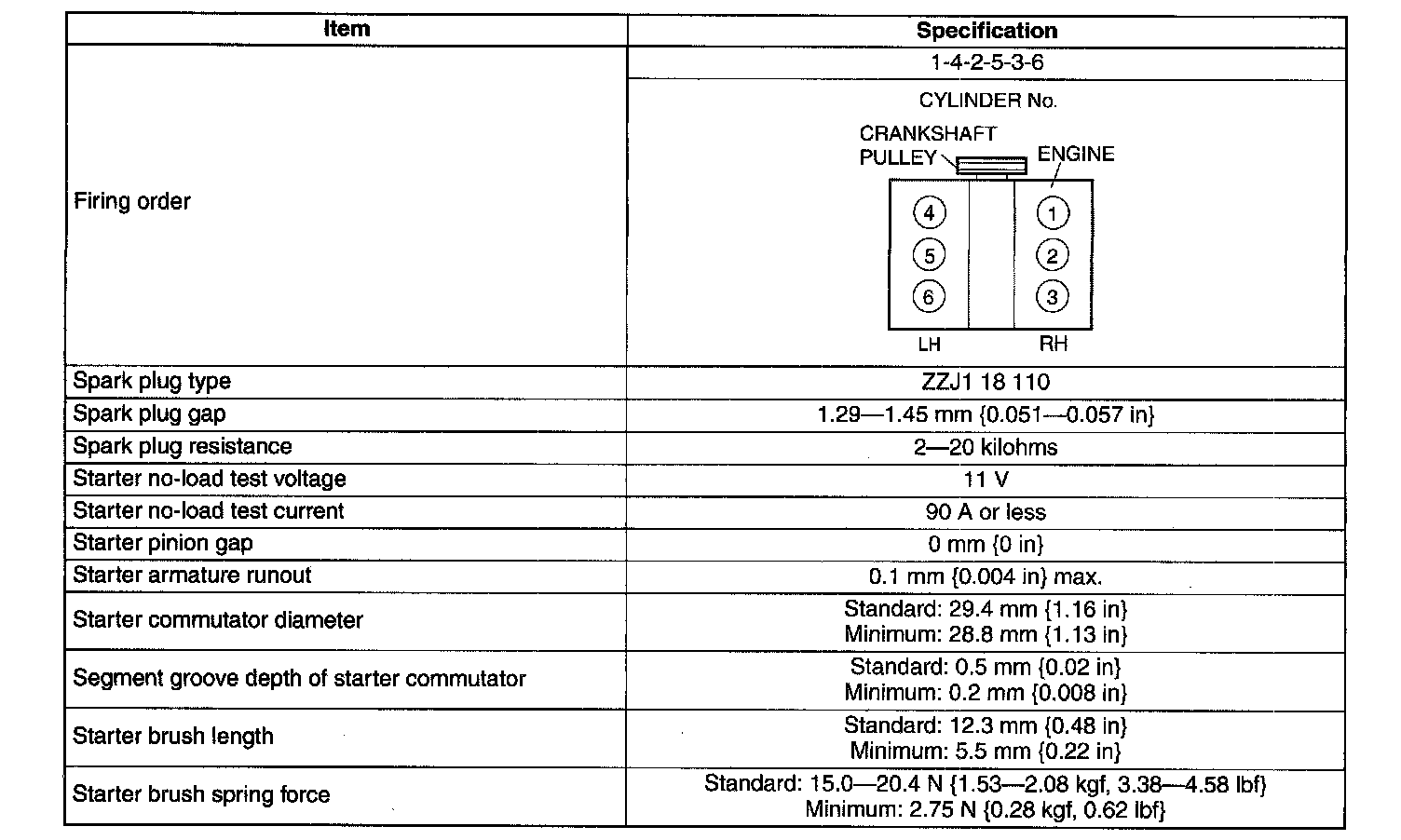

ENGINE TECHNICAL DATA [MZI-3.5] (Part 2):

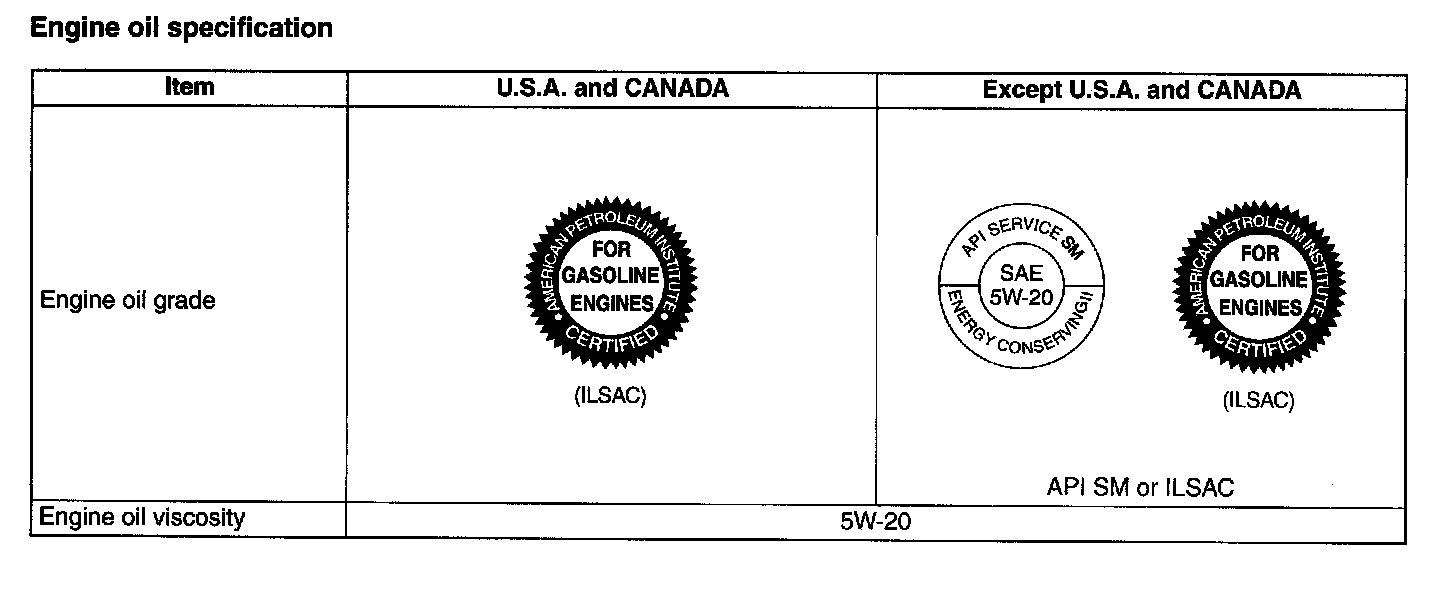

Engine oil specification:
