Timing Cover

Engine Front Cover
Tighten the engine front cover and No.3 engine mount bracket installation bolts in 4 steps in the order shown in the figure.

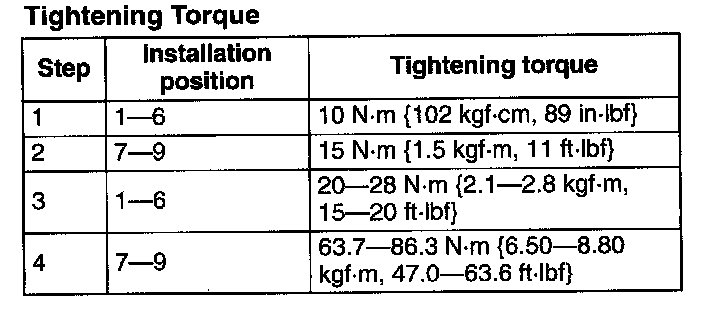

Tightening Torque:








Tighten the engine front cover installation bolts in the order in 2 steps in the order shown in the figure.
