Cylinder Head Assembly



-

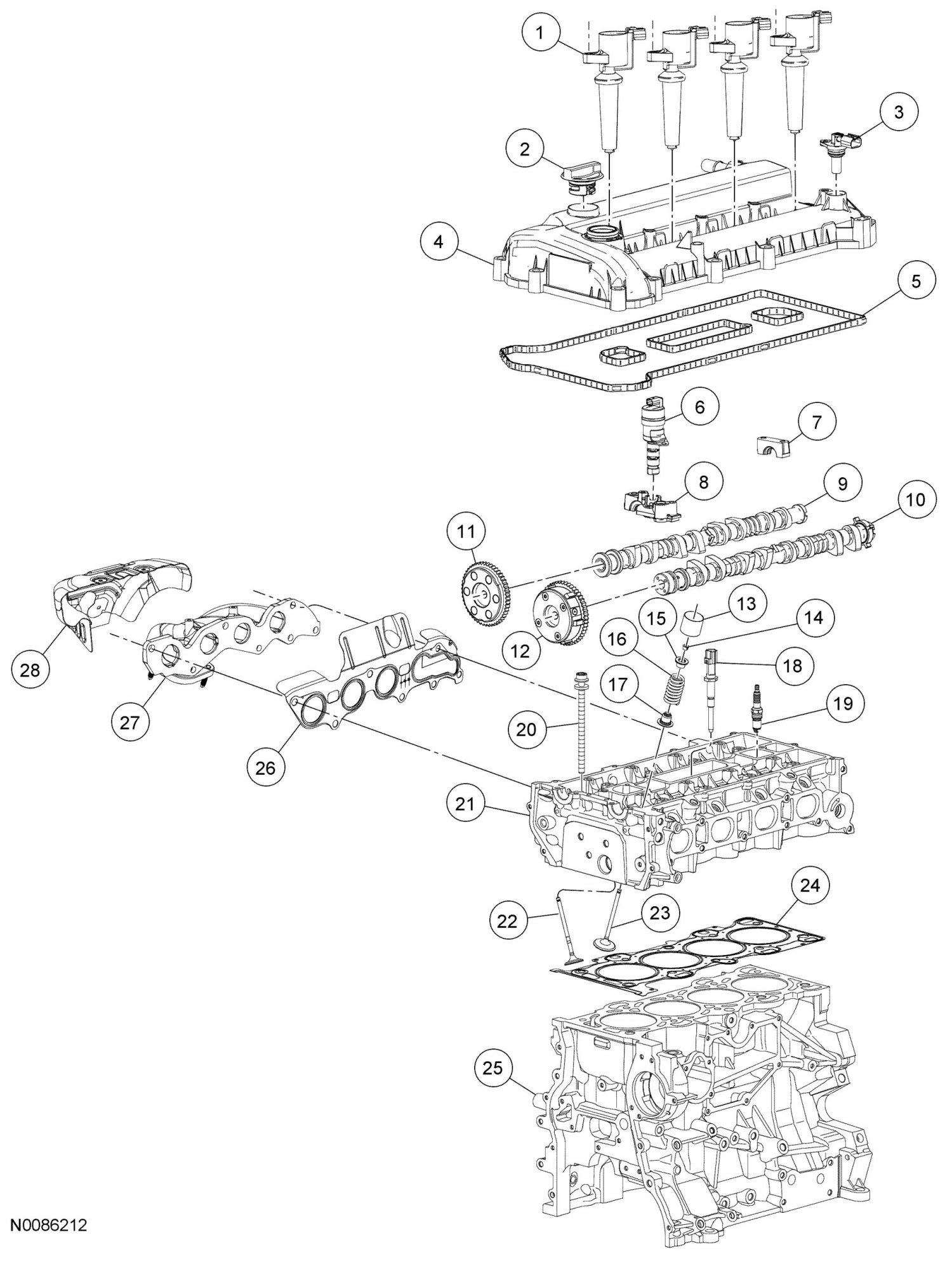

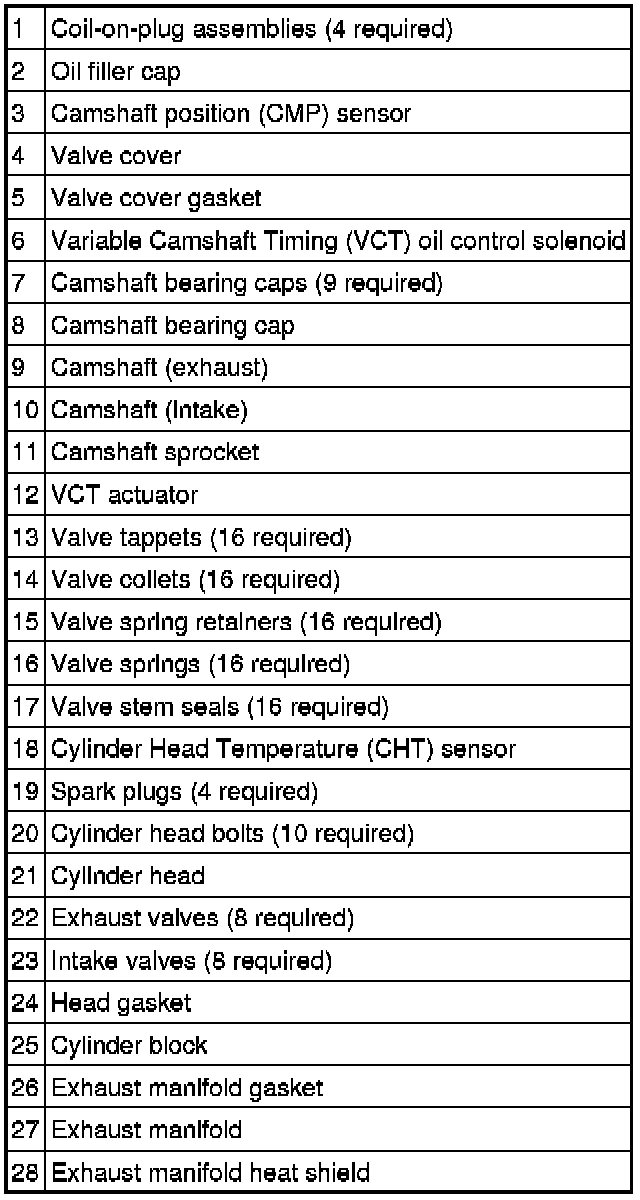

CYLINDER HEAD EXPLODED VIEW - 2.5L










1. For additional information, see the procedures.
