Engine Lubrication

-
ENGINE LUBRICATION COMPONENTS EXPLODED VIEW - 2.5L

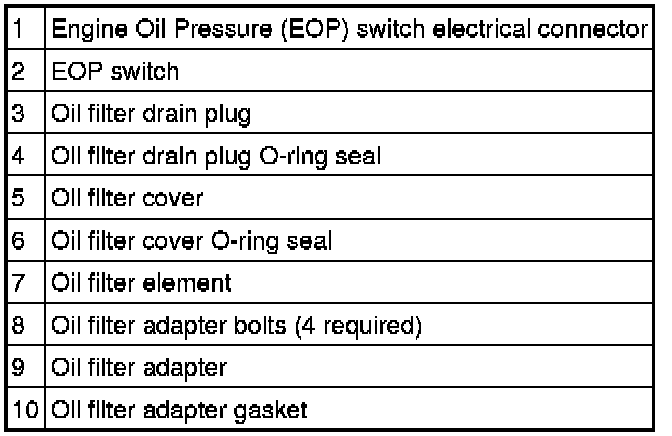

Oil Filter Adapter, Oil Filter Element and Engine Oil Pressure (EOP) Switch

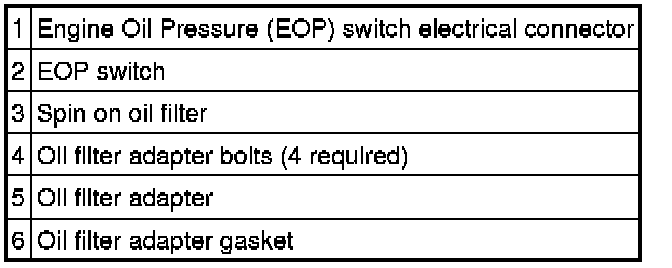

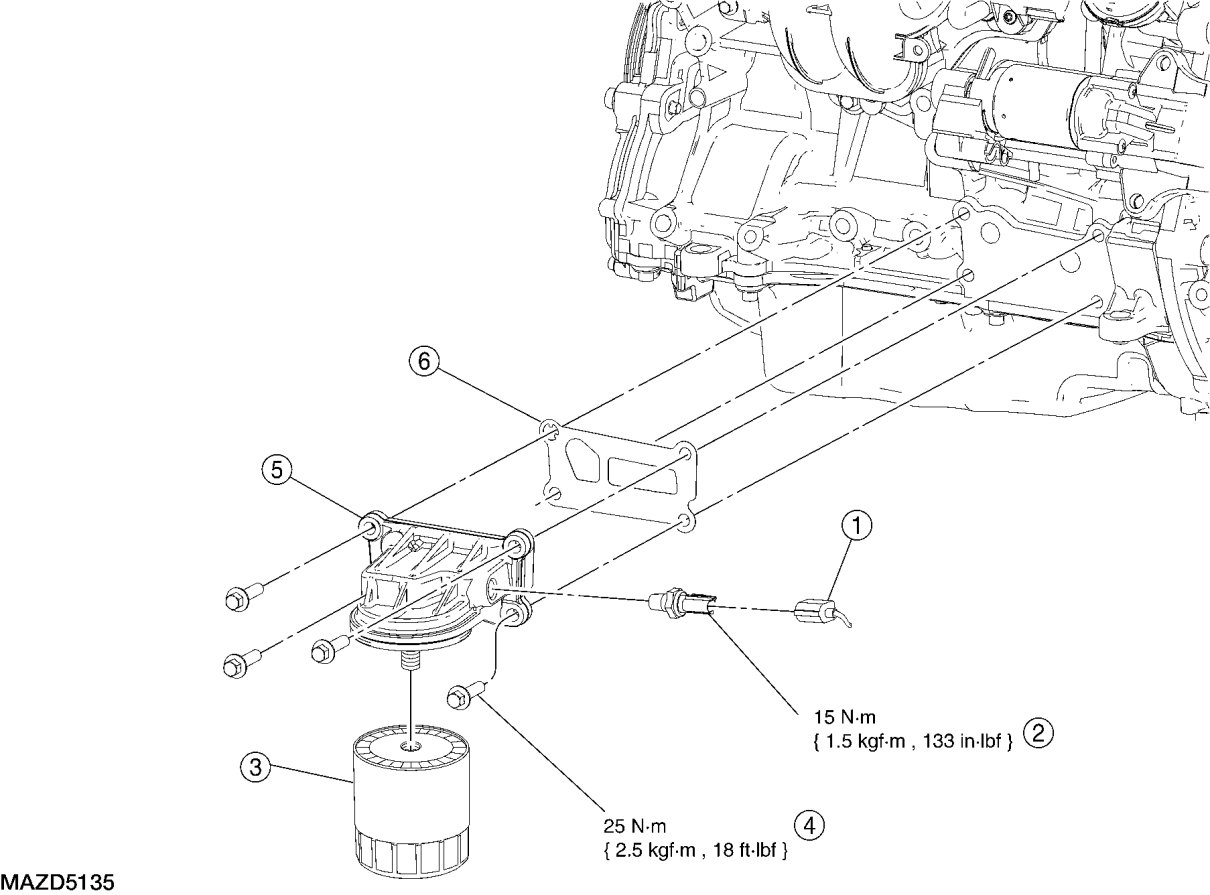

Oil Filter Adapter, Spin On Oil Filter and Engine Oil Pressure (EOP) Switch

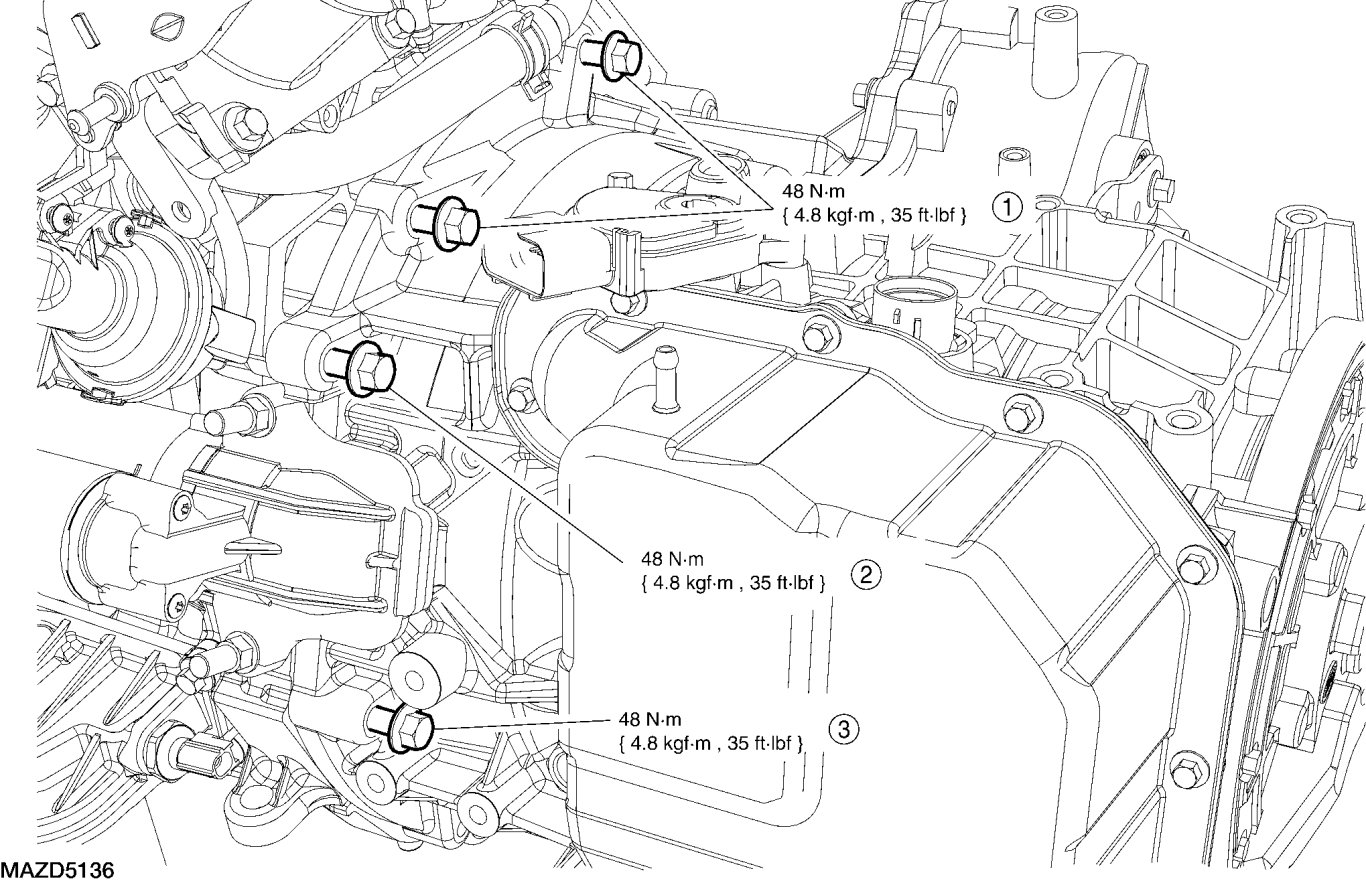

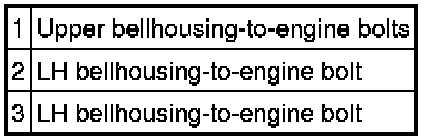

NOTE:Automatic transaxle shown, manual transaxle similar.

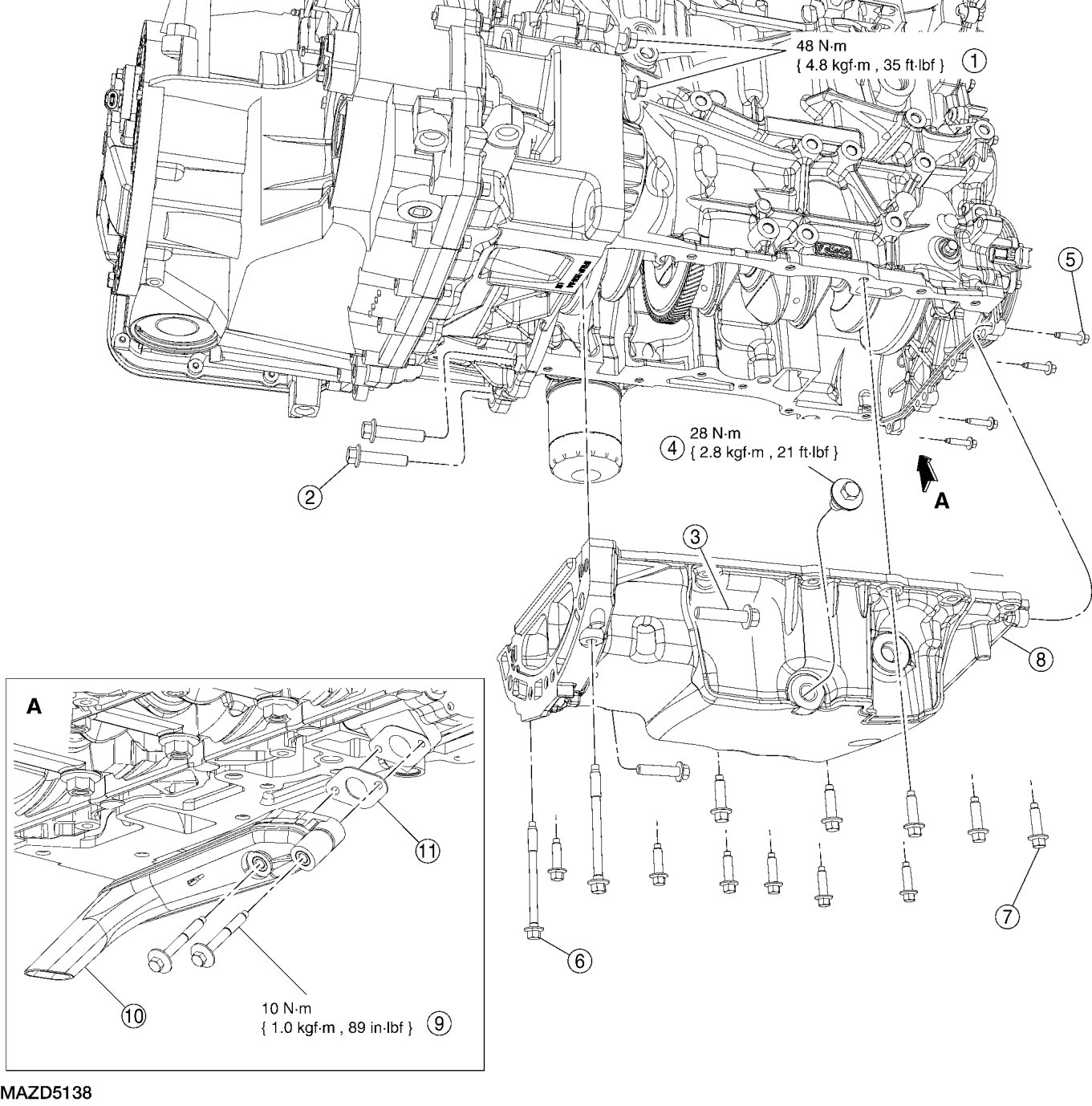

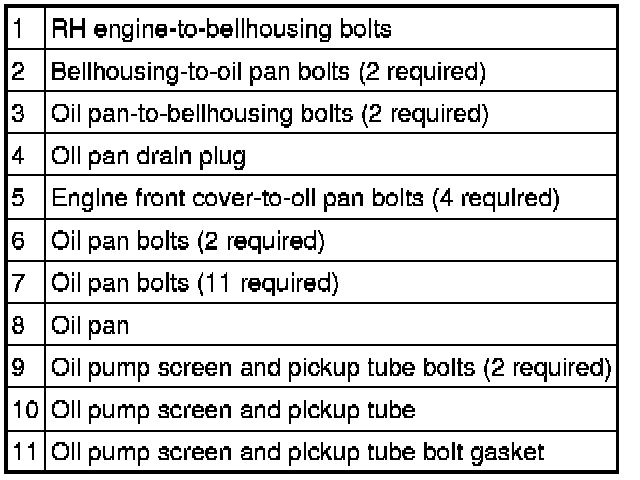

Oil Pan, Oil Pump Screen and Pickup Tube, Front Wheel Drive (FWD) Vehicles










Oil Pan, Oil Pump Screen and Pickup Tube, All Wheel Drive (AWD) Vehicles










Oil Pan, Oil Pump Screen and Pickup Tube


















1. For additional information, see the procedures.
