Home >> Mazda Truck >> 2009 >> Tribute 4WD L4-2.5L >> Repair and Diagnosis >> Diagrams >> Components >> Coil on Plug (COP) 4

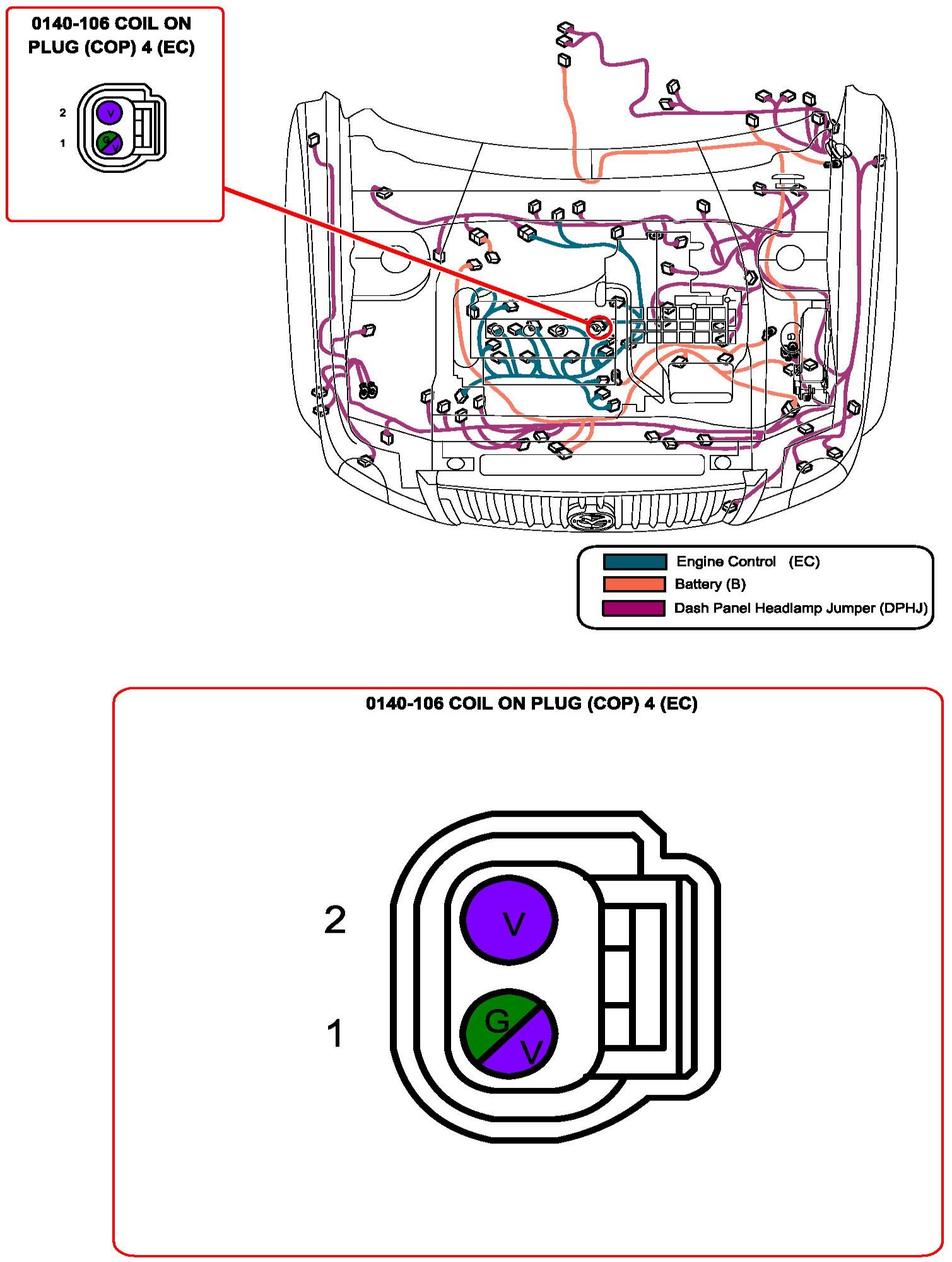

Coil on Plug (COP) 4

Coil On Plug (COP) 4:
