No. 4 No Temperature Control With Front Climate Control Unit
No. 4 No Temperature Control With Front Climate Control Unit

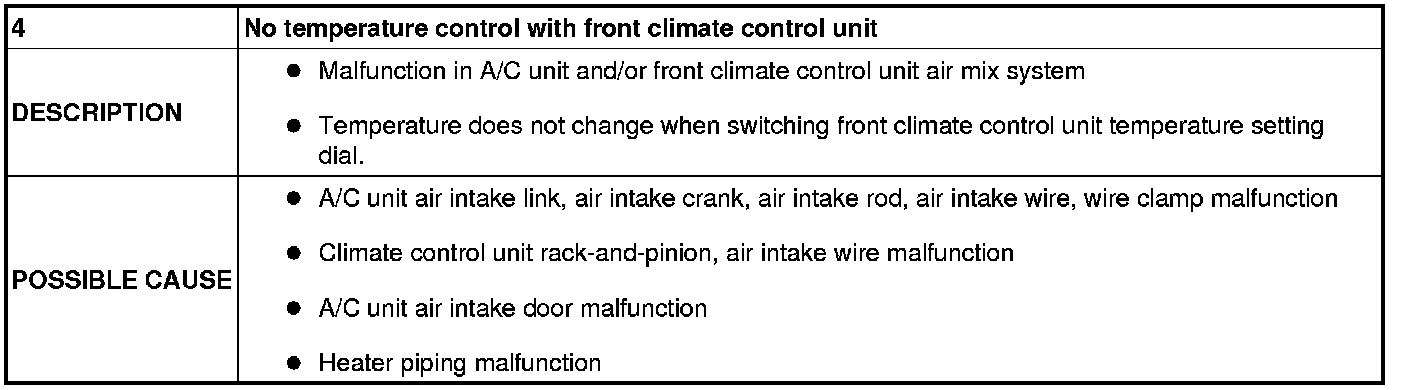

NO.4 NO TEMPERATURE CONTROL WITH FRONT CLIMATE CONTROL UNIT

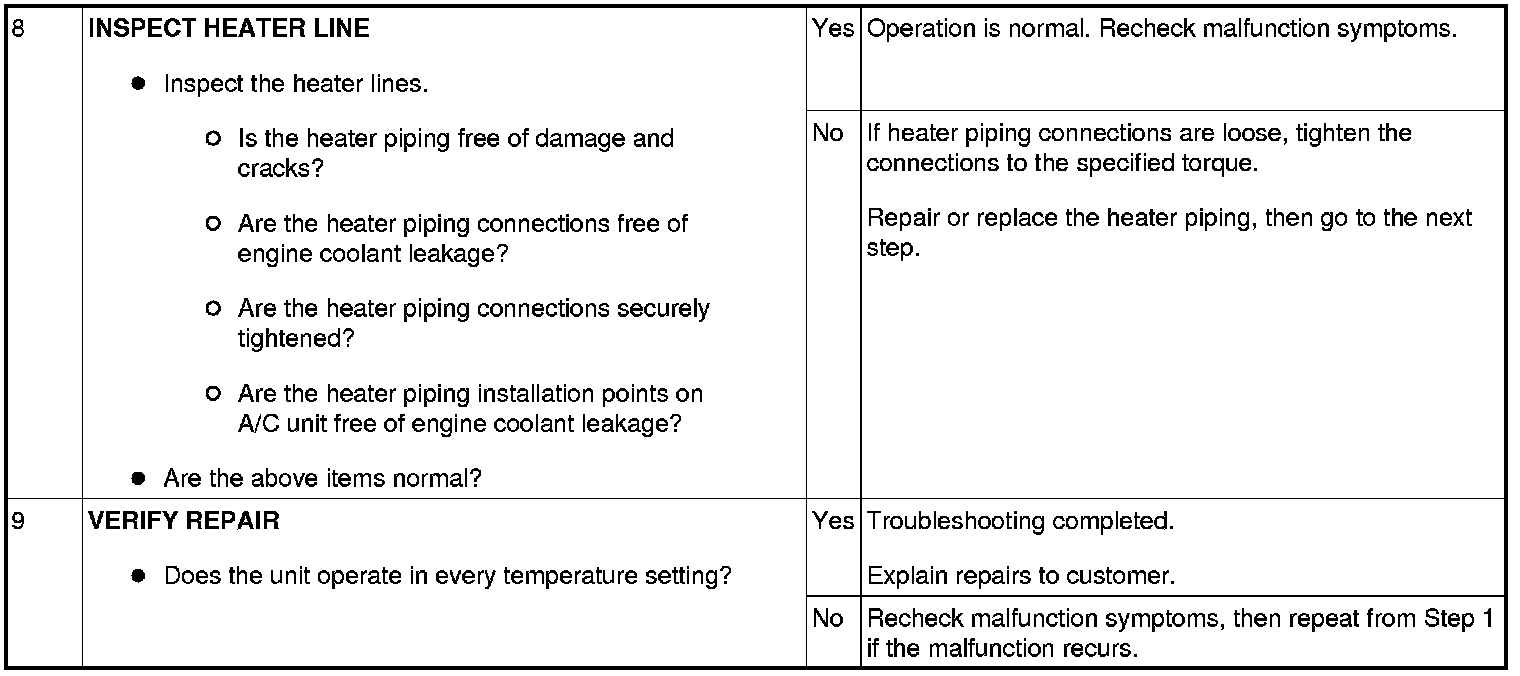

Diagnostic procedure
