Anti-After Burn Valve

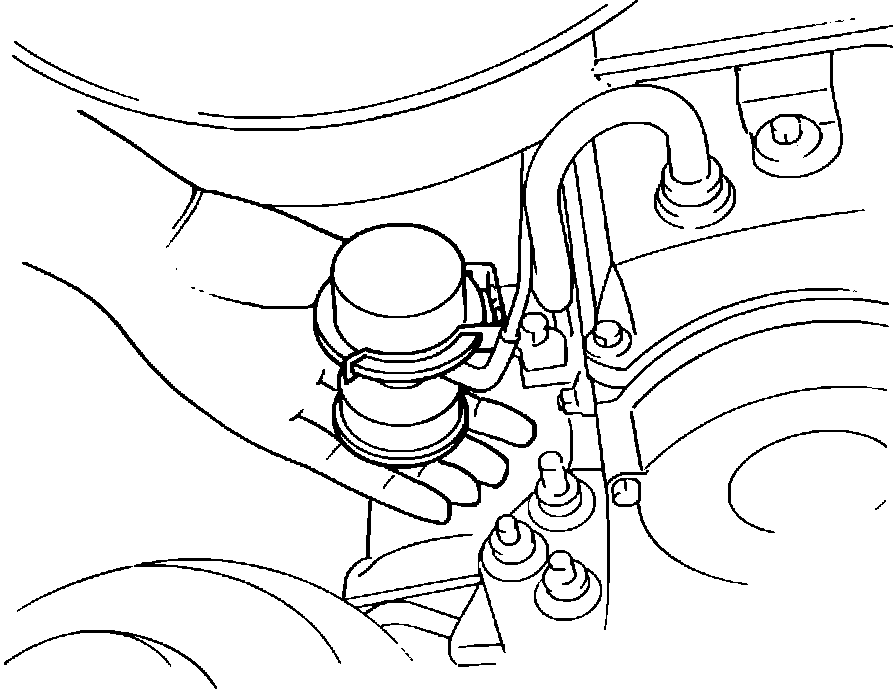

Fig. 35 Anti-Afterburn Valve.:

1. Start the engine.
2. Block the intake port of the anti-afterburn valve, Fig. 35, and make sure the engine speed does not change. Increase the engine speed and quickly decelerate.
3. Make sure air is sucked into the intake port for 1-2 seconds after the accelerator is released.
