Brake Warning Indicator: Testing and Inspection

INSPECTION OF CIRCUIT AND PARTS
1. Disconnect the connector from the brake fluid level sensor.

Brake System Warning Light Inspection:

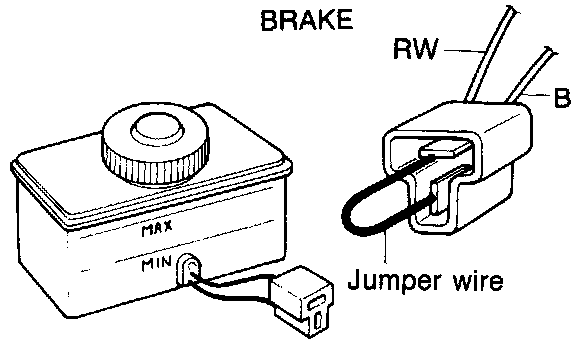

2. Connect a jumper wire between "RW" and "B" terminal (body ground).
3. Start the engine and check that the BRAKE warning light illuminates.

CAUTION:
- Be sure that the parking brake is fully released before checking.

4. If there is no illumination, check the fuse, bulb and wiring harness.
