Primary Coil

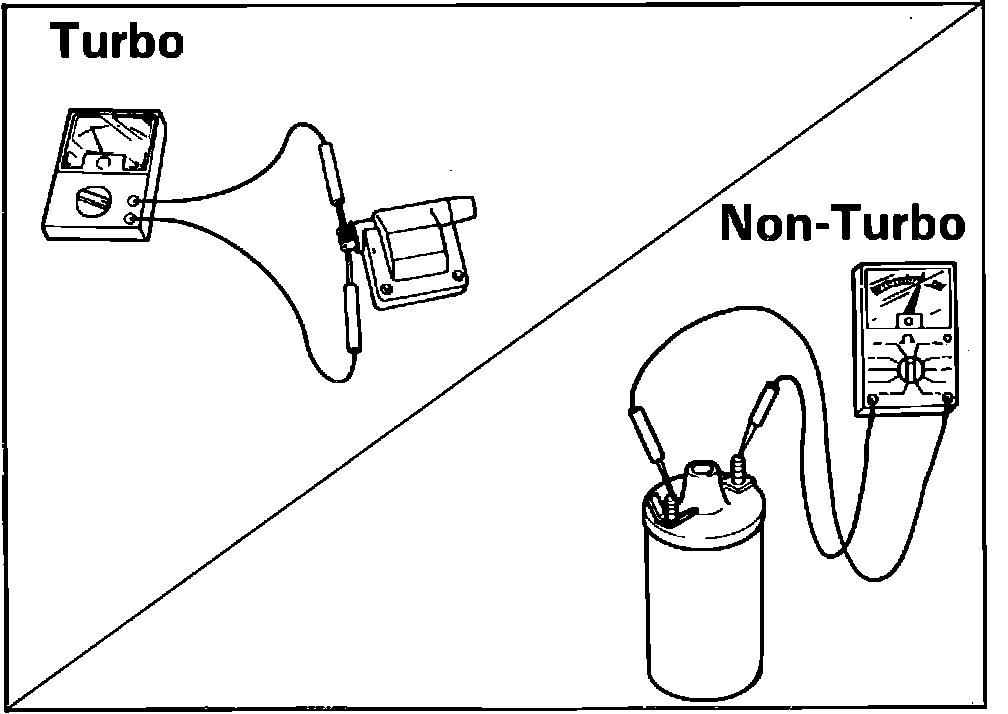

Fig. 11 Testing ignition coil primary:
1. Ensure that there is .72-.88 ohms resistance between the primary terminals, Fig. 11. of the coil on turbocharged and 1.04-1.27 ohms resistance at 68~F on non-turbocharged.
1. Ensure that there is .72-.88 ohms resistance between the primary terminals, Fig. 11. of the coil on turbocharged and 1.04-1.27 ohms resistance at 68~F on non-turbocharged.
