Component Locations

Component Locations:

UNDERHOOD COMPONENTS

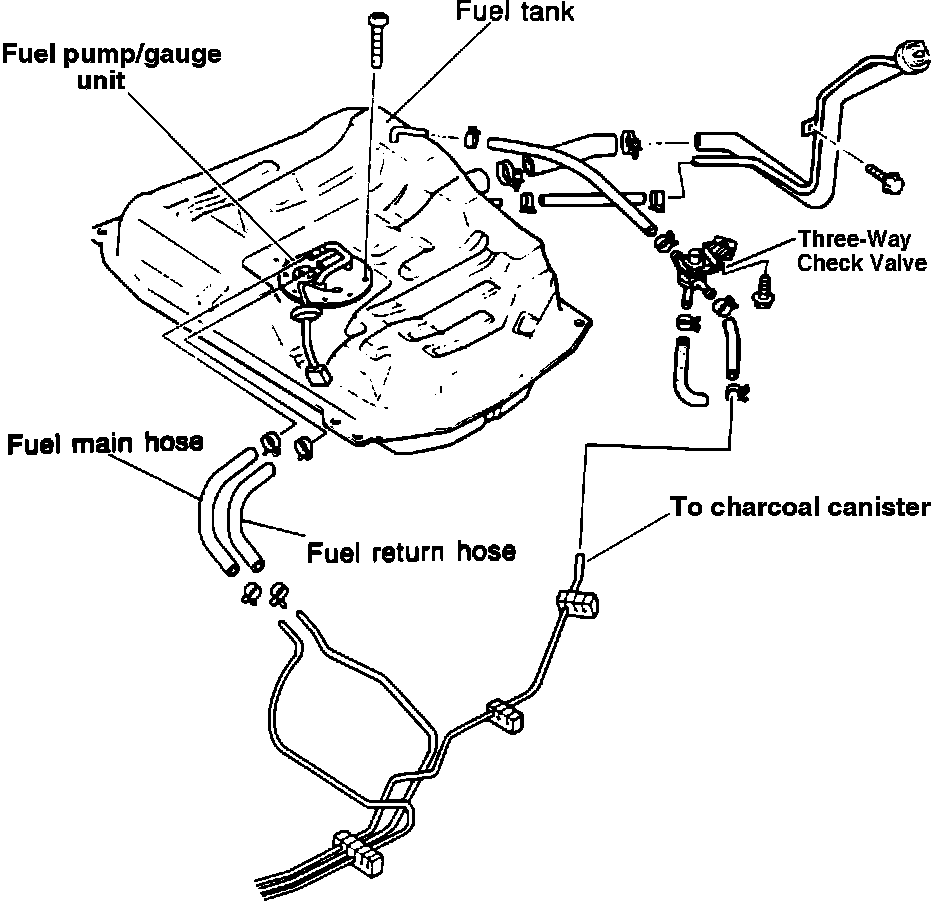

Fuel Tank Assembly:

FUEL TANK COMPONENTS

BY-PASS AIR CONTROL (BAC) VALVE
Mounted on the left side of the intake manifold.

DASHPOT
Mounted on the throttle body.

FUEL FILTER
Mounted on the center of the firewall, behind the engine.

FUEL INJECTORS
On the intake manifold, near the cylinder head, secured by the fuel rail.

FUEL PRESSURE REGULATOR
Mounted on the end of the fuel rail (delivery pipe).

FUEL PUMP
Located in the fuel tank.

FUEL PUMP RELAY (CIRCUIT OPEN RELAY)
Under the dashboard, in the center console.

FUEL RAIL
On the intake manifold, between the cylinder head and the intake manifold dynamic chamber.

THROTTLE BODY
Mounted on the intake manifold dynamic chamber.
