Deceleration Control System

PREPARATION

Before checking this system, follow these directions:
Switch off all accessories.

Tachometer Connection:

Connect a tachometer to the check connector.
Warm up the engine to normal operating temperature.

DASHPOT

1. Open the throttle valve fully, then push the dashpot rod with a finger and check that it goes into the dashpot slowly.

Dashpot Plunger Test:

2. Release the rod and check that it comes out quickly.
3. Replace, if necessary.
4. Warm up the engine and run it at idle.
5. Connect a tachometer, and increase the engine speed to 4,000 rpm.

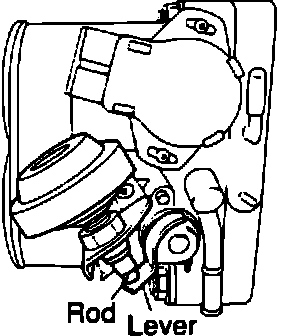

Relationship Between Dashpot And Throttle Lever:

6. Slowly decrease the engine speed and check that the lever touches the dashpot at 3,500±300 rpm.

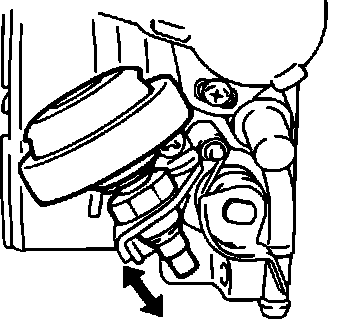

7. If not as specified, loosen the locknut and turn the dashpot to adjust.

FUEL CUT SYSTEM

Tester Connection:

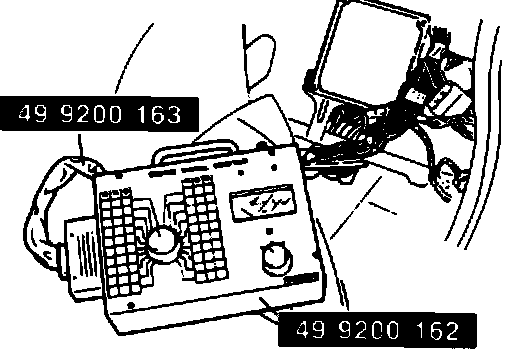

1. Connect the Engine Signal Monitor (SST Mazda Part# 49 9200 162) using the adapter harness (Mazda Part# 49 9200 163) between the wiring harness and the engine control unit.
2. Set 3C, 3E, and 3F positions on the SST to check the injectors.

SELECTOR SWITCH INJECTORS

3C No. 3 and No. 4
3E No. 1 and No. 2
3F No. 5 and No. 6

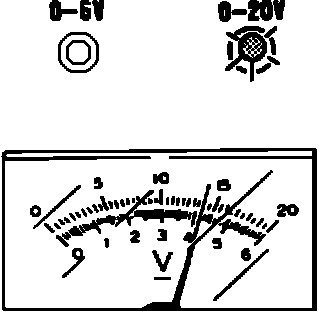

Test Meter -- Both Lamps Lit:

3. Check that both indicator lamps flash at idle.
4. Increase the engine speed to 4,000 rpm, then suddenly decrease it.

Test Meter -- Red Lamp Lit:

5. Check that only the red indicator lamp illuminates during deceleration.
