Steering Column: Service and Repair

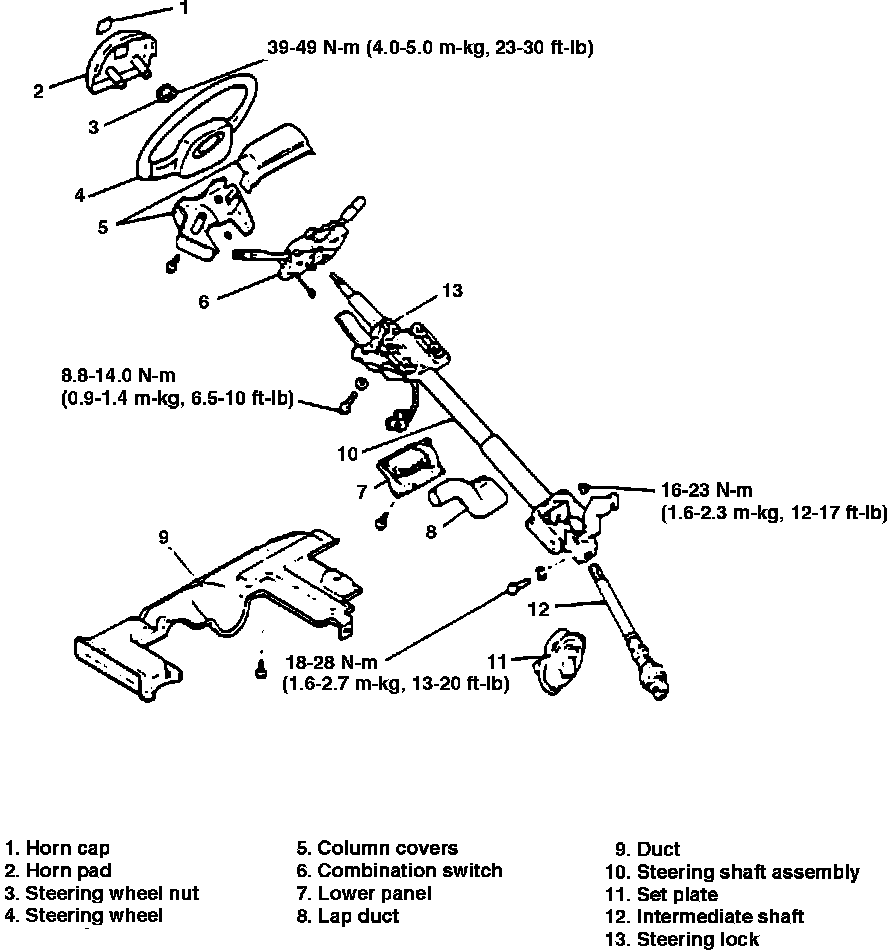

Fig. 7 Exploded View Of Steering Column.:

Refer to Fig. 7 when performing steering column service. On 929, follow airbag disarming and arming procedures, refer to Air Bags and Seat Belts/Air Bags (Supplemental Restraint Systems)/Service and Repair.
