Step 2

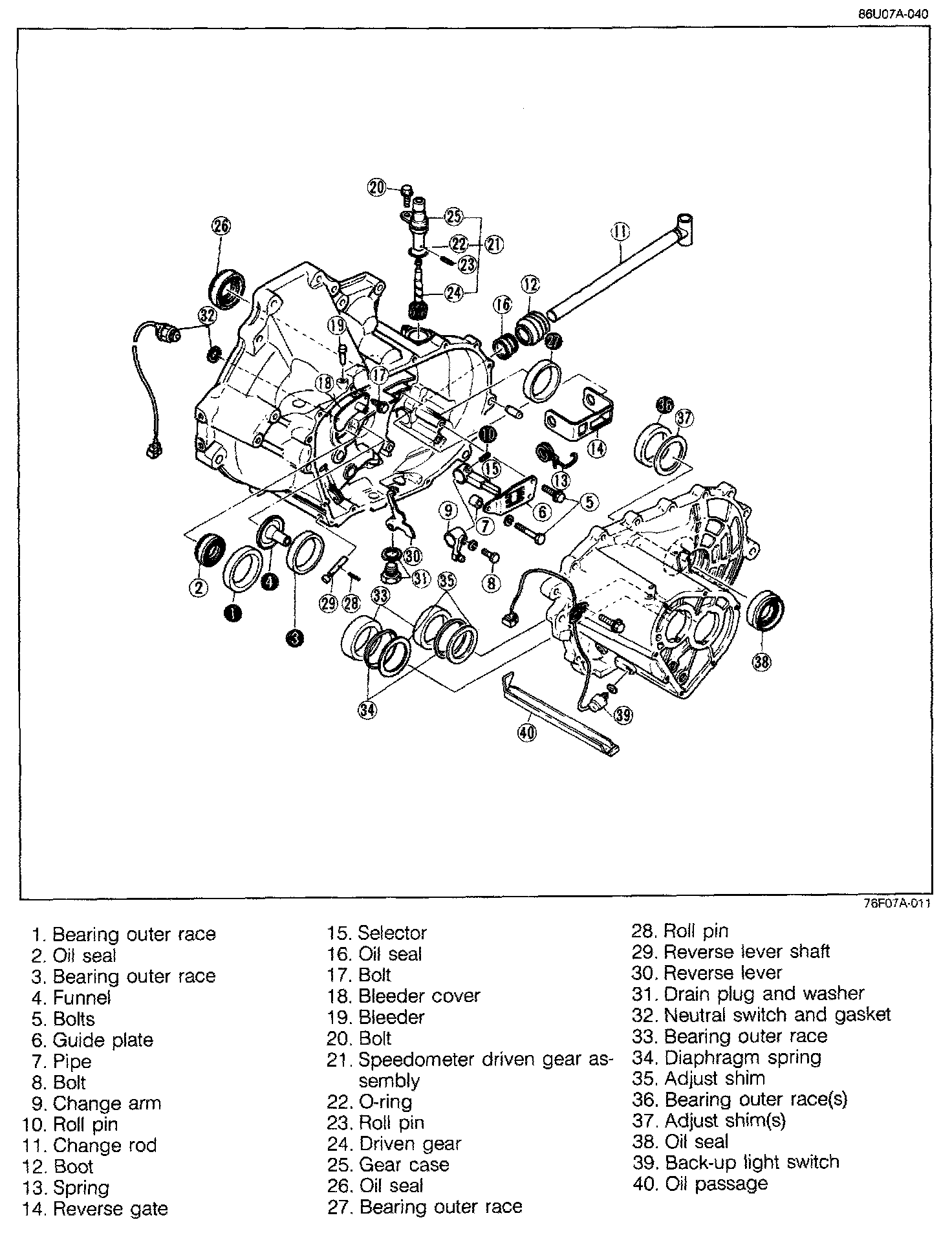

Disassemble in the sequence shown in the image referring to the disassembly note for specially marked parts.

Disassembly Note

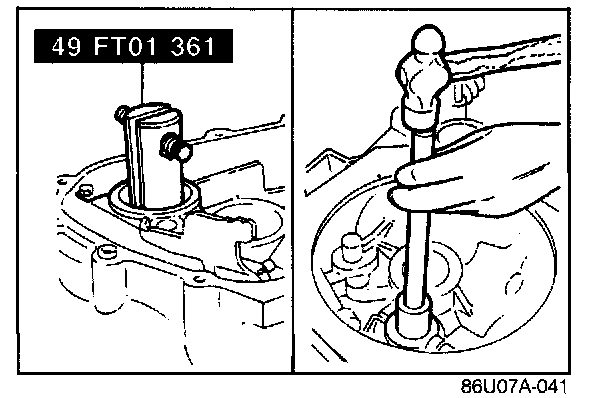

Bearing outer race (primary shaft)




Remove the bearing outer race with the SST.

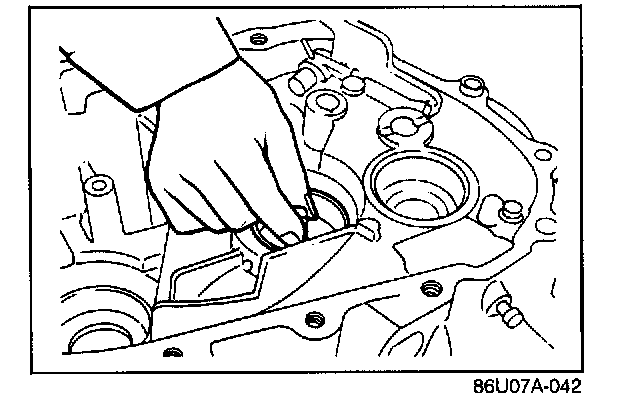

Bearing outer race (secondary shaft)




Remove the bearing outer race by lifting out the funnel and race together.

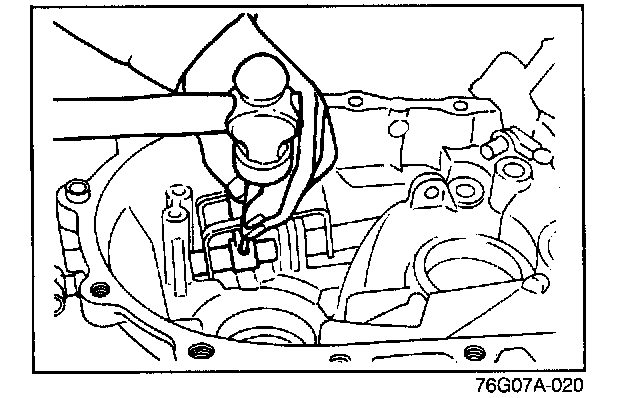

Roll pin




Align the groove for removal of the clutch housing pin with the position of the roll pin, then tap the pin out using a pin punch.

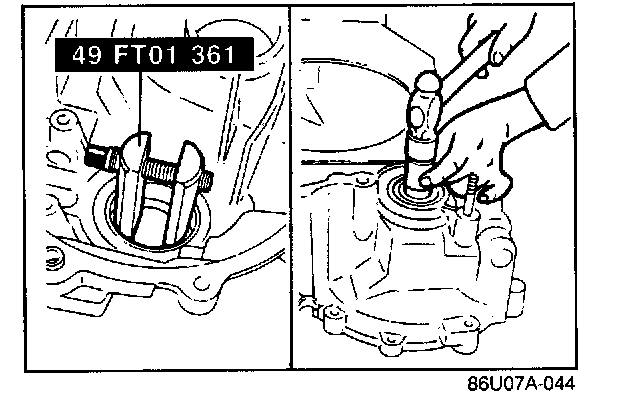

Bearing outer race (differential)




Remove the bearing outer race with the SST.
