Blower Motor Resistor: Testing and Inspection
Inspection

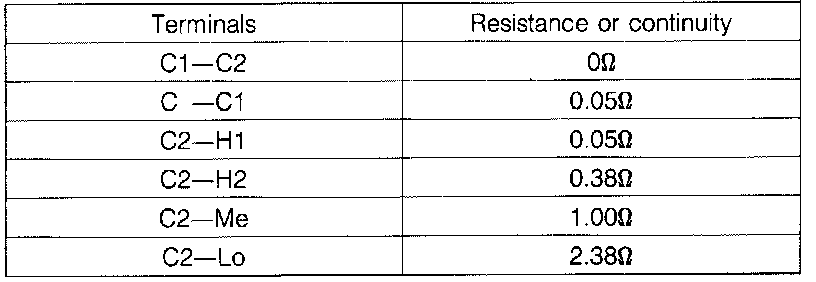

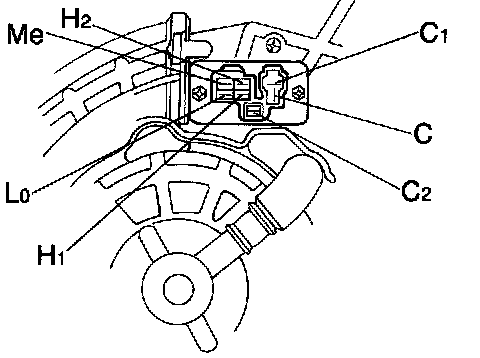

Check the resistance or continuity between terminals with an ohmmeter.
