Blower Unit

Blower Unit Removal




1. Remove the undercover and glove box.

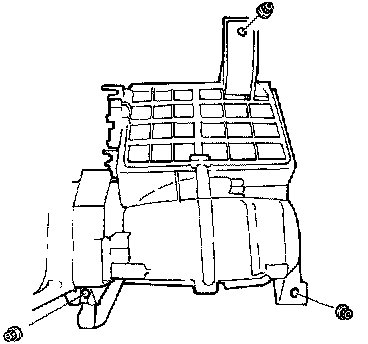

2. Remove the nuts, then remove the blower unit.


Disassembly and Assembly




Disassemble and assemble as shown.


Installation
Install in the reverse order of removal.
