Heater Unit

Removal




1. Drain the engine coolant.
2. Remove the instrument panel.

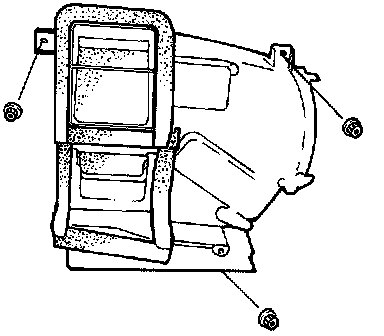

3. Remove the nuts and the heater unit.

Installation
Install in the reverse order of removal.


Disassembly and Assembly




Disassemble and assemble as shown.
