Air Injection Control Valve: Service and Repair

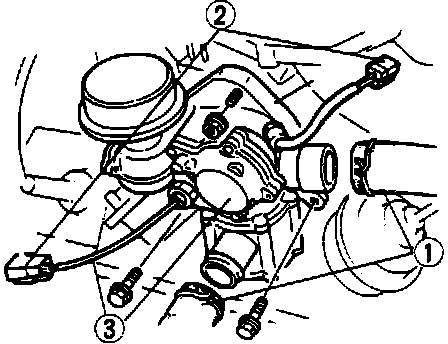

Air Control Valve Removal:

1. Remove the air hose (1).
2. Disconnect the split air solenoid valve and port air solenoid valve connector (2).
3. Remove the air control valve (3).
4. Install in the reverse order of removal.
