Computers and Control Systems

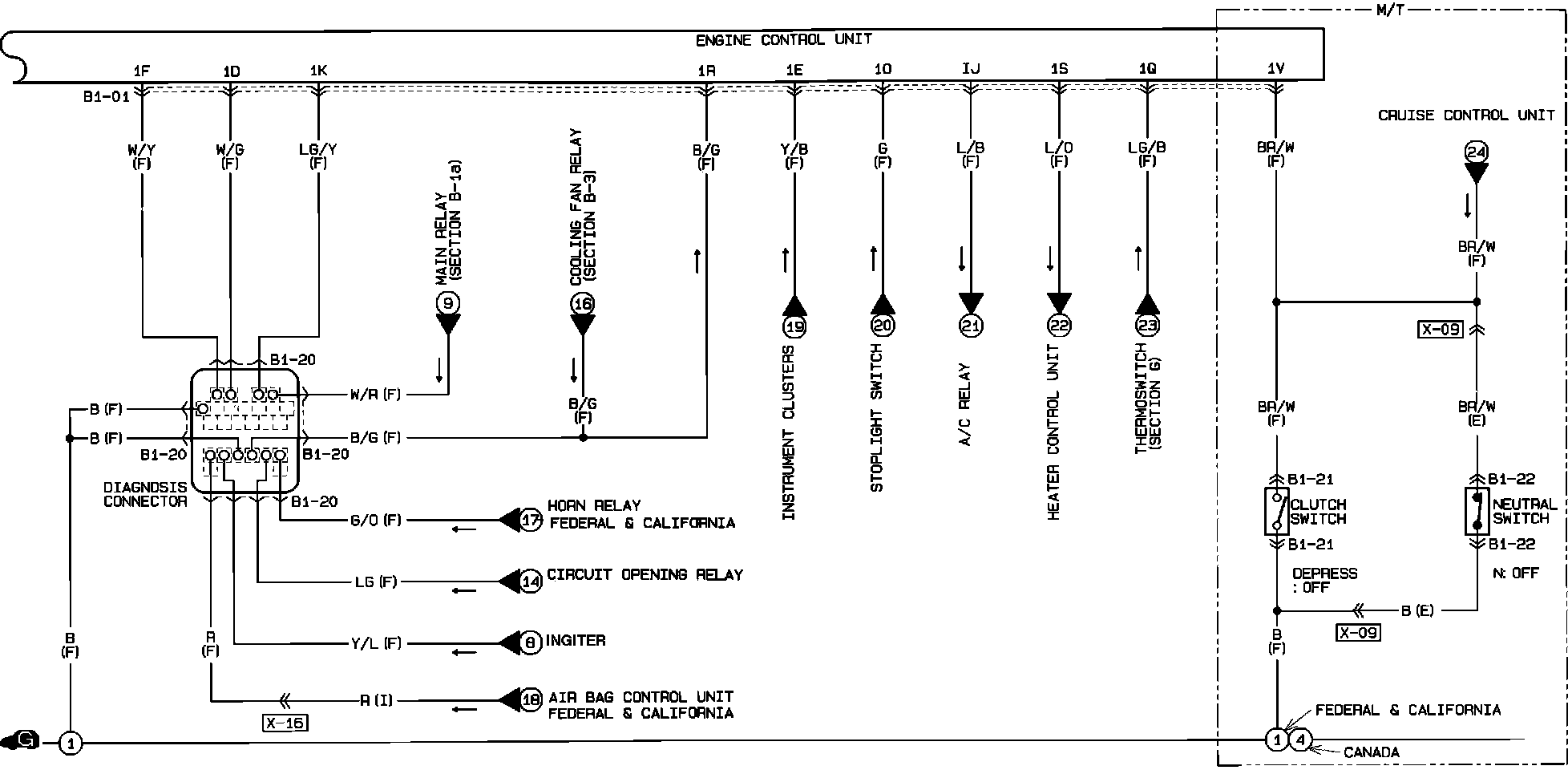

Engine Control And Ignition System:

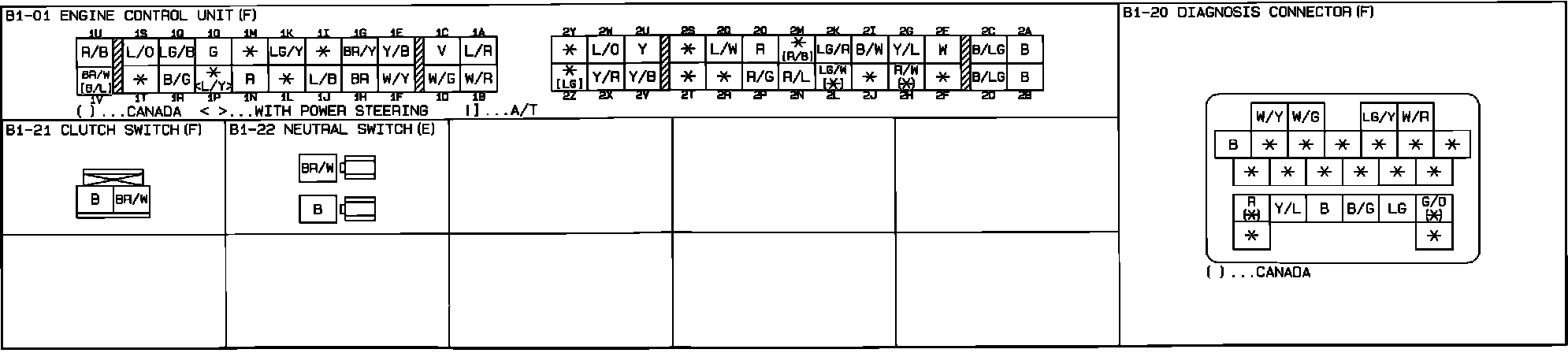

Engine Control And Ignition System. Connector Identification:

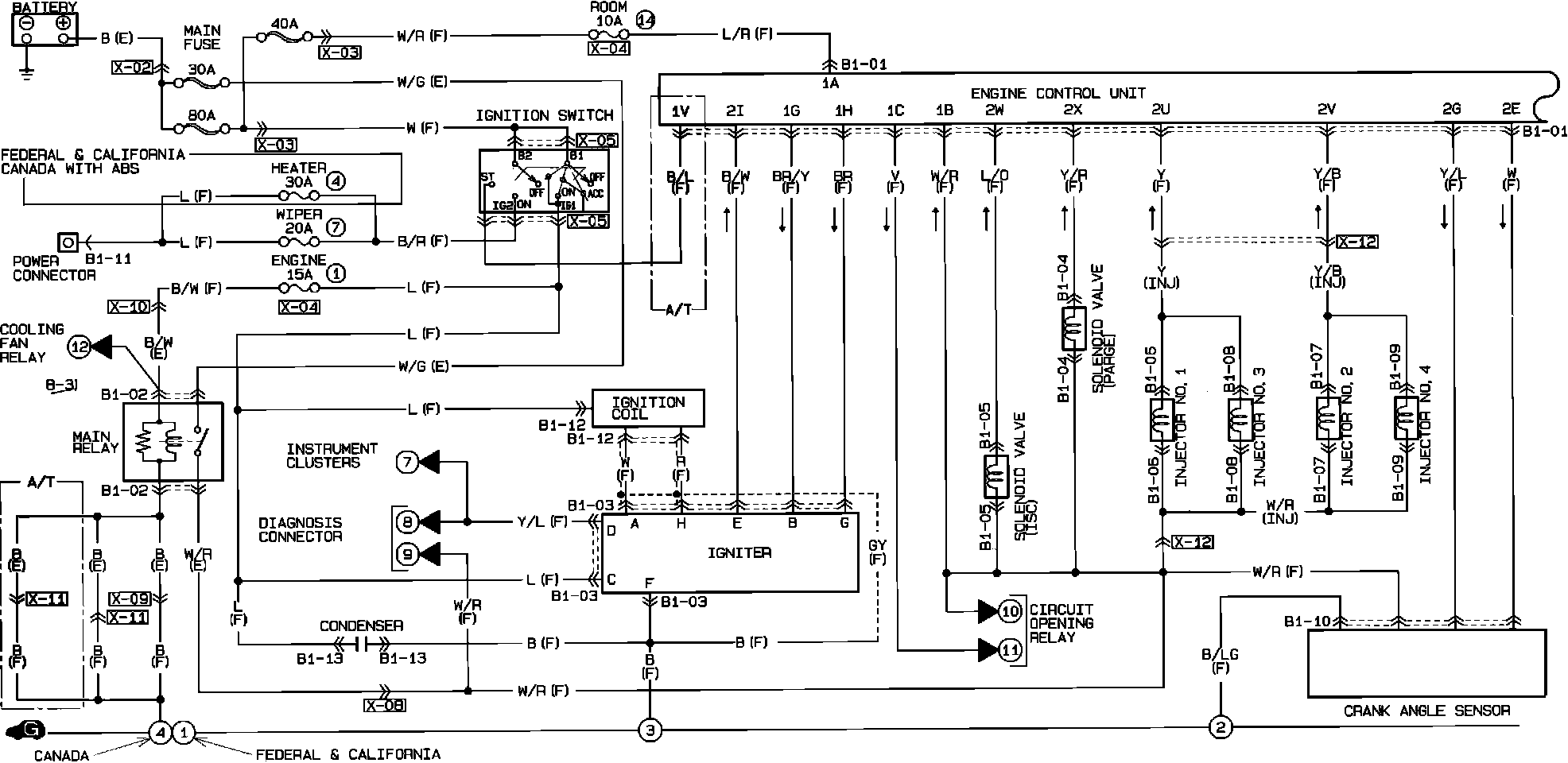

Engine Control System:

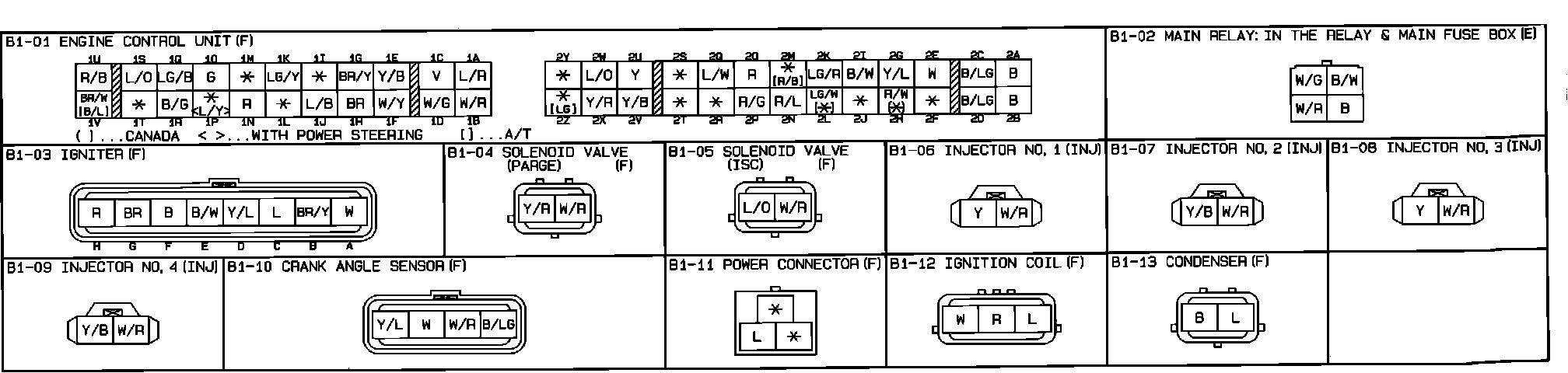

Engine Control System. Connector Identification:

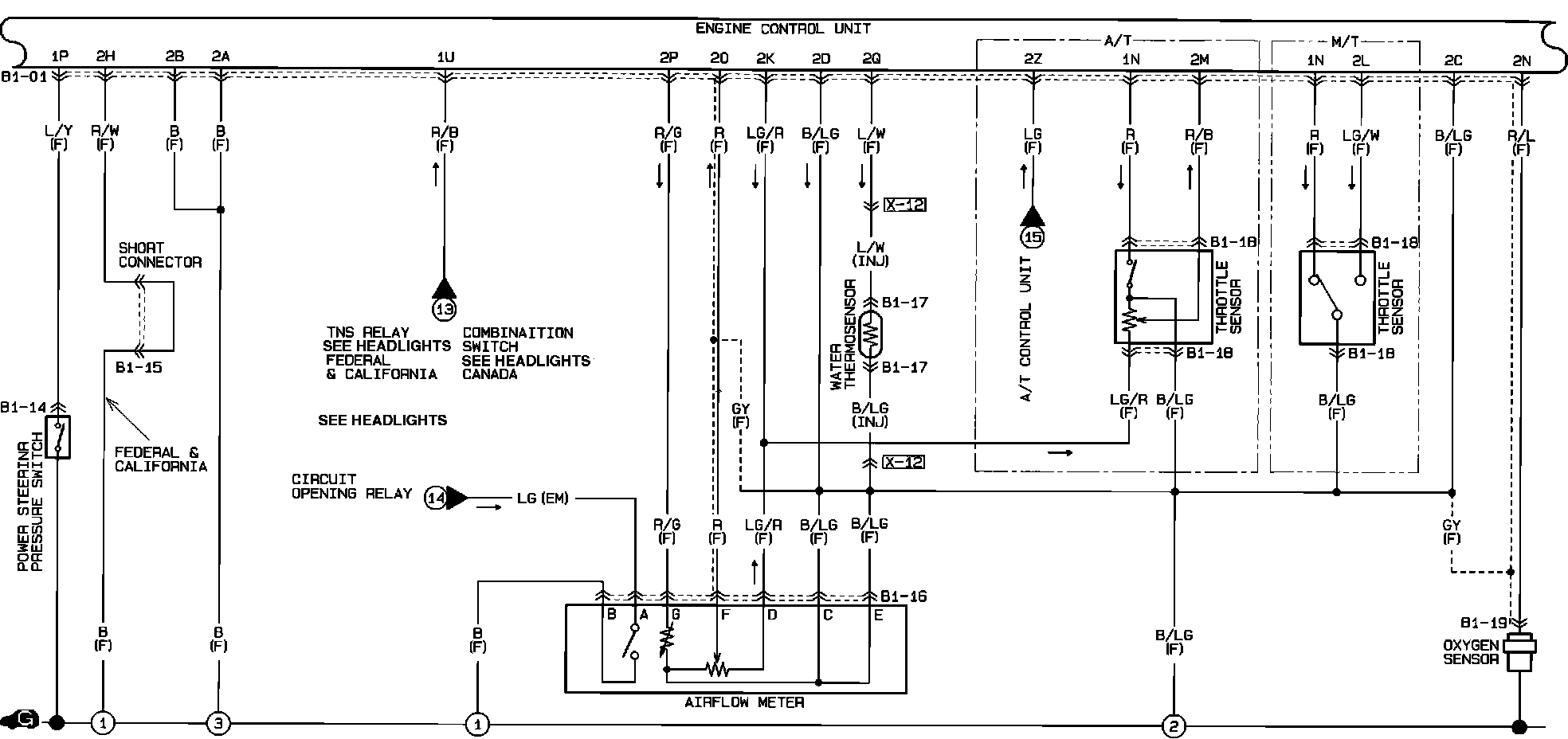

Engine Control System:





Engine Control System. Connector Identification:
