Air Conditioning Switch: Testing and Inspection

A/C Switch Testing:

1. Remove switch from dash if necessary.

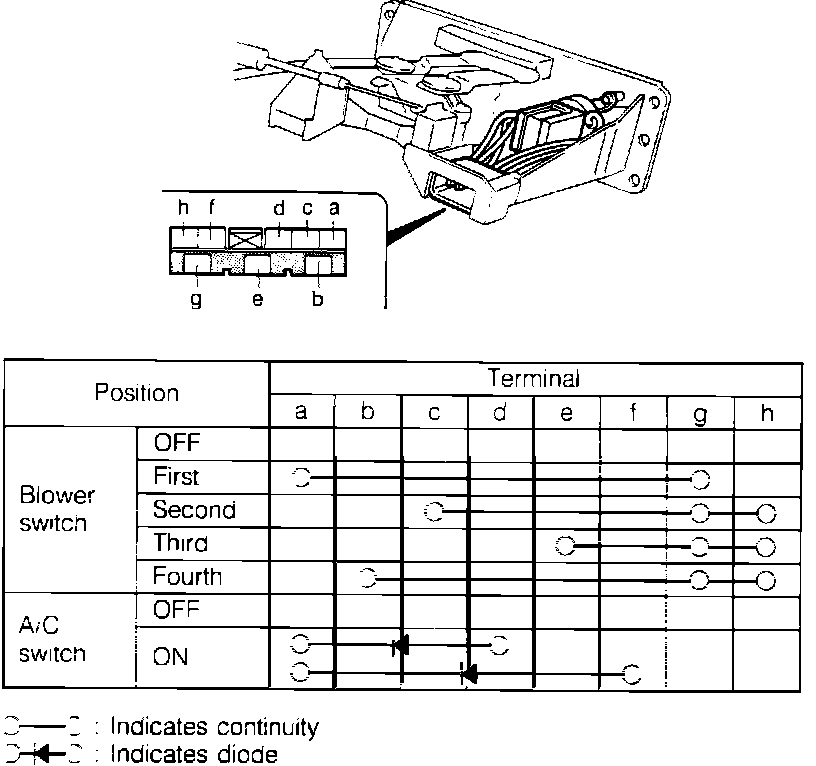

2. Check continuity between terminals as described on image chart.
3. If not as specified, replace switch.
